Track and swing drive piston motors Parts
Compare Track and swing drive piston motors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Flow rate GPM | Maximum output speed RPM | Old model code | Output torque LBF-IN | Output torque Nm |
|---|---|---|---|---|---|
| 1102027770X | 19.81 | 803 | JMF048RR0204010211900A00A | 31597.0 | 3570.0 |
| 11020277101 | — | — | — | — | — |
| 11020277100 | — | — | — | — | — |
| 1102027680S | — | — | — | — | — |
| 11020276301 | — | — | — | — | — |
| 1102027620X | 21.13 | 88 | JMF048RR0211010211900A | 23896.9 | 2700.0 |
| 11020276201 | 9.67 | 1133 | JMF151RR0404010211704 | 980.7 | 110.8 |
| 11020274101 | 21.79 | 99 | JMF043RR0215010201952A00A | 27162.8 | 3069.0 |
| 1102027300S | 21.79 | 99 | JMF043RR0203010201900A00A | 26525.5 | 2997.0 |
| 11020272501 | 19.55 | 81 | JMF047RR0205010011900A00A | 28940.9 | 3269.9 |
| 11020271301 | — | — | — | — | — |
| 11020271001 | 76.61 | 1160 | JMF250PS0605010500000A00A | 8635.6 | 975.7 |
| 11020270701 | 76.61 | 1160 | JMF250PS0617010100050A00A | 9842.0 | 1112.0 |
| 11020270501 | 76.61 | 1160 | JMF250PS0612010100000A01A | 9321.6 | 1053.2 |
| 11020269801 | 76.08 | 1152 | JMF250PS0606010500000A00A | 9319.8 | 1053.0 |
| 11020268901 | 58.12 | 1456 | JMF151RR0404010511700A00A | 5005.1 | 565.5 |
| 11020268501 | 58.12 | 83 | JMF151RR0404010211700A00A | 88294.6 | 9976.0 |
| 11020268201 | 76.61 | 1160 | JMF250PS | 8635.6 | 975.7 |

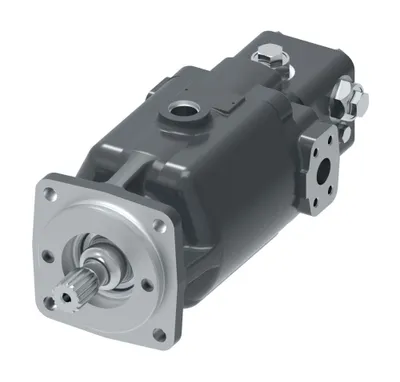

| 11020268101 | 76.61 | 1160 | JMF250 | 8635.6 | 975.7 |
| 11020268001 | 66.04 | 1285 | JMF195PS0506010310000A00A | 7388.6 | 834.8 |
| 11020267901 | 15.85 | 1395 | JMF043PS | 1188.6 | 134.3 |
| 11020267801 | 76.61 | 1160 | JMF250PS | 8635.6 | 975.7 |
| 11020267301 | 76.61 | 1160 | JMF250PS0606010510000B00A | 8635.6 | 975.7 |
| 11020267101 | 10.57 | 139 | JMF029PS0102010100000B00A | 876.2 | 99.0 |
