Fiber Optic Sensors Parts
Browse Subcategories
Compare Fiber Optic Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Version | Ambient temperature | Active surface, fibers | Active surface, fiber arrangement |
|---|---|---|---|---|---|

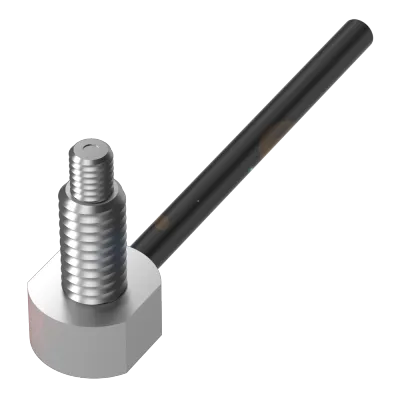

| BFO00AW | BFO D22-LAH-BK-EAK-10-02 | M4, 90° conn., flex. cable | -40...70 °C | Ø 1.0 mm | Single fiber |

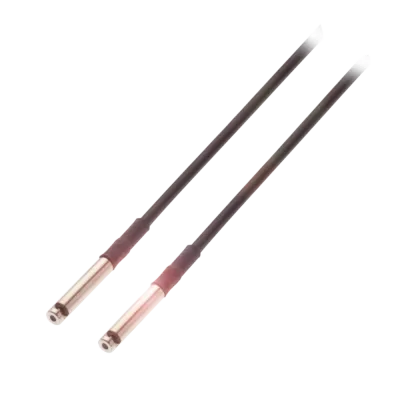

| BFO00AY | BFO D22-LAT-YB-EAK-10-0,5 | Ø 3, 90° optics, high temperature | -55...115 °C | Ø 1.0 mm | Single fiber |

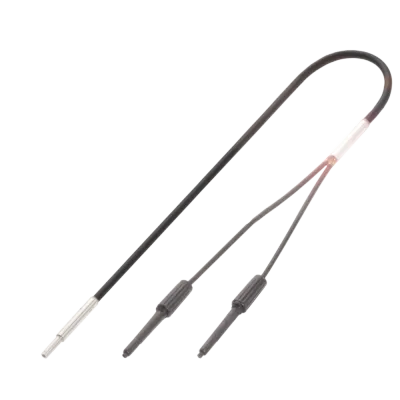

| BFO00AT | BFO D13-XB-AB-EAK-10-01 | Ø 2.5, coax optics | -55...70 °C | Ø 0.5 mm Ø 0.25 mm (9x) | Ring around individual fiber |

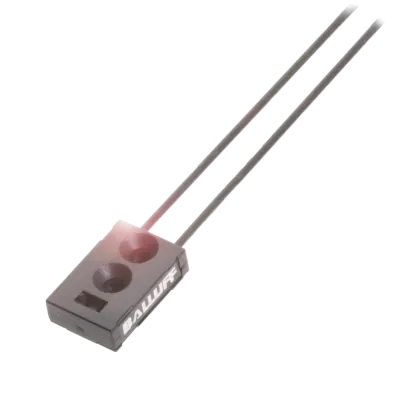

| BFO00AR | BFO D13-XV-AK-EAK-50-02 | 13x19.7, 90° optics | -55...70 °C | Ø 0.5 mm (2x) | Distance |

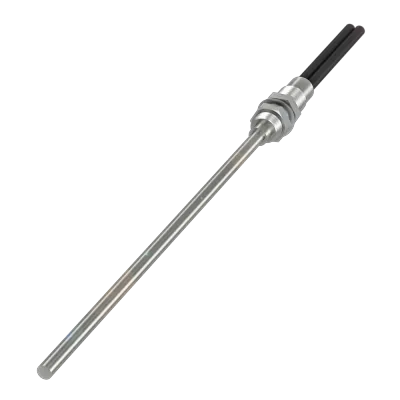

| BFO0004 | BFO D22-XA-SB-EAK-20-02 | M6, thin tip, standard | -55...70 °C | Ø 1.0 mm (2x) | Adjacent to one another |

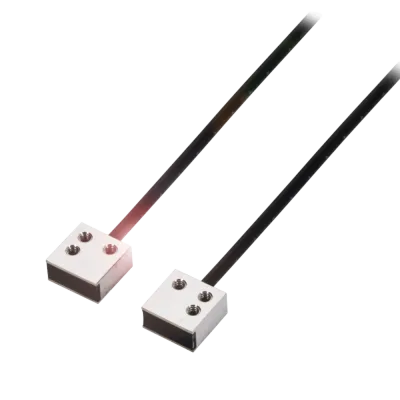

| BFO00AP | BFO D22-LA-GD-EAK-52-02 | 5x10, light grid | -55...70 °C | Ø 0.25 mm (16x) | Row |

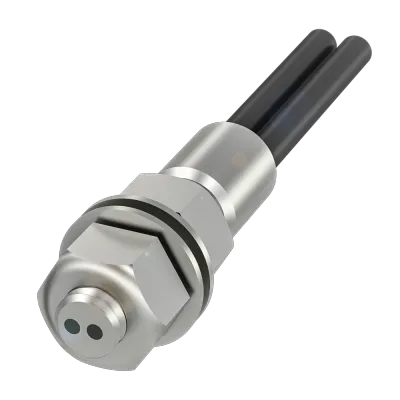

| BFO0005 | BFO D22-XA-UB-EAK-20-02 | M4, standard | -55...70 °C | Ø 1.0 mm (2x) | Adjacent to one another |

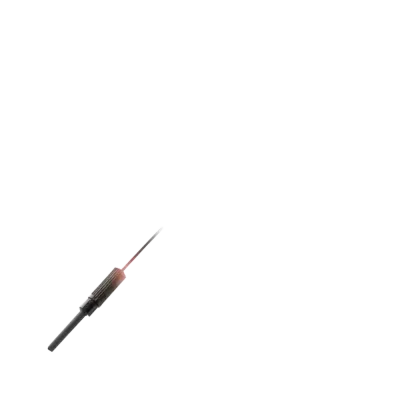

| BAM000J | BFO D10-LA-DC-10 | Clamping sleeve for Ø 1.0 mm | — | — | — |

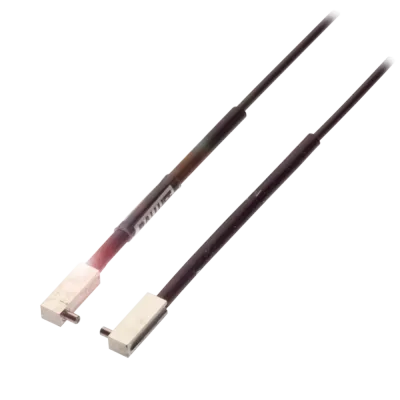

| BFO000E | BFO D22-LAH-ZB-EAK-10-02 | 4x20, 90° optics | -40...70 °C | Ø 1.0 mm | Single fiber |

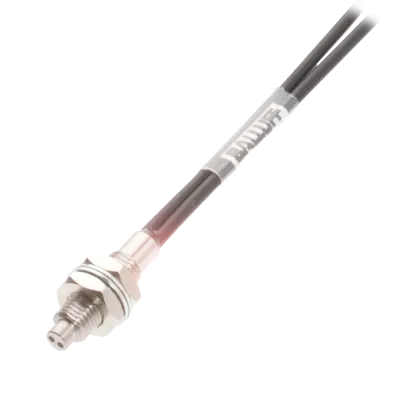

| BFO0063 | BFO D22-XAH-LB-EAK-20-02 | M6, standard, flexible cable | -40...70 °C | Ø 1.0 mm (2x) | Adjacent to one another |

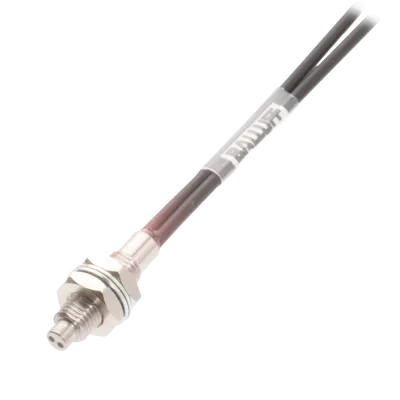

| BFO0061 | BFO D22-XA-LB-EAK-20-02 | M6, standard | -55...70 °C | Ø 1.0 mm (2x) | Adjacent to one another |
| BFO0055 | BFO D10-XAH-KB-EAK-10-02 | M4, standard | -40...70 °C | Ø 0.5 mm (2x) | Adjacent to one another |

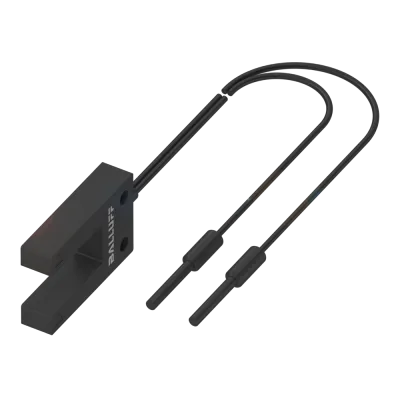

| BFO0059 | BFO D13-LG-10-EAK-30-02 | Fork, coaxial optics | -55...70 °C | Ø 0.25 mm (2x) | opposing |
| BFO0058 | BFO D13-LG-05-EAK-30-02 | Fork, coaxial optics | -55...70 °C | Ø 0.25 mm (2x) | opposing |

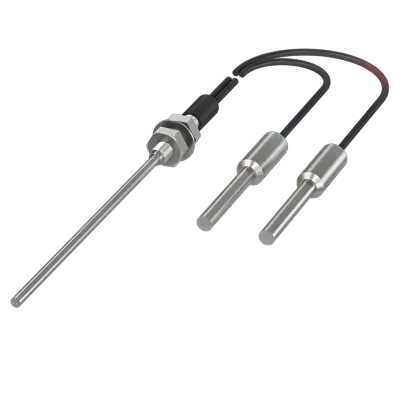

| BFO0052 | BFO D10-XA-GB-EAK-10-02 | M3, bendable tip | -55...70 °C | Ø 0.5 mm (2x) | Adjacent to one another |

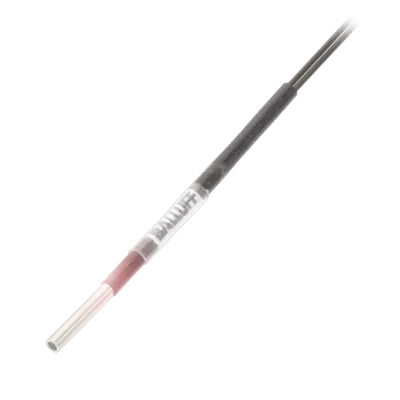

| BFO005A | BFO D13-XA-JB-EAK-20-02 | Ø 3, Standard | -55...70 °C | Ø 0.5 mm (2x) | Adjacent to one another |

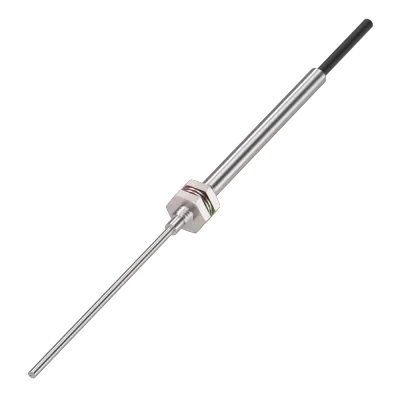

| BFO005N | BFO D22-LA-NB-EAK-10-02 | M4, bendable tip | -55...70 °C | Ø 1.0 mm | Single fiber |

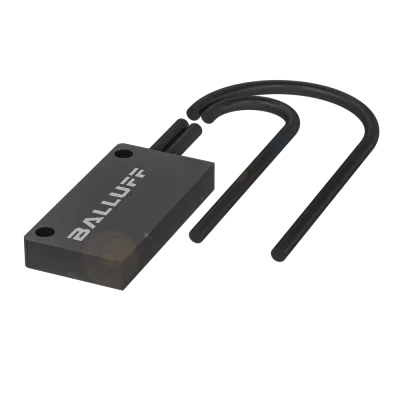

| BFO0060 | BFO D22-XA-ED-EAK-250-02 | 5.5x38, 90°-light grid | -55...70 °C | Ø 0.25 mm (32x) | Row |

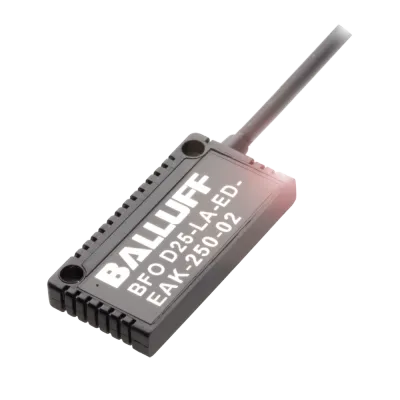

| BFO0068 | BFO D25-LA-ED-EAK-250-02 | 5.5x38, 90°-light grid | -55...70 °C | Ø 0.25 mm (32x) | Row |

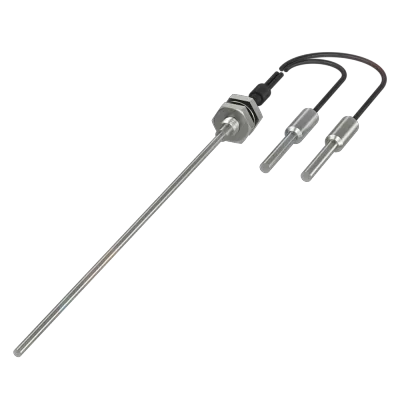

| BFO0053 | BFO D10-XA-HB-EAK-10-02 | M4, bendable tip | -55...70 °C | Ø 0.5 mm (2x) | Adjacent to one another |

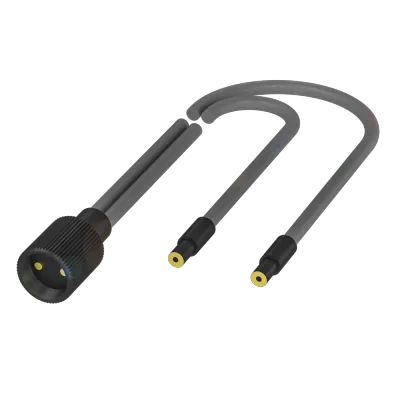

| BFO0046 | BFO 18V-LCC-SMG-23-3 | Ø 6, standard | -40...150 °C | Bundle Ø 2.1 mm | Homogeneous bundle |

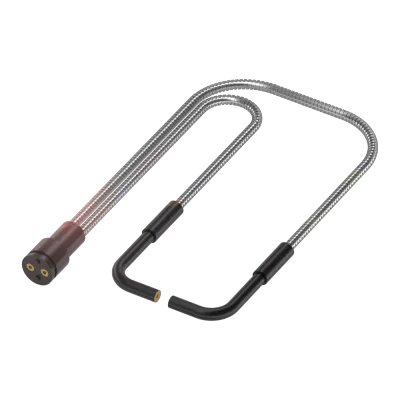

| BFO004A | BFO 18V-LDD-MZG-23-3 | Ø 6, 90° optics | -20...250 °C | Bundle Ø 2.1 mm | Homogeneous bundle |

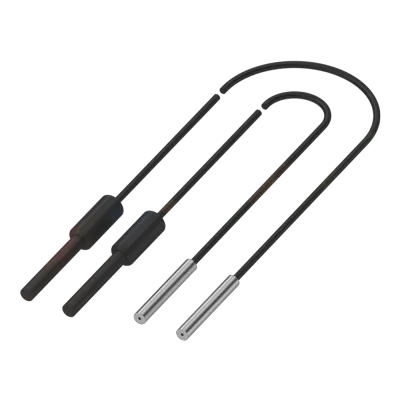

| BFO0051 | BFO D10-LA-CB-EAK-05-02 | Ø 2, standard | -55...70 °C | Ø 0.5 mm | Single fiber |

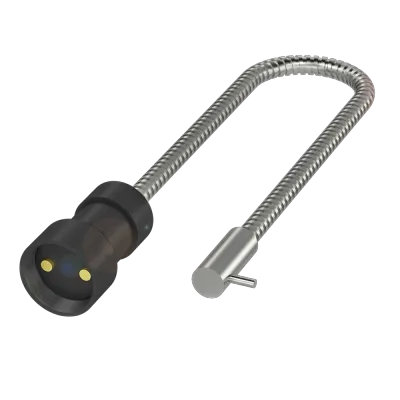

| BFO003L | BFO 18A-XAF-MZG-15-2 | Ø 2, 90° optics | -20...250 °C | Bundle Ø 1.4 mm | Segmented bundle |
Common to all listed parts
| Product group | Fiber optic sensors |
| ECLASS 14.0 | 27-27-36-06 |
| ETIM 9.0 | EC002594 |
| UNSPSC 11 | 41112103 |
