Amplifier Separate Type Photoelectric Sensor Parts
Compare Amplifier Separate Type Photoelectric Sensor
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code | Model | Type | Detecting distance - TURBO | Detecting distance - FINE |
|---|---|---|---|---|---|
| OP-87199 | OP-87199 | OP-87199 | — | — | — |

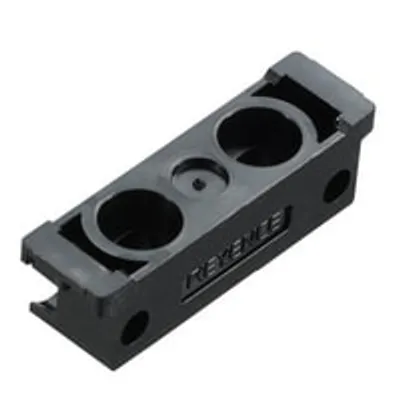

| OP-73880 | OP-73880 | OP-73880 | — | — | — |

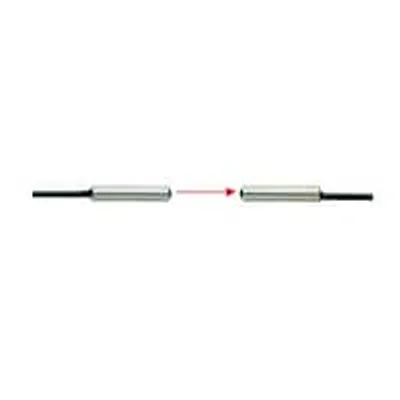

| PS-58 | PS-58 | PS-58*1 | Cylindrical, Thrubeam | - | 700 mm 27.56" |

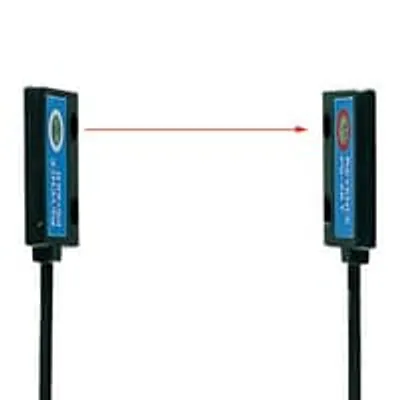

| PS-56 | PS-56 | PS-56*1 | Thin, small, Thrubeam | - | 300 mm 11.81" |

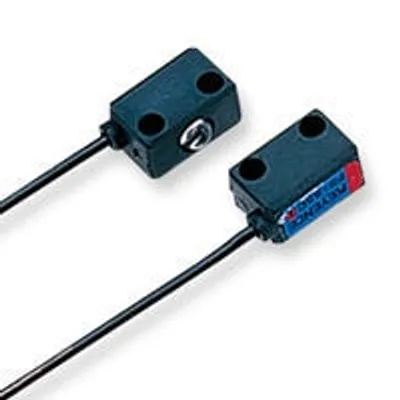

| PS-55C | PS-55C | PS-55C*1 | Long-range, Thrubeam | 4,000 mm 157.48"*2 | 2,000 mm 78.74" |

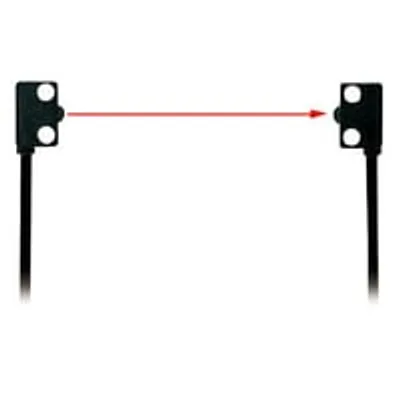

| PS-55 | PS-55 | PS-55*1 | Long-range, Thrubeam | 4,000 mm 157.48"*2 | 2,000 mm 78.74" |

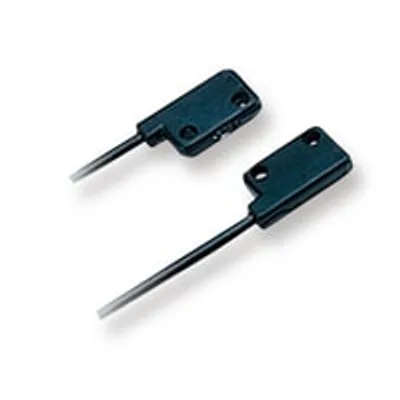

| PS-52C | PS-52C | PS-52C*1 | Thin, small, Thrubeam | 600 mm 23.62"*2 | 300 mm 11.81" |

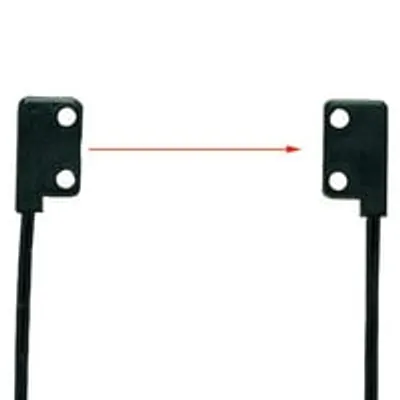

| PS-52 | PS-52 | PS-52*1 | Thin, small, Thrubeam | 600 mm 23.62"*2 | 300 mm 11.81" |

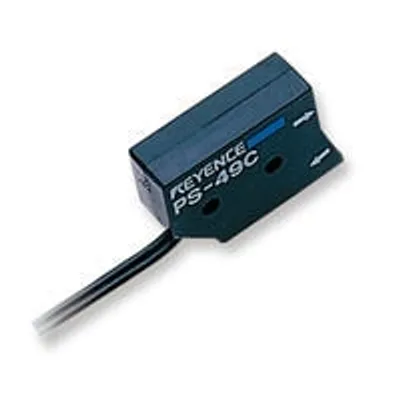

| PS-49C | PS-49C | PS-49C*1 | Definite reflective | - | 32 to 53 mm 1.26" to 2.09" |

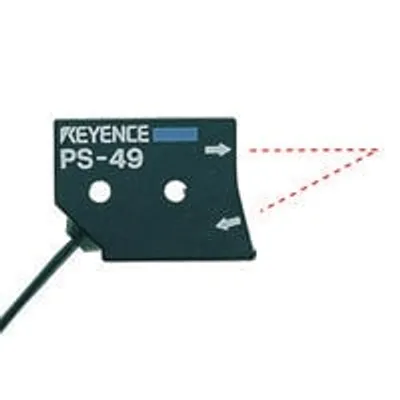

| PS-49 | PS-49 | PS-49*1 | Definite reflective | - | 32 to 53 mm 1.26" to 2.09" |

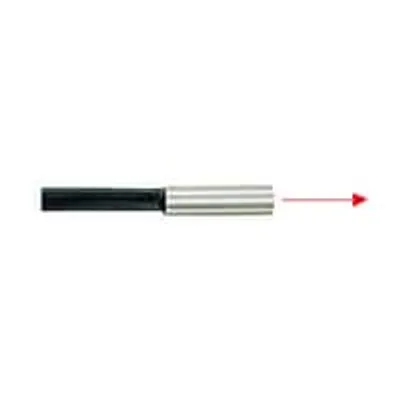

| PS-48 | PS-48 | PS-48*1 | Cylindrical, Reflective | - | 25 mm 0.98" |

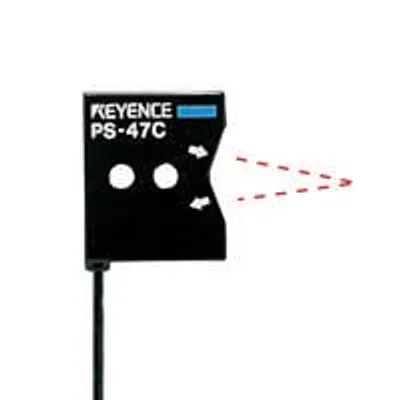

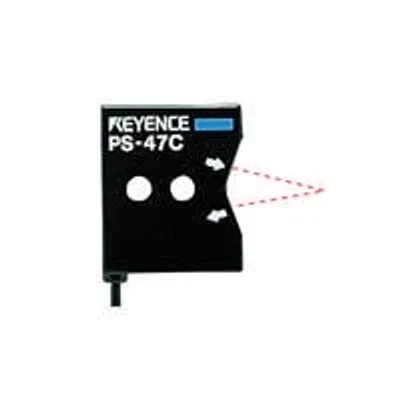

| PS-47C | PS-47C | PS-47C*1 | Definite reflective | - | 10 ± 4 mm 0.39" ±0.16" |
| PS-47 | PS-47 | PS-47*1 | Definite reflective | - | 10 ± 4 mm 0.39" ±0.16" |

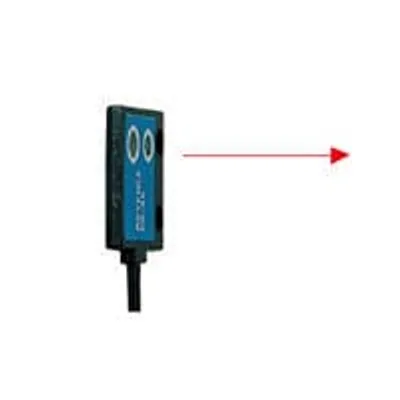

| PS-46 | PS-46 | PS-46*1 | Thin, small, Reflective | - | 100 mm 3.94" |

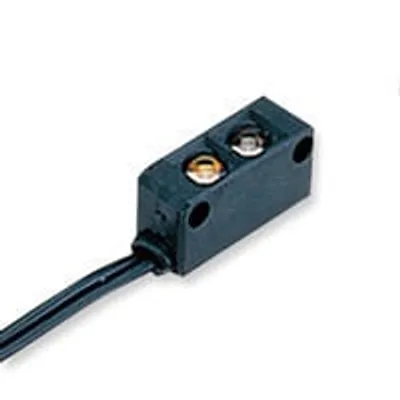

| PS-45 | PS-45 | PS-45*1 | Long-range, Reflective | 400 mm*2 | 200 mm 7.87" |

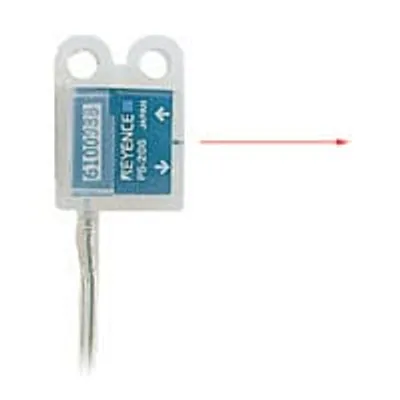

| PS-206 | PS-206 | PS-206*1 | Teflon®-sheathed, Reflective | - | 70 mm 2.76" |

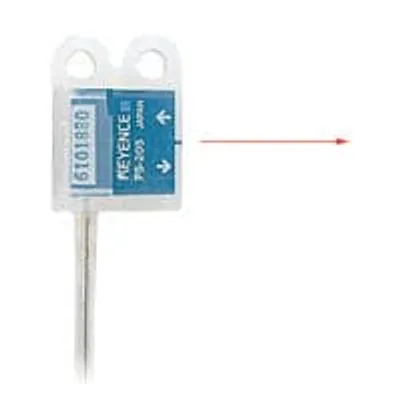

| PS-205 | PS-205 | PS-205*1 | Teflon®-sheathed, Reflective | 400 mm 15.75"*2 | 200 mm 7.87" |

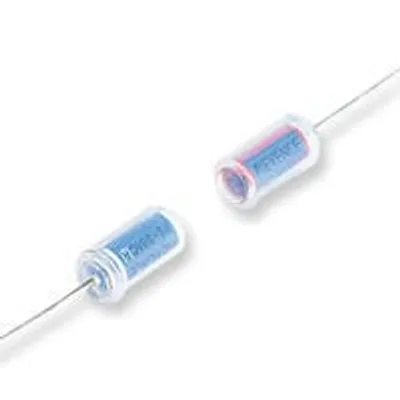

| PS-202 | PS-202 | PS-202*1 | Teflon®-sheathed, Thrubeam | 1,000 mm*2 | 500 mm 19.69" |
| PS-201C | PS-201C | PS-201C*1 | Teflon®-sheathed, Thrubeam | 4,000 mm 157.48"*2 | 2,000 mm 78.74" |
| PS-201 | PS-201 | PS-201*1 | Teflon®-sheathed, Thrubeam | 4,000 mm 157.48"*2 | 2,000 mm 78.74" |

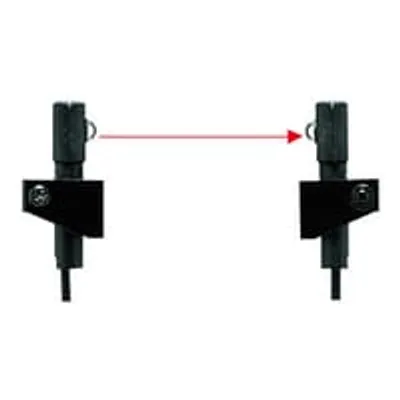

| PS-05 | PS-05 | PS-05*1 | Free-positioning, Thrubeam | 4,000 mm 157.48"*2 | 2,000 mm 78.74" |

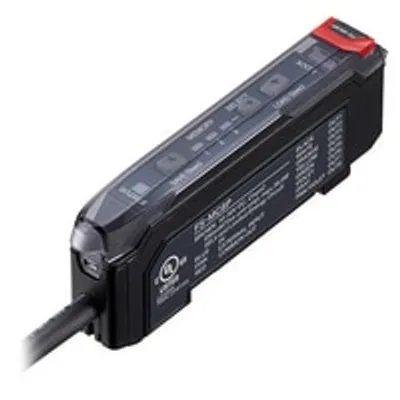

| FS-MC8P | FS-MC8P | FS-MC8P | — | — | — |

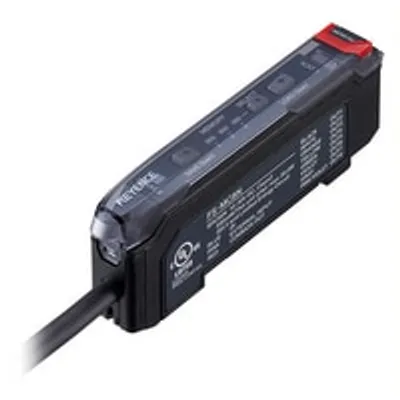

| FS-MC8N | FS-MC8N | FS-MC8N | — | — | — |

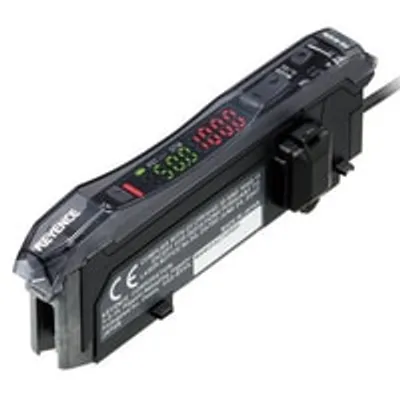

| PS-N12P | PS-N12P | PS-N12P | Cable | — | — |
Common to all listed parts
| Series Title | Amplifier Separate Type Photoelectric Sensor |
| Series Code | PS-N series |
