NewPNOZmulti 2 - safe I/O modules Parts
New
New
Compare PNOZmulti 2 - safe I/O modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Net weight | Gross weight | GTIN | Potential isolation 1 between |
|---|---|---|---|---|---|
| 772140 | 772140 | 95 g | 105 g | 4046548069655 | — |
| 772142 | 772142 | 105 g | 115 g | 4046548069402 | HL-Ausgang und Systemspannung |
| 772146 | 772146 | 144 g | 153 g | 4046548103649 | RL output and system voltage |
| 772145 | 772145 | 185 g | 200 g | 4046548069587 | RL output and system voltage |

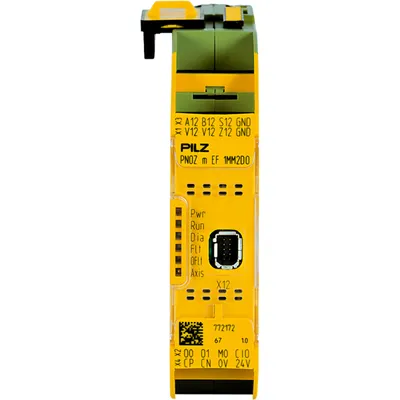

| 772172 | 772172 | 131 g | 141 g | 4046548070651 | Sensor und Systemspannung |

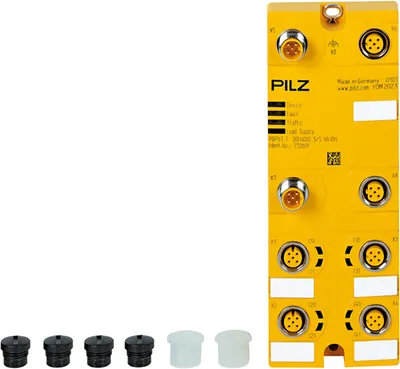

| 772601 | 772601 | 315 g | 332 g | 4046548105391 | Eingang und int. Busspannung |
| 772600 | 772600 | 315 g | 332 g | 4046548105384 | Eingang und int. Busspannung |
| 772611 | 772611 | 315 g | 332 g | 4046548105414 | Eingang und int. Busspannung |
| 772610 | 772610 | 315 g | 332 g | 4046548105407 | Eingang und int. Busspannung |

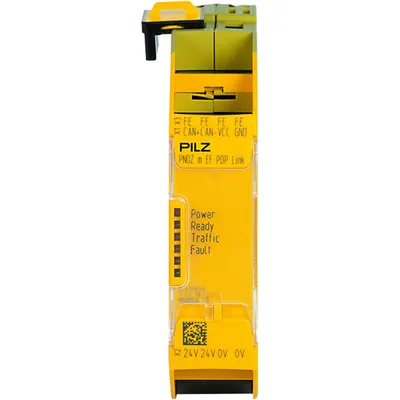

| 772121 | 772121 | 96 g | 117 g | 4046548069686 | Modul und Systemspannung |
| 772120 | 772120 | 91 g | 113 g | 4046548069693 | Modul und Versorgungsspannung |

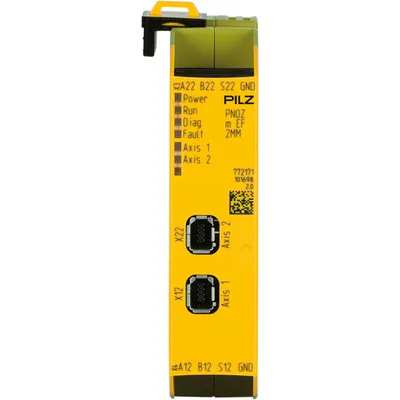

| 772171 | 772171 | 120 g | 130 g | 4046548069617 | Sensor und Systemspannung |
| 772170 | 772170 | 90 g | 100 g | 4046548069600 | Sensor und Systemspannung |
| 772144 | 772144 | 105 g | 115 g | 4046548069648 | 2pole SCO & system voltage |
| 772143 | 772143 | 190 g | 205 g | 4046548069631 | RL-Ausgang und Systemspannung |
| 772142 | 772142 | 105 g | 115 g | 4046548069402 | HL-Ausgang und Systemspannung |
| 772160 | 772160 | 108 g | 117 g | 4046548069624 | Sensor and system voltage |
| 772140 | 772140 | 95 g | 105 g | 4046548069655 | — |
Common to all listed parts
| Lifecycle | Active (current Pilz product) |
| Ambient temperature standard | EN 60068-2-14 |
| Storage temperature standard | EN 60068-2-1/-2 |
| Perm. operating height ASL | 2000 m |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
