Pressure sensitive mats monitoring Parts
Compare Pressure sensitive mats monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Connection terminal | Height dimension | Net weight | GTIN |
|---|---|---|---|---|---|
| 784180 | 784180 | Spring-loaded terminal | 101 mm | 125 g | 4046548008838 |
| 784181 | 784181 | Spring-loaded terminal | 101 mm | 125 g | 4046548008821 |

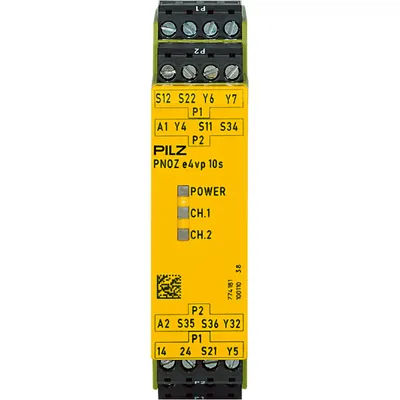

| 774181 | 774181 | Screw terminal | 94 mm | 130 g | 4046548011821 |
| 774180 | 774180 | Screw terminal | 94 mm | 125 g | 4046548011838 |
Common to all listed parts
| Lifecycle | Active (current Pilz product) |
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Max. device circuit breaker | 6 A slow / 10 A quick |
| Safety mat resistance | 150 Ohm |
| Utilisation cat. to EN 60947-1 | DC-12 |
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -10 … 55 °C |
