Compare Two-hand monitoring
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Type of two-hand device | Connection terminal | Height dimension | GTIN |
|---|

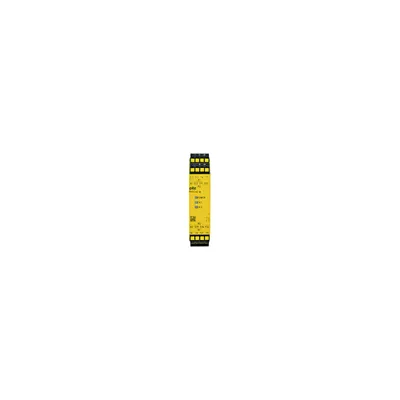

| 784136 | 784136 | III C | Spring-loaded terminal | 101 mm | 4046548008876 |

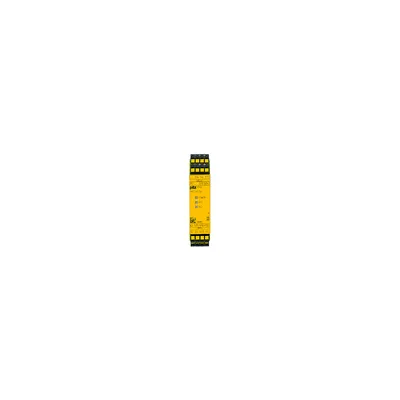

| 784135 | 784135 | III A | Spring-loaded terminal | 101 mm | 4046548008883 |

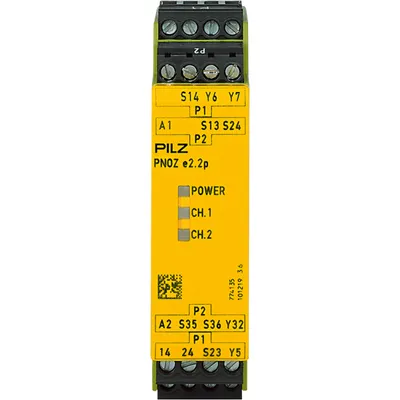

| 774135 | 774135 | III A | Screw terminal | 94 mm | 4046548011951 |

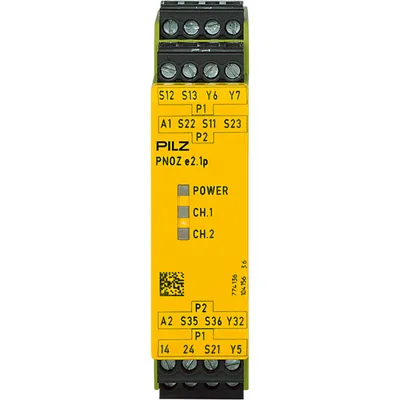

| 774136 | 774136 | III C | Screw terminal | 94 mm | 4046548011944 |
Common to all listed parts
| Lifecycle | Active (current Pilz product) |
| Supply voltage (V) | 24 V |
| Type of supply voltage U1 | DC |
| Max. device circuit breaker | 6 A slow / 10 A quick |
| Utilisation cat. to EN 60947-1 | DC-12 |
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature | -10 … 55 °C |
| Humidity rating | 93 % r. h. at 40 °C |
