Pressure sensitive mats monitoring Parts

Pilz

777077

PNOZ 16SP 240VAC 24VDC 2n/o

Pilz

774061

PNOZ 16 42VAC 24VDC 2n/o

Pilz

777076

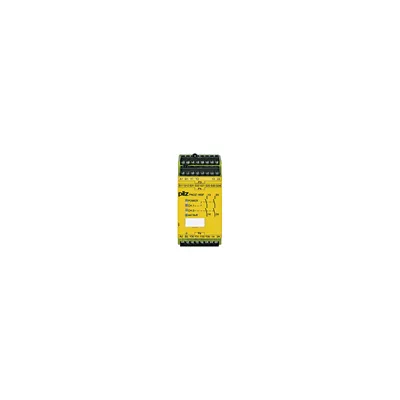

PNOZ 16SP 230VAC 24VDC 2n/o

Pilz

777070

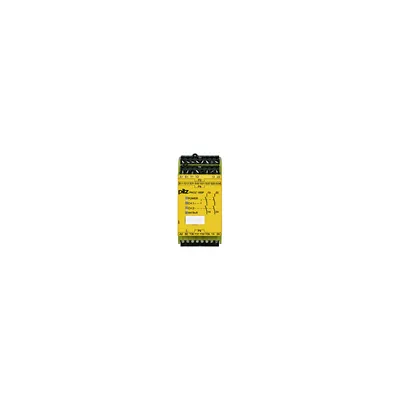

PNOZ 16SP 24VAC 24VDC 2n/o

Pilz

774070

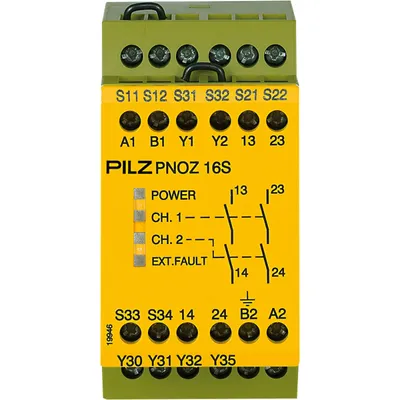

PNOZ 16S 24VAC 24VDC 2n/o 2so

Pilz

774073

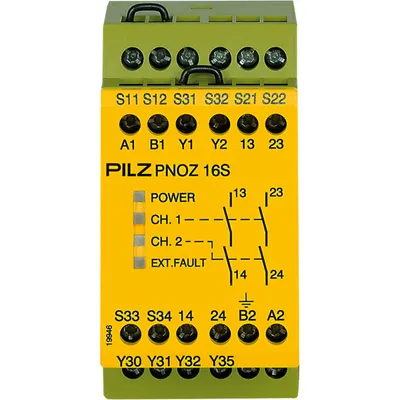

PNOZ 16S 110VAC 24VDC 2n/o 2so

Pilz

774066

PNOZ 16 230VAC 24VDC 2n/o

Pilz

774060

PNOZ 16 24VAC 24VDC 2n/o

Pilz

774076

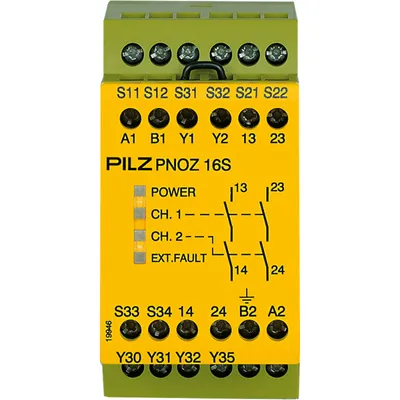

PNOZ 16S 230VAC 24VDC 2n/o 2so

Pilz

774063

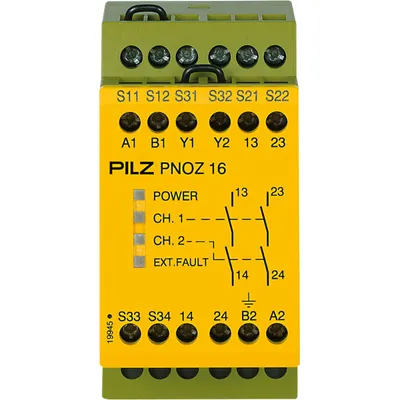

PNOZ 16 110VAC 24VDC 2n/o

Pilz

787077

PNOZ 16SP C 240VAC 24VDC 2n/o

Pilz

787076

PNOZ 16SP C 230VAC 24VDC 2n/o

Pilz

787075

PNOZ 16SP C 120VAC 24VDC 2n/o

Pilz

787074

PNOZ 16SP C 115VAC 24VDC 2n/o

Pilz

787073

PNOZ 16SP C 110VAC 24VDC 2n/o

Pilz

787072

PNOZ 16SP C 48VAC 24VDC 2n/o

Pilz

787071

PNOZ 16SP C 42VAC 24VDC 2n/o

Pilz

787070

PNOZ 16SP C 24VAC 24VDC 2n/o

Pilz

777075

PNOZ 16SP 120VAC 24VDC 2n/o

Pilz

777074

PNOZ 16SP 115VAC 24VDC 2n/o

Pilz

777073

PNOZ 16SP 110VAC 24VDC 2n/o

Pilz

777072

PNOZ 16SP 48VAC 24VDC 2n/o

Pilz

777071

PNOZ 16SP 42VAC 24VDC 2n/o

Pilz

774077

PNOZ 16S 240VAC 24VDC 2n/o 2so

Compare Pressure sensitive mats monitoring

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product ID (Pilz order number)	Supply voltage (V)	Number of semicond. outputs	Safety contacts: pilot duty	Height dimension
777077	777077	240 V	2	C300, R300	94 mm
774061	774061	42 V	0	C300, R300	87 mm
777076	777076	230 V	2	C300, R300	94 mm
777070	777070	24 V	2	C300, R300	94 mm
774070	774070	24 V	2	C300, R300	87 mm
774073	774073	110 V	2	C300, R300	87 mm
774066	774066	230 V	0	C300, R300	87 mm
774060	774060	24 V	0	C300, R300	87 mm
774076	774076	230 V	2	C300, R300	87 mm
774063	774063	110 V	0	C300, R300	87 mm
787077	787077	240 V	2	R300, C300	101 mm
787076	787076	230 V	2	R300, C300	101 mm
787075	787075	120 V	2	R300, C300	101 mm
787074	787074	115 V	2	R300, C300	101 mm
787073	787073	110 V	2	R300, C300	101 mm
787072	787072	48 V	2	R300, C300	101 mm
787071	787071	42 V	2	R300, C300	101 mm
787070	787070	24 V	2	R300, C300	101 mm
777075	777075	120 V	2	C300, R300	94 mm
777074	777074	115 V	2	R300, C300	94 mm
777073	777073	110 V	2	C300, R300	94 mm
777072	777072	48 V	2	R300, C300	94 mm
777071	777071	42 V	2	R300, C300	94 mm
774077	774077	240 V	2	R300, C300	87 mm

Common to all listed parts

Type of supply voltage U1	AC
Power consumption AC	3.5 VA
Supply voltage U2	24 V
Type of supply voltage U2	DC
Number of inputs	2
Safety mat resistance	80 Ohm
Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
