Contact expansions Parts

Pilz

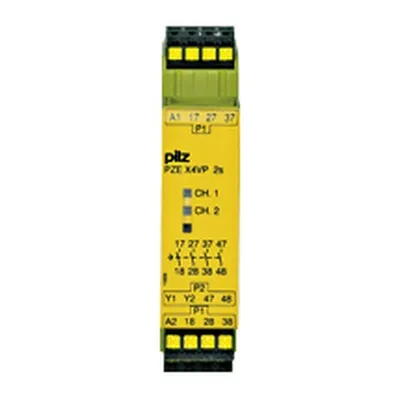

787582

PZE X4VP C 2/24VDC 4n/o fix

Pilz

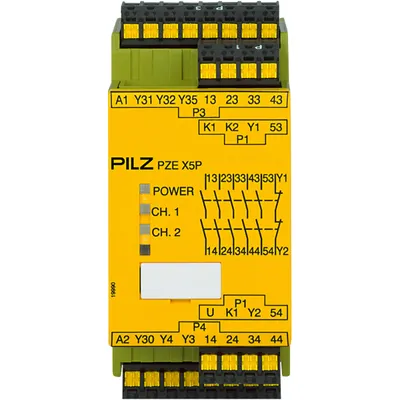

787150

PZE X5P C 24VDC 5n/o 2so

Pilz

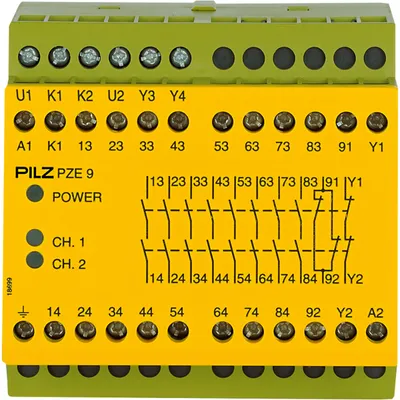

774142

PZE 9 48VAC 8n/o 1n/c

Pilz

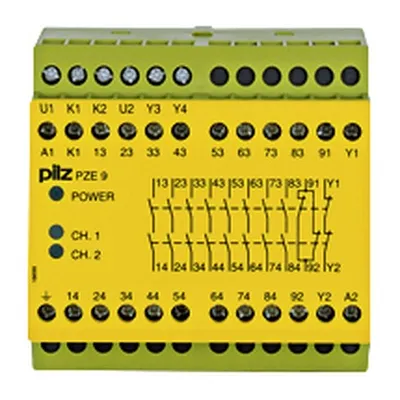

774141

PZE 9 42VAC 8n/o 1n/c

Pilz

774140

PZE 9 24VAC 8n/o 1n/c

Pilz

787585

PZE X4P C 24VDC 4n/o

Pilz

787584

PZE X4VP8 C 24VDC 4n/o

Pilz

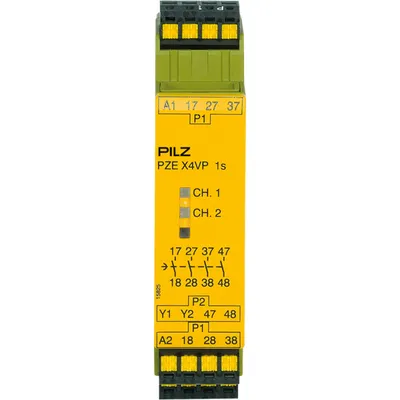

787581

PZE X4VP C 1/24VDC 4n/o fix

Pilz

787140

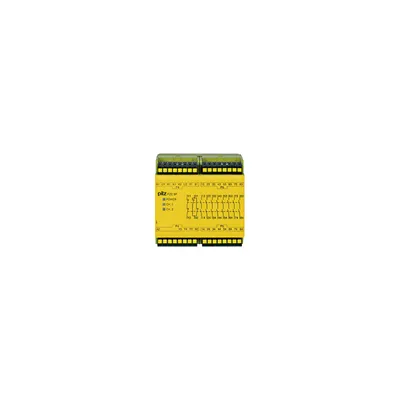

PZE 9P C 24VACDC 8n/o 1n/c

Pilz

787148

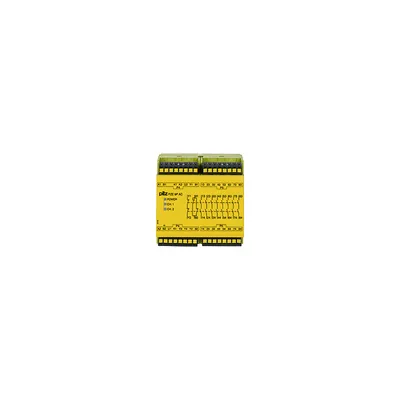

PZE 9P C 24VACDC 24-240VACDC 8n/o 1n/c

Pilz

777586

PZE X4VP4 24VDC 4n/o

Pilz

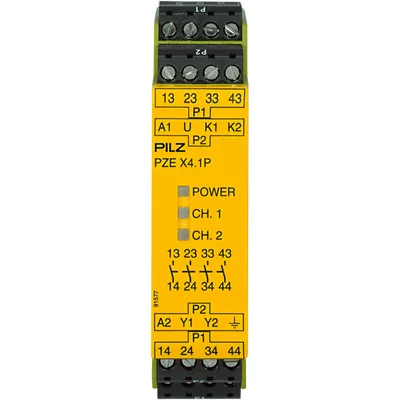

777588

PZE X4.1P 24-240VAC/DC 4n/o

Pilz

777587

PZE X4.1P 24VDC 4n/o

Pilz

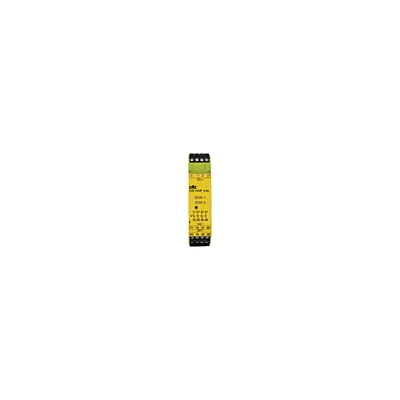

777580

PZE X4VP 0,5/24VDC 4n/o fix

Pilz

777581

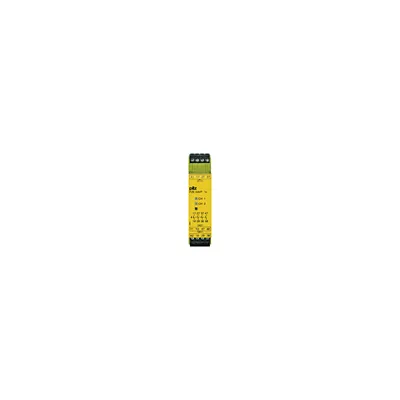

PZE X4VP 1/24VDC 4n/o fix

Pilz

777582

PZE X4VP 2/24VDC 4n/o fix

Pilz

777583

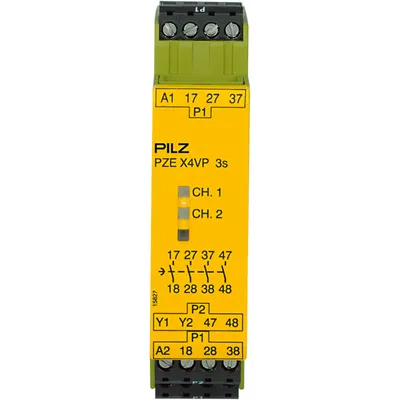

PZE X4VP 3/24VDC 4n/o fix

Pilz

777584

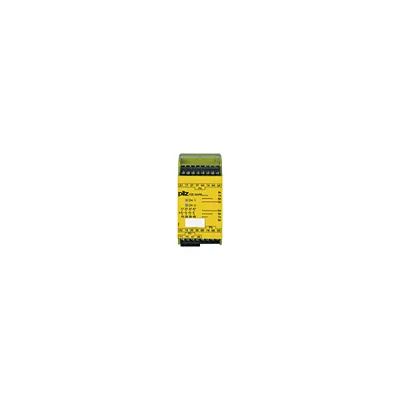

PZE X4VP8 24VDC 4n/o

Pilz

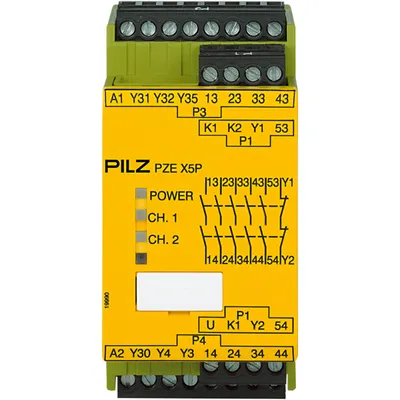

777150

PZE X5P 24VDC 5n/o 2so

Pilz

777140

PZE 9P 24VACDC 8n/o 1n/c

Pilz

787588

PZE X4.1P C 24-240VAC/DC 4n/o

Pilz

787586

PZE X4VP4 C 24VDC 4n/o

Pilz

787587

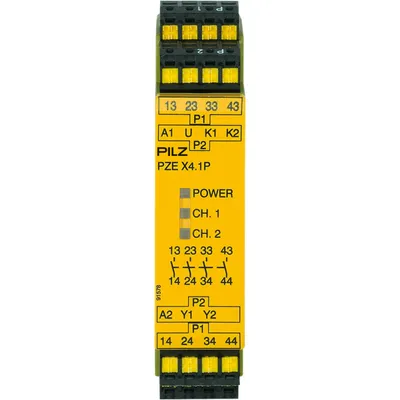

PZE X4.1P C 24VDC 4n/o

Pilz

787580

PZE X4VP C 0,5/24VDC 4n/o fix

Compare Contact expansions

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product ID (Pilz order number)	Net weight	Gross weight	GTIN	Volume
787582	787582	205 g	215 g	4046548008111	0.272 dm3
787150	787150	260 g	270 g	4046548008609	0.600 dm3
774142	774142	600 g	610 g	4046548011883	1.023 dm3
774141	774141	600 g	610 g	4046548011890	1.023 dm3
774140	774140	600 g	610 g	4046548011906	1.023 dm3
787585	787585	170 g	180 g	4046548008081	0.301 dm3
787584	787584	320 g	330 g	4046548008098	0.272 dm3
787581	787581	190 g	200 g	4046548008128	0.327 dm3
787140	787140	430 g	440 g	4046548008623	0.969 dm3
787148	787148	455 g	465 g	4046548008616	0.969 dm3
777586	777586	300 g	310 g	4046548009323	0.270 dm3
777588	777588	215 g	225 g	4046548009309	0.285 dm3
777587	777587	185 g	195 g	4046548009316	0.307 dm3
777580	777580	185 g	195 g	4046548009385	0.270 dm3
777581	777581	190 g	200 g	4046548009378	0.270 dm3
777582	777582	205 g	215 g	4046548009361	0.270 dm3
777583	777583	210 g	220 g	4046548009354	0.270 dm3
777584	777584	320 g	330 g	4046548009347	0.270 dm3
777150	777150	260 g	270 g	4046548009965	0.570 dm3
777140	777140	430 g	440 g	4046548009989	0.969 dm3
787588	787588	215 g	225 g	4046548008050	0.300 dm3
787586	787586	300 g	310 g	4046548008074	0.272 dm3
787587	787587	185 g	195 g	4046548008067	0.272 dm3
787580	787580	185 g	195 g	4046548008135	0.327 dm3

Common to all listed parts

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Addit. contact details relay	+ 0.2 µm Au
Climatic suitability to ...	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
