SIRIUS 3RB electronic overload relays Parts


















Compare SIRIUS 3RB electronic overload relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state | thermal current | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value |
|---|---|---|---|---|---|
| 3RB3016-1TE0 | 1.1 W | 16 A | 0.225 kg | 4 ... 16 A | 16 A |
| 3RB3016-1PB0 | 0.1 W | 4 A | 0.213 kg | 1 ... 4 A | 4 A |
| 3RB3026-1QB0 | 1.2 W | 25 A | 0.254 kg | 6 ... 25 A | 25 A |
| 3RB3026-1PE0 | 0.1 W | 4 A | 0.279 kg | 1 ... 4 A | 4 A |
| 3RB3026-1PB0 | 0.1 W | 4 A | 0.236 kg | 1 ... 4 A | 4 A |
| 3RB3026-1NE0 | 0.1 W | 1.25 A | 0.254 kg | 0.3 ... 1.25 A | 1.25 A |
| 3RB3016-1TB0 | 1.1 W | 16 A | 0.219 kg | 4 ... 16 A | 16 A |
| 3RB3016-1SE0 | 0.6 W | 12 A | 0.221 kg | 3 ... 12 A | 12 A |
| 3RB3046-1XB0 | 4.6 W | 115 A | 0.528 kg | 32 ... 115 A | 115 A |

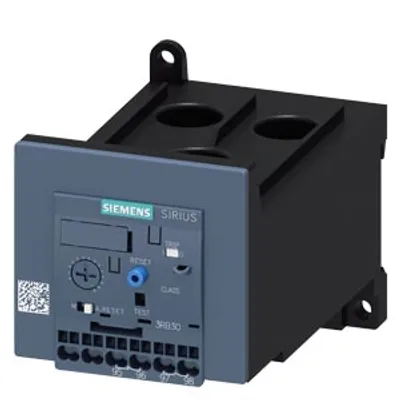

| 3RB3046-1UX1 | 0.2 W | 50 A | 297.88 g | 12.5 ... 50 A | 50 A |

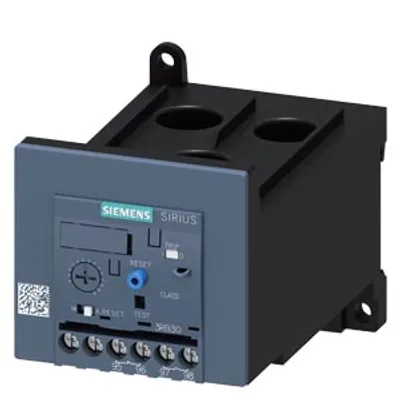

| 3RB3046-1UW1 | 0.2 W | 50 A | 300.88 g | 12.5 ... 50 A | 50 A |

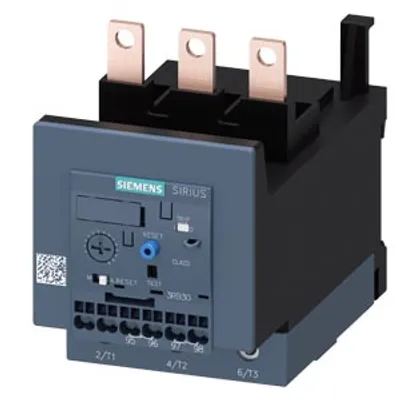

| 3RB3046-1UD0 | 0.9 W | 50 A | 0.55 kg | 12.5 ... 50 A | 50 A |
| 3RB3036-2UD0 | 1.8 W | 50 A | 0.368 kg | 12.5 ... 50 A | 50 A |
| 3RB3036-2UB0 | 1.8 W | 50 A | 0.197 kg | 12.5 ... 50 A | 50 A |
| 3RB3036-1WX1 | 0.2 W | 80 A | 0.268 kg | 20 ... 80 A | 80 A |

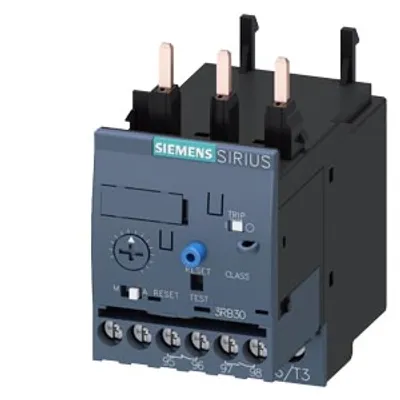

| 3RB3026-1NB0 | 0.1 W | 1.25 A | 0.222 kg | 0.3 ... 1.25 A | 1.25 A |

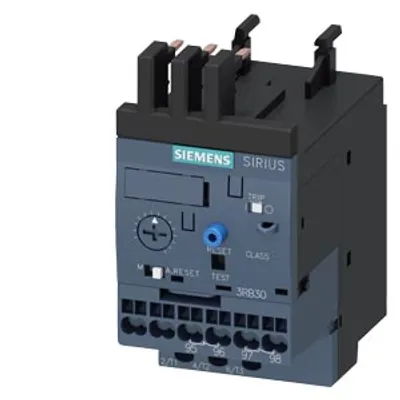

| 3RB3016-2TE0 | 1.1 W | 16 A | 0.217 kg | 4 ... 16 A | 16 A |

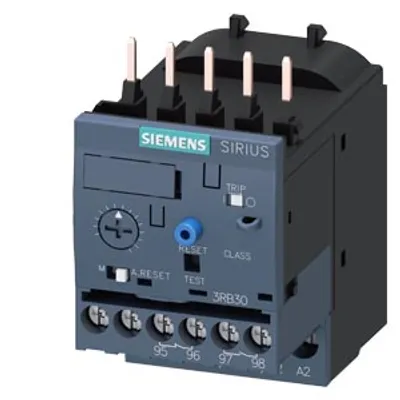

| 3RB3016-2TB0 | 1.1 W | 16 A | 0.218 kg | 4 ... 16 A | 16 A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| vibration resistance | 1 … 6 Hz, 15 mm; 6 … 500 Hz, 20 m/s²; 10 cycles |
| reference code according to IEC 81346-2 | F |
| installation altitude at height above sea level maximum | 2 000 m |
| temperature compensation | -25 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
| number of poles for main current circuit | 3 |
| operating frequency rated value | 50 ... 60 Hz |
