Compare Basic Type 4 light curtain, finger protection
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product ID (Pilz order number) | Height of protected field | Reaction time | Height dimension | Net weight |
|---|
| 630750 | 630750 | 1650 | 47 | 1733.3 mm | 5000 g |
| 630751 | 630751 | 1800 | 50 | 1883.3 mm | 10300 g |

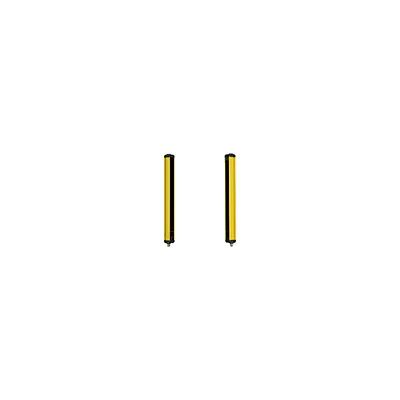

| 630741 | 630741 | 300 | 15 | 383.2 mm | 1740 g |
| 630744 | 630744 | 750 | 25 | 833.2 mm | 3240 g |
| 630745 | 630745 | 900 | 29 | 983.2 mm | 2420 g |
| 630748 | 630748 | 1350 | 40 | 1433.2 mm | 7700 g |
| 630747 | 630747 | 1200 | 36 | 1283.2 mm | 3960 g |
| 630743 | 630743 | 600 | 22 | 683.2 mm | 2680 g |
| 630746 | 630746 | 1050 | 33 | 1133.2 mm | 3480 g |
| 630749 | 630749 | 1500 | 43 | 1583.3 mm | 4380 g |
| 630742 | 630742 | 450 | 18 | 533.2 mm | 1320 g |

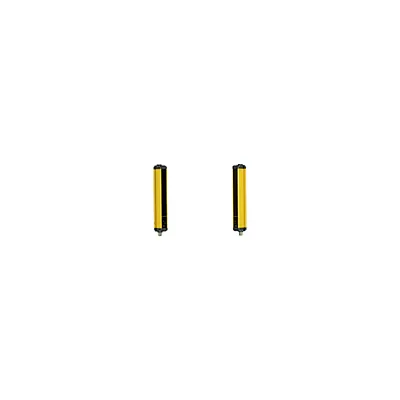

| 630740 | 630740 | 150 | 11 | 233.3 mm | 540 g |
| 630603 | 630603 | 588 | 26 | 697 mm | 2745 g |
Common to all listed parts
| Approval | CE, cULus Listed, TÜV, EAC (Eurasian) |
| ESPE type | 4 |
| Sensor principle | optical |
| Resolution protection type | Finger |
| Operating range (m) | 0.2, 6 |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Number of OSSD outputs | 2 |
