Home / B&R / Compact-S PLC / B&R X20CP0484 – Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

Available on request

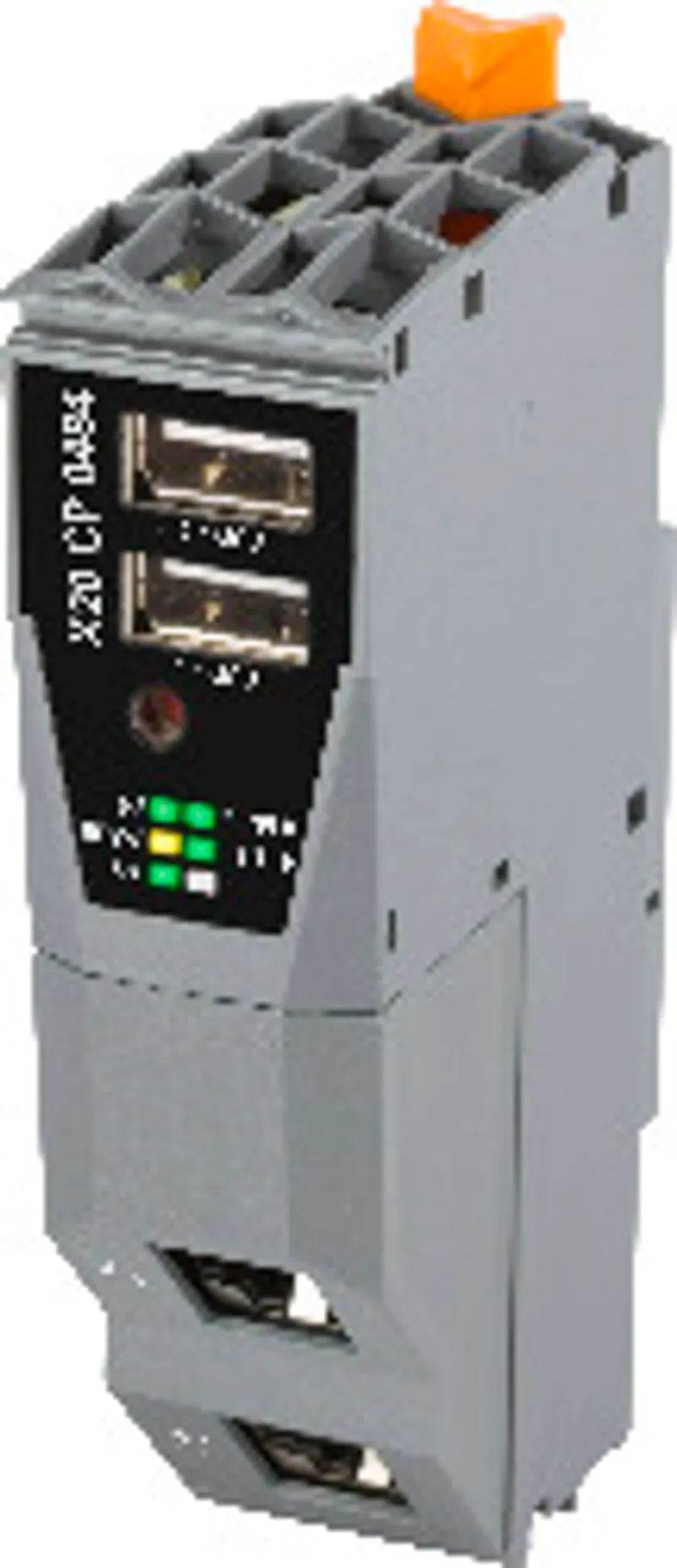

B&R X20CP0484 – Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB

Name: B&R X20CP0484 – Interfaces, 1x Ethernet, 1x POWERLINK V2, 2x USB
Brand: B&R
SKU: X20CP0484

MPN: X20CP0484 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Compact-S PLC
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X20CP0484 be shipped?

X20CP0484 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20CP0484 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20CP0484 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP0484, subject to availability and destination.

• ARM Cortex-A9 processor with 667 MHz and integrated I/O processor

• POWERLINK with onboard poll response chaining

• Onboard Ethernet

• 2x onboard USB

• 256 MB DDR3 SDRAM

• 2 GB onboard flash drive

• Fanless

• No battery

• Extremely compact

The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free.

The X20CP0484 is equipped with an ARM Cortex- A9-667 processor, 256 MB RAM and 2 GB built-in flash drive. The FRAM for storing remanent variables has 64 kB available.

With POWERLINK, Ethernet, USB and RS232, the controller offers a wide range of communication options. An optional RS485 or CAN interface is available. If the application requires additional interfaces, the controller can be modularly expanded by one or two X20 interface slots. This allows the entire product range of X20 fieldbus interfaces to be used.

Accessories

Required accessories (order separately)

X20PS9602	System modules for Compact-S PLC — Supply for Compact-S CPU, X2X Link and internal I/O power supply; Cost-effective power supply module for small X20 systems; No galvanic iso…
X20PS9600	System modules for Compact-S PLC — Supply for Compact-S CPU, X2X Link and internal I/O power supply; Galvanic isolation of supply and CPU / X2X Link power supply; Redundancy…
X20BB77	System modules for Compact-S PLC — Base for X20 Compact-S controllers; 2 slots for X20 interface modules; RS232 connection; CAN bus connection; Integrated terminating resisto…
X20BB72	System modules for Compact-S PLC — Base for X20 Compact-S controllers; 2 slots for X20 interface modules; RS232 connection The bus module is a base for all X20 Compact-S cont…
X20BB67	System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS232 connection; CAN bus connection; Integrated terminating resistor…
X20BB63	System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS485 connection; Integrated terminating resistor The bus base is a b…
X20BB62	System modules for Compact-S PLC — Base for X20 Compact-S controllers; 1 slot for X20 interface modules; RS232 connection The bus module is the base for all X20CP048x Compact…
X20BB57	System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS232 connection; CAN bus connection; Integrated terminating resistor for CAN bus The bus module is…
X20BB53	System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS485 connection; Integrated terminating resistor The bus base is the basis for all X20 Compact-S c…
X20BB52	System modules for Compact-S PLC — Base for all X20 Compact-S controllers; RS232 connection The bus module is the base for all X20 Compact-S controllers. The left and right e…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Optional accessories (1)

0TGF016.01

Technology Guard — Technology Guard (MSD) with integrated flash drive, 16 GB (MLC)

Specifications

Short description

Interfaces	1x Ethernet, 1x POWERLINK V2, 2x USB, 1x X2X Link
System module	Controller

General information

Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – Ethernet	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – Temperature	Yes, using software register
Support – Controller redundancy	No
Support – Storage health data support	Yes
Support – ACOPOS support	Yes
Support – Visual Components support	Yes
Support – Multicore support	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xE953
Cooling	Fanless
Status indicators	CPU function, Ethernet, POWERLINK
Power consumption	2.95 W " data-placement="top" data-html="true" data-container="body" data-content="Without USB interface.">
Additional power dissipation caused by actuators (resistive) [W]	-

Controller

Processor – Data code	32 kB
Processor – Program code	32 kB
Processor – Type	ARM Cortex-A9
Processor – Clock frequency	667 MHz
Processor – L2 cache	512 kB
Standard memory – RAM	256 MB DDR3 SDRAM
Application memory – Guaranteed	40 TB
Application memory – Results for 5 years	21.9 GB/day
Application memory – Type	2 GB eMMC flash memory
Application memory – Data retention	10 years
Application memory – Guaranteed erase/write cycles	20,000
Application memory – Error-correcting code (ECC)	Yes
Slots for interface modules – X20BB5x	0
Slots for interface modules – X20BB6x	1
Slots for interface modules – X20BB7x	2
Real-time clock	Retention for at least 300 hours, typ. 1000 hours at 25°C, 1 s resolution, -18 to 28 ppm accuracy at 25°C
Floating point unit (FPU)	Yes
Integrated I/O processor	Processes I/O data points in the background
Remanent variables	64 kB FRAM, retention >10 years " data-placement="top" data-html="true" data-container="body" data-content="The memory size for remanent variables is configurable in Automation Studio.">
Shortest task class cycle time	0.4 ms
Typical instruction cycle time	0.0106 µs

Interfaces

Interface IF2 – Physical layer	10BASE-T/100BASE-TX
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	Yes
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Signal	Ethernet
Interface IF2 – Variant	1x RJ45 shielded
Interface IF2 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF2 – Transfer rate	10/100 Mbit/s
Interface IF3 – Physical layer	100BASE-TX
Interface IF3 – Half-duplex	Yes
Interface IF3 – Full-duplex	POWERLINK mode: No / Ethernet mode: Yes
Interface IF3 – Autonegotiation	Yes
Interface IF3 – Auto-MDI/MDIX	Yes
Interface IF3 – Fieldbus	POWERLINK V2 managing or controlled node
Interface IF3 – Type	Type 6 " data-placement="top" data-html="true" data-container="body" data-content="For additional information, see section "Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help.">
Interface IF3 – Variant	1x RJ45 shielded
Interface IF3 – Line length	Max. 100 m between 2 stations (segment length)
Interface IF3 – Transfer rate	100 Mbit/s
Interface IF4 – Type	USB 1.1/2.0
Interface IF4 – Variant	Type A
Interface IF4 – Max. output current	0.2 A
Interface IF5 – Type	USB 1.1/2.0
Interface IF5 – Variant	Type A
Interface IF5 – Max. output current	0.2 A
Interface IF6 – Fieldbus	X2X Link master
On base module	X20BBx2: Compact-S PLC base module with integrated RS232 interface; X20BBx3: Compact-S PLC base module with integrated RS485 interface; X20BBx7: Compact-S PLC base module with integrated RS232 and CAN bus interface

Electrical properties

Electrical isolation

Ethernet (IF2) and POWERLINK (IF3) isolated from each other, from other interfaces and from PLC; X2X (IF6) isolated from other interfaces and PLC: Yes, with X20PS9600 / No, with X20PS9602; USB (IF4, IF5) not isolated from each other and PLC

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating" in the X20PS960x data sheet.
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Pitch " data-placement="top" data-html="true" data-container="body" data-content="The pitch is based on the width of the Compact-S PLC base."> – X20BB5x	37.5 +0.2 mm
Pitch " data-placement="top" data-html="true" data-container="body" data-content="The pitch is based on the width of the Compact-S PLC base."> – X20BB6x	62.5 +0.2 mm " data-placement="top" data-html="true" data-container="body" data-content="X20CP048x PLCs can be used to operate 1 interface module.">
Pitch " data-placement="top" data-html="true" data-container="body" data-content="The pitch is based on the width of the Compact-S PLC base."> – X20BB7x	87.5 +0.2 mm " data-placement="top" data-html="true" data-container="body" data-content="X20CP048x PLCs can be used to operate 2 interface modules.">
Note	Order 1x terminal block X20TB12 separately.; Order 1x power supply module X20PS9600 or X20PS9602 separately.; Order 1x Compact-S PLC base X20BB5x, X20BB6x or X20BB7x separately.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20(c)CP04xx	PDF · 3 MB · 2.24 (07/28/2026) - EN
Open Source Licenses X20CP04xx	ZIP · 1 MB · 1.00 (09/05/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20CP048x

ZIP · 2 MB · 1.00 (11/09/2017)

Certificates (13)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20	PDF · 1 MB · 2026_05 (05/05/2026)
ABS Certificate of Product Design Assessment - X20 IO Series	PDF · 454 KB · 2.00 (01/13/2025)
CCS Type Approval Certificate - X20	PDF · 285 KB · 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20 PLC - Connected Product Information Notice	PDF · 91 KB · 1.00 (09/30/2025)
EU Declaration ATEX X20	PDF · 218 KB · 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20	PDF · 169 KB · 2021/10 (11/08/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System)	PDF · 320 KB · 2.0 (05/05/2025)
Lloyds Register (X20 only)	PDF · 884 KB · 1.30 (07/07/2025)
RINA Type Approval Certificate - X20 / Power Panel T30	PDF · 1 MB · 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20	PDF · 186 KB · 13.0 (05/04/2026)
UK Declaration PLC X20	PDF · 151 KB · 2024-01 (01/18/2024)
