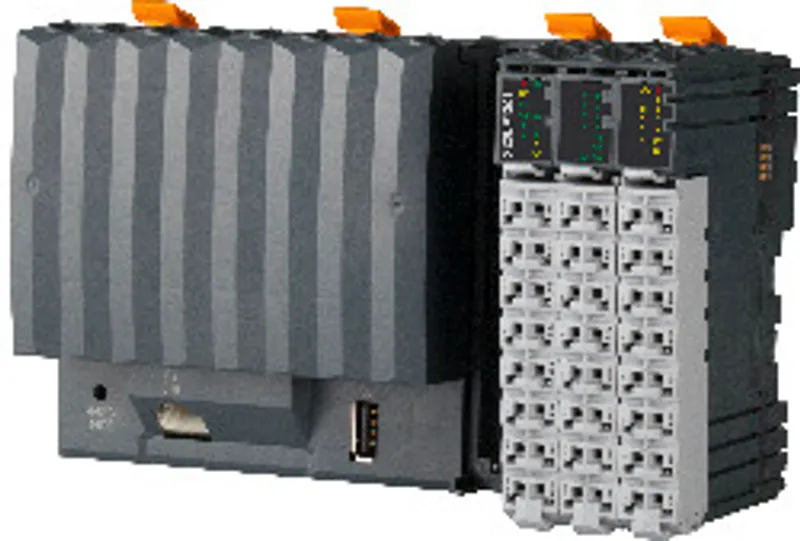

B&R X20CP1301

Name: B&R X20CP1301
Brand: B&R
SKU: X20CP1301

MPN: X20CP1301 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Compact PLC
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	300 kg

Shipping & availability

When can X20CP1301 be shipped?

X20CP1301 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20CP1301 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20CP1301 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1301, subject to availability and destination.

Intel x86 200 MHz compatible with integrated I/O processorOnboard Ethernet and USB1 slot for modular interface expansion30 digital inputs/outputs and 2 analog inputs integrated in the device1 GB onboard flash drive128 MB DDR3 SDRAMFanlessNo batteryBacked-up real-time clock The X20 Compact controller series is characterized by 3 integrated I/O modules. The device is equipped with 30 different digital inputs/outputs and 2 analog inputs. 1 analog input can be used for Pt1000 resistance temperature measurement. The X20CP1301 is equipped with an Intel x86 200 MHz compatible processor, 128 MB RAM and 1 GB built-in flash drive. The FRAM for storing remanent variables has 16 kB available. A fanless and battery-free design ensures maintenance-free operation. The controller is equipped with one Ethernet, one USB and one RS232 interface. Various bus and network systems can be flexibly integrated into the X20 system via a freely usable slot for X20 communication modules.
