B&R 0TGF016.01 – Accessories, technology Guard for B&R license management
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Technology Guard |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TGF016.01 be shipped?
0TGF016.01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TGF016.01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TGF016.01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TGF016.01, subject to availability and destination.

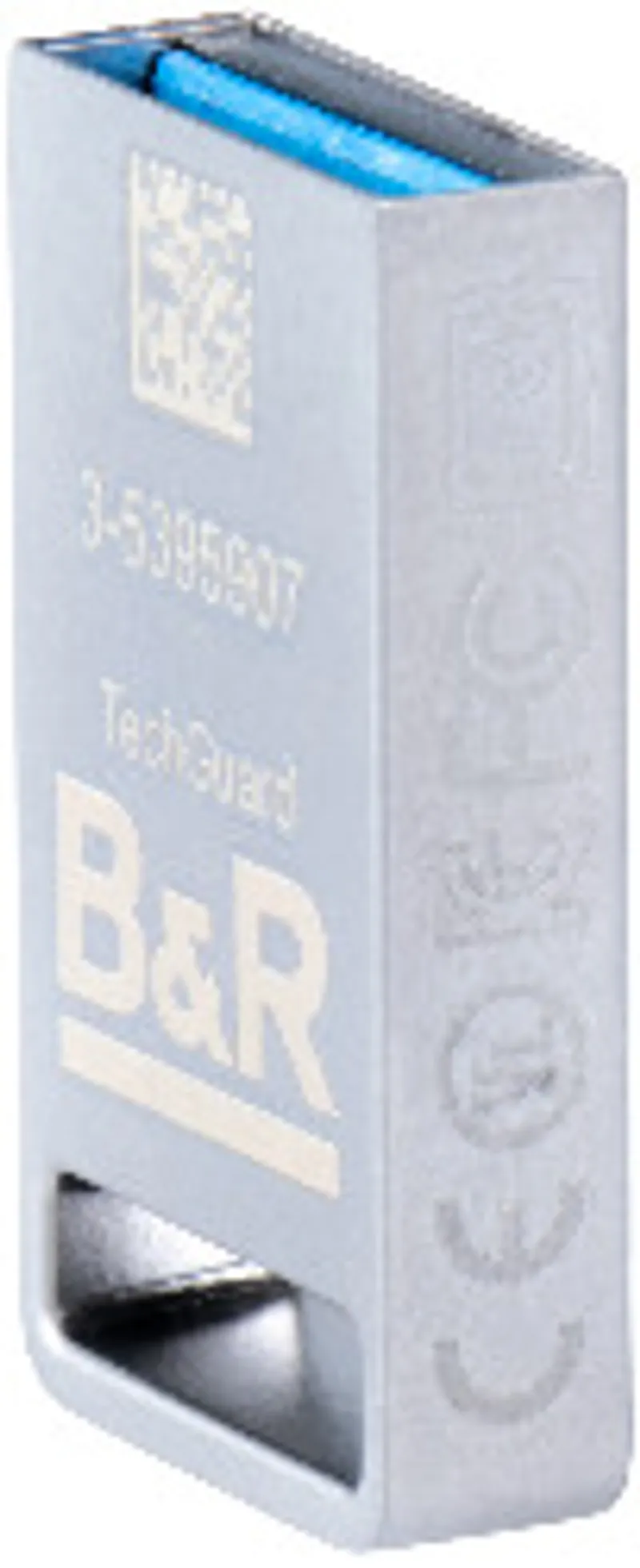

Technology Guard (MSD) with integrated flash drive, 16 GB (MLC)
Specifications
Short description
| Accessories | Technology Guard for B&R license management, integrated flash memory |
General information
| Application memory – Size | 16 GB customized data |
| Application memory – Operation | License management using library AsGuard |
| Application memory – Data retention | >1 year at 2.5 TB (write); >3 years at 250 GB (write) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Note | Manufacturer ID: 0x064F ; Product ID: 0x03F3 |
| Connection | USB 3.1 type A, compatible with 2.0 |
| Coding | 128-bit AES, SHA-256, 2048-bit RSA, 224-bit ECC |
| Data retention | 10 years at 40°C |
| Data reliability | Licenses: Up to 10 million updates |
| MTBF | >3 million hours |
| Power supply | 5 V |
| Power consumption | Max. 130 mA with USB 2.0 ; Max. 180 mA with USB 3.1 |
Endurance
| Guaranteed data volume – Guaranteed | 40 TB |
| Guaranteed data volume – Results for 5 years | 20 GB/day |
| Erase/Write cycles – Guaranteed | 3000 per cell (2-bit) |
Ambient conditions
| Temperature – Operation | -25 to 55°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 12.1 mm |
| Dimensions – Length | 22 mm |
| Dimensions – Height | 4.5 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Automation PC 3200 User's Manual | PDF · 11 MB · 1.11 (09/23/2026) - EN |
| Automation PC 4100 user's manual | PDF · 18 MB · 1.21 (08/03/2026) - EN |
| Panel PC 3200 User's Manual | PDF · 18 MB · 1.11 (09/23/2026) - EN |
| TechnologyGuard 0TGxxxx.0x | PDF · 162 KB · 2.02 (03/08/2024) - EN |
