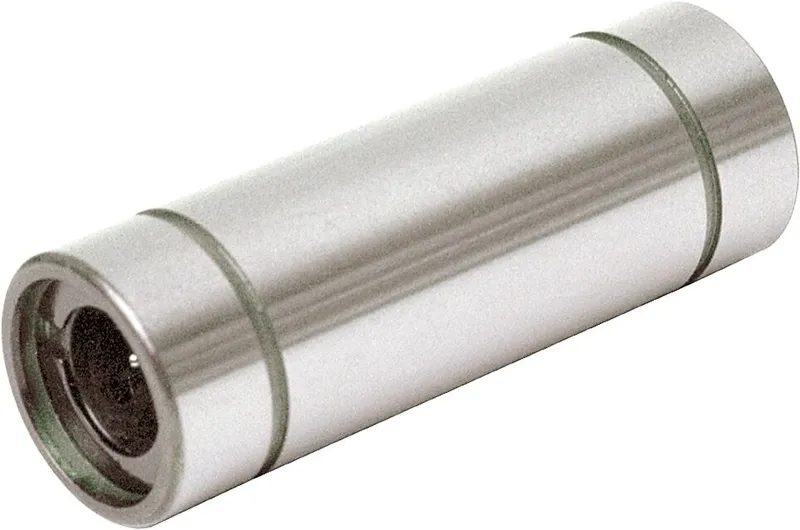

STANDARD LINEAR BUSHING KBMT-30-DD-NR
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | Linear bushings |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
Spedizione e disponibilità
Quando può essere spedito R065023030?
R065023030 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare R065023030 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per R065023030 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per R065023030, in base a disponibilità e destinazione.
standard linear bushing<br>Standard (metal)<br>Tandem<br>Shaft diameter d = 30<br>With two seals<br>Version: Rust-resistant Rugged all-metal design with steel ball retainer for harsh environments and heavy contamination Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life For use in woodworking, foundries, cement plants Stainless steel for the medical, chemistry and food industries Integrated wiper seals Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming. Hardened and machined outer sleeve made of stainless steel comparable to 1.4125 Ball retainer made of stainless steel comparable to 1.4301 Balls made of stainless steel comparable to 1.4125 Retaining rings for ball retainer made of stainless steel comparable to 1.4006
Specifiche
Specifications
| Shaft diameter d [mm] | 30.0 |
| Version | Corrosion-resistant |
| Format of linear bushings | T - Tandem |
| Series | Standard (metal) |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Lubrication | Not lubricated |
| Maximum dynamic load capacity Cmax [N] | 2150.0 |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Length of linear bushing [mm] | 123.0 |
| Outer diameter D [mm] | 47.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Weight [kg] | 0.65 |
| Static longitudinal moment load capacity ML0 [Nm] | 82 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7 |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Breakaway force [N] | 18 |

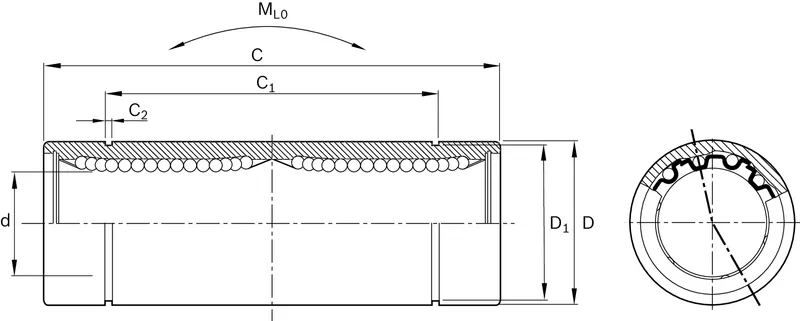

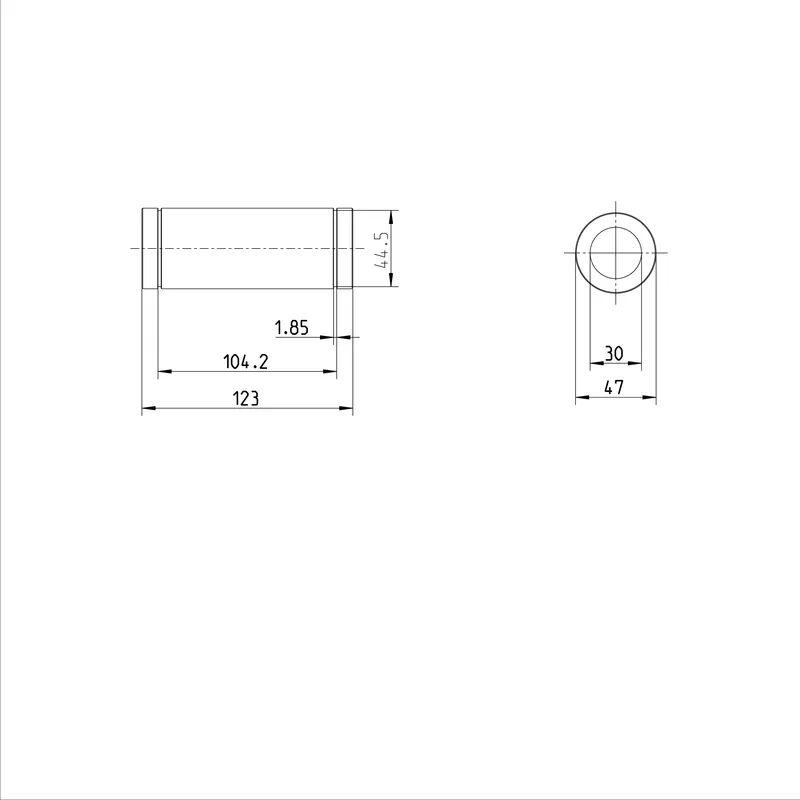

| Dimension C [mm] | 123 |
| Dimension C1 [mm] | 104.2 |
| Tolerance C1 [mm] | -0.4 |
| Dimension C2 [mm] | 1.85 |
| Dimension D [mm] | 47 |
| Dimension D1 [mm] | 44.5 |
