Home / Danfoss (Drives) / HOSE NIPPLE, 2P/04, DKOH-B/20, CS, STR
Available on request

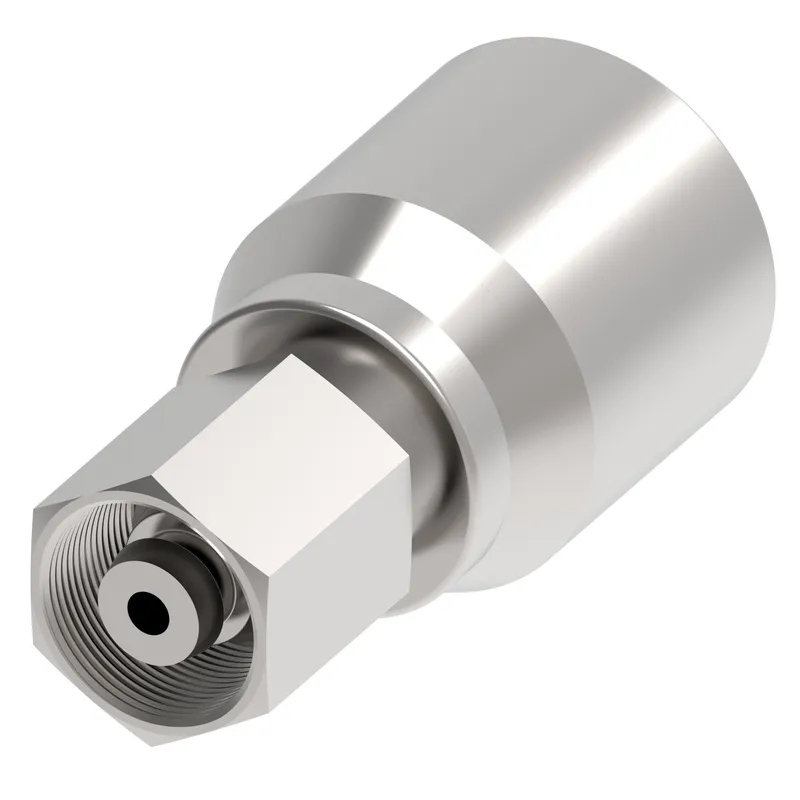

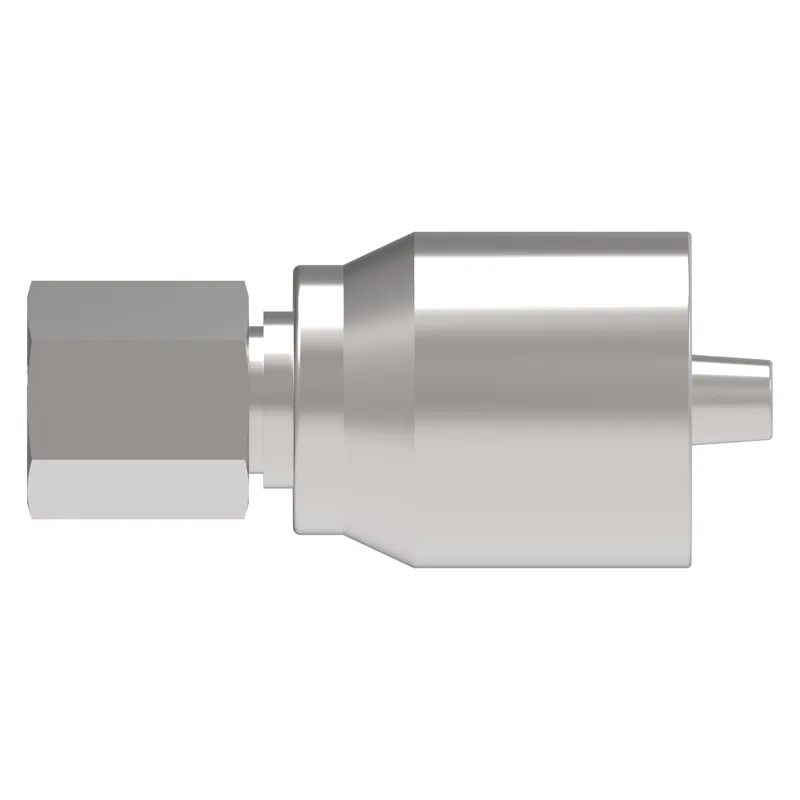

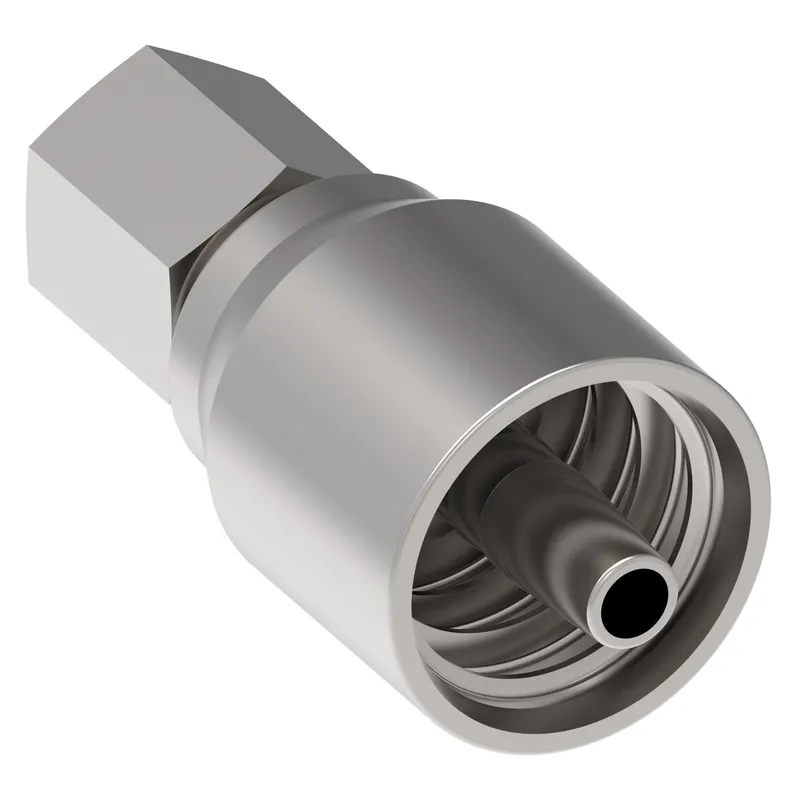

HOSE NIPPLE, 2P/04, DKOH-B/20, CS, STR

MPN: 20511Y-20-04TZ · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 20511Y-20-04TZ be shipped?

20511Y-20-04TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20511Y-20-04TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20511Y-20-04TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511Y-20-04TZ, subject to availability and destination.

Danfoss HOSE NIPPLE, 2P/04, DKOH-B/20, CS, STR, manufacturer part number 20511Y-20-04TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.140
A dimension MM54.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End size 1-20
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN1.040
Hose cut off factor MM26.500
Hose size-4
Inside diameter IN0.150
Inside diameter MM4.000
Product height in1.080
Product height mm27.432
Product length in2.322
Product length mm58.978
Product materialCarbon steel
Product width in0.940
Product width mm23.876
SeriesWinner 2-Piece
Thread sealantNo
Working pressure max BAR172
Working pressure max PSI2500
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
