Home / Danfoss (Drives) / HOSE NIPPLE ASSY,2P/06,DKOH-B/18,CS,STR
Available on request

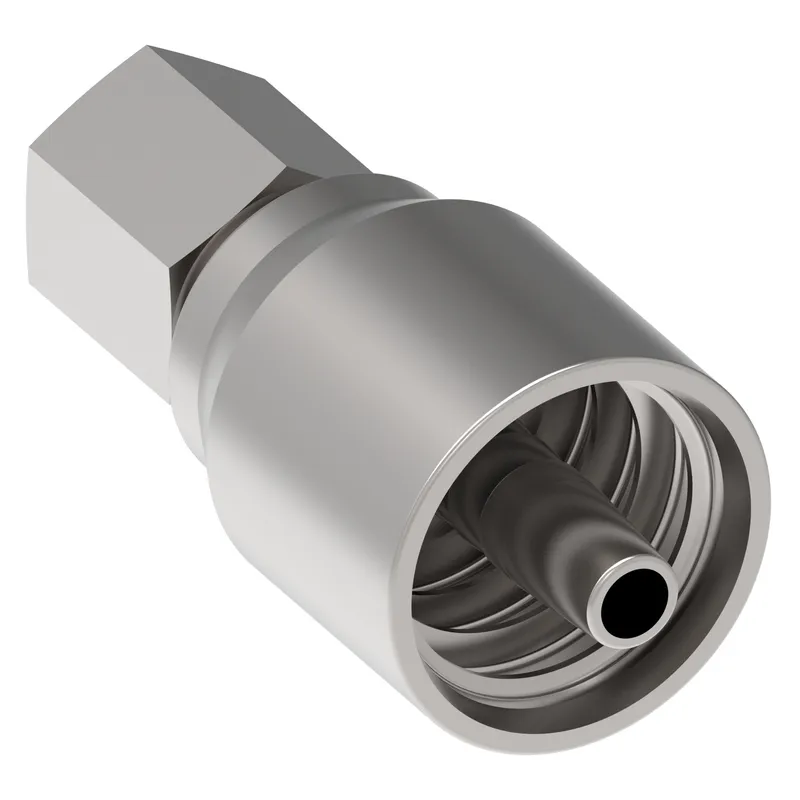

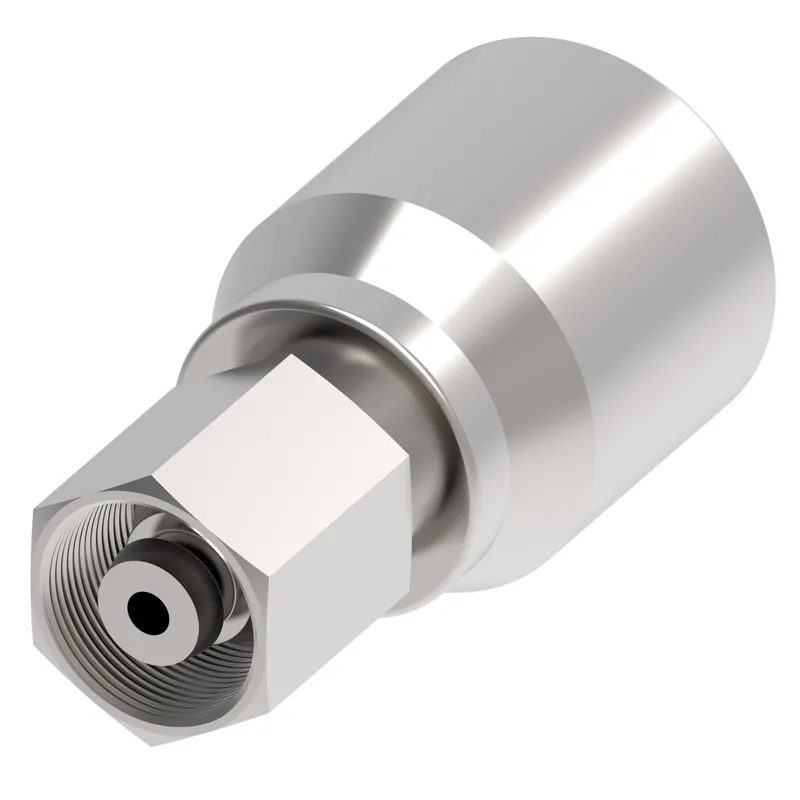

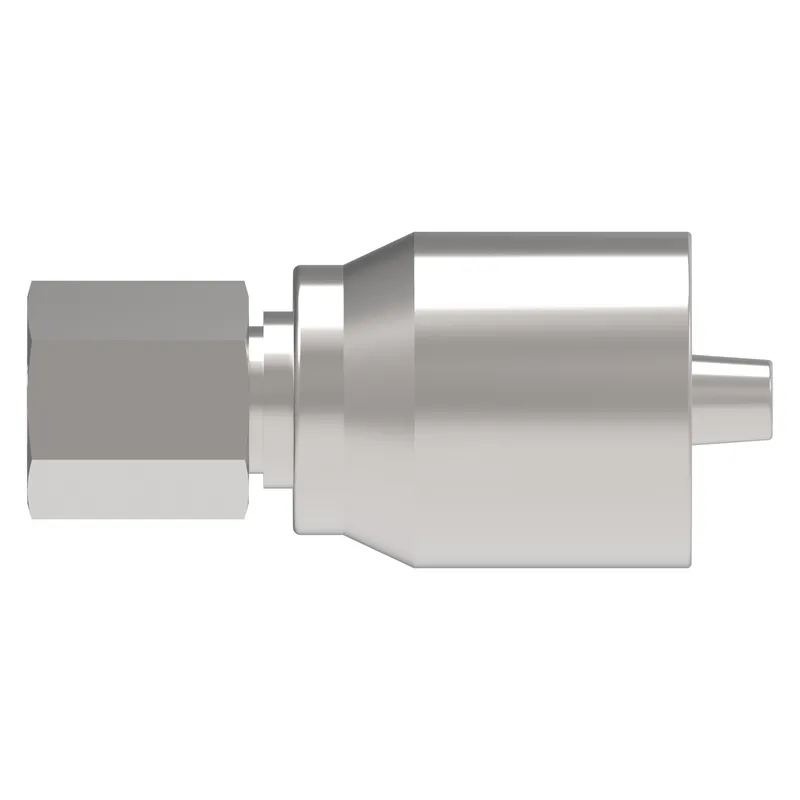

HOSE NIPPLE ASSY,2P/06,DKOH-B/18,CS,STR

MPN: 20511Y-18-06TZ · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 20511Y-18-06TZ be shipped?

20511Y-18-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20511Y-18-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20511Y-18-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511Y-18-06TZ, subject to availability and destination.

Danfoss HOSE NIPPLE ASSY,2P/06,DKOH-B/18,CS,STR, manufacturer part number 20511Y-18-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.200
A dimension MM56.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
End connection torque37-44 lb-ft(50-60 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 IN0.940
Hex size 1 MM23.876
Hex size 2 IN0.944
Hex size 2 MM23.978
Hose cut off factor IN1.020
Hose cut off factor MM26.000
Hose size-6
Inside diameter IN0.270
Inside diameter MM7.000
Product height in1.074
Product height mm27.279
Product length in2.322
Product length mm58.978
Product materialCarbon steel
Product width in1.074
Product width mm27.279
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M18x1.5
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
