Home / Danfoss (Drives) / HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,STR
Available on request

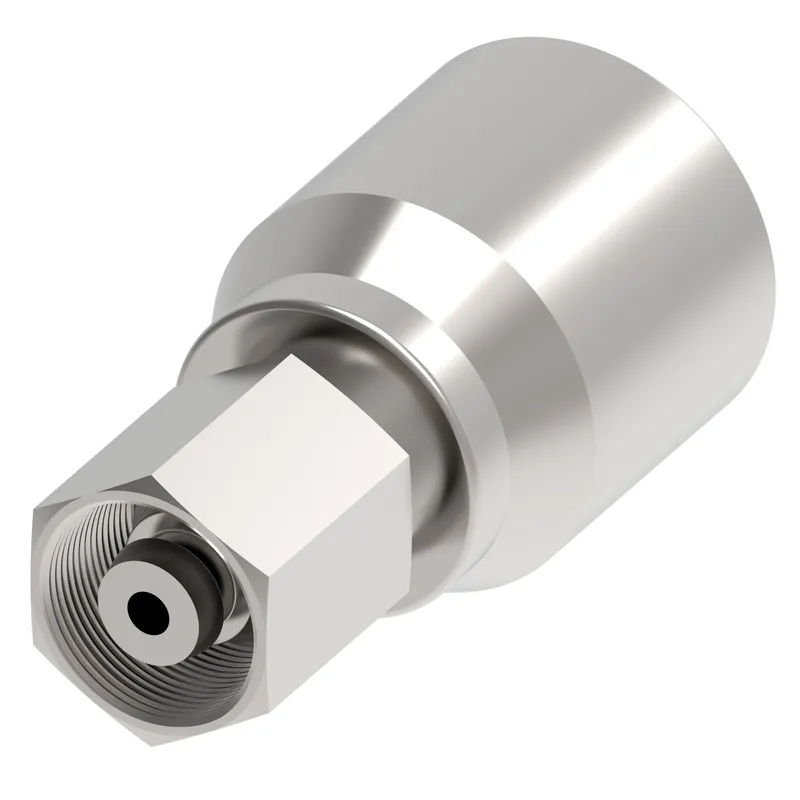

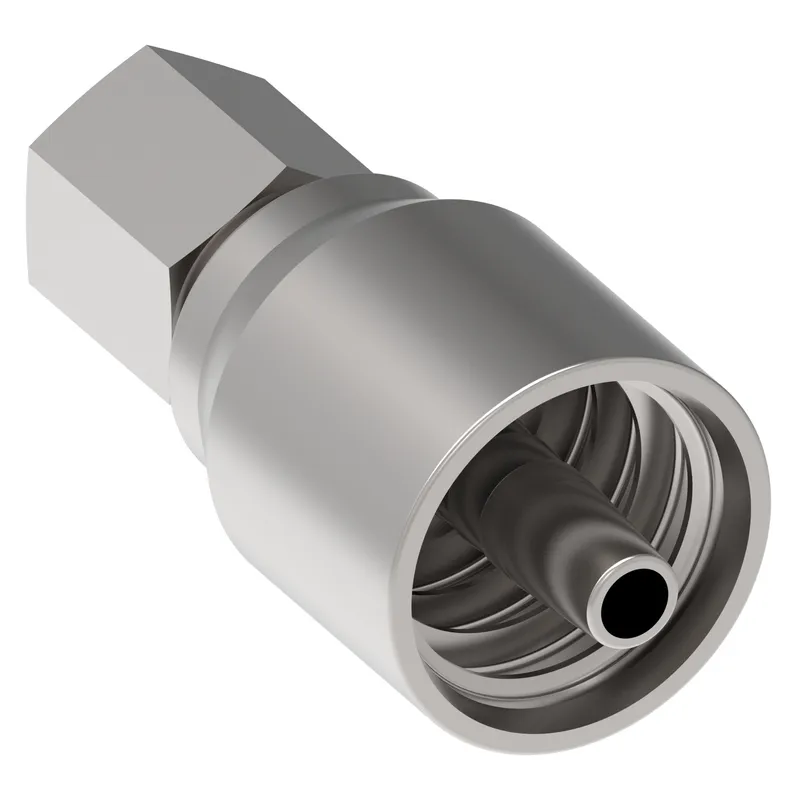

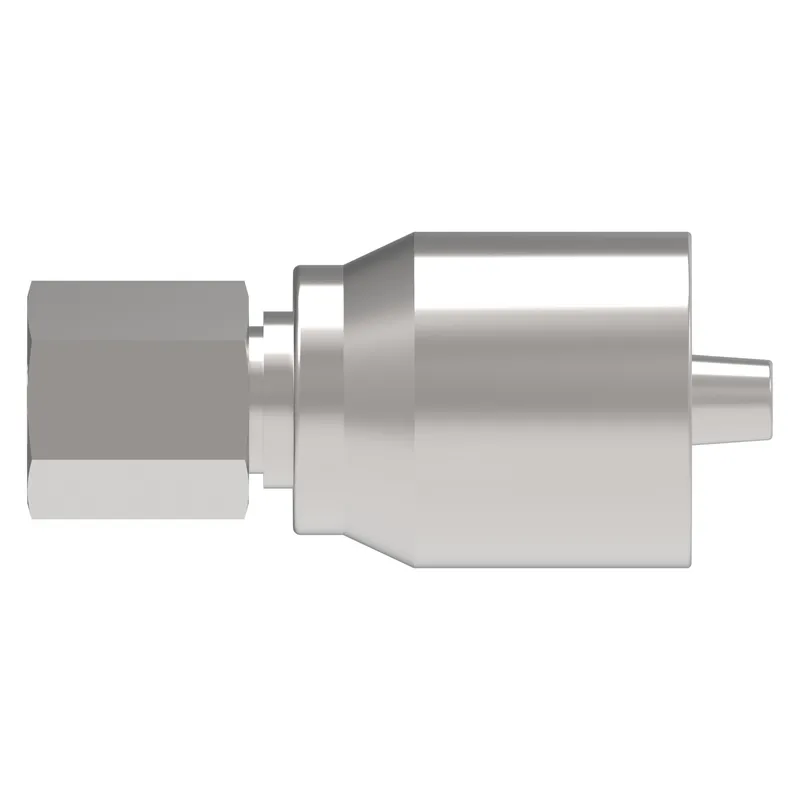

HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,STR

MPN: 20511Y-18-04TZ · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 20511Y-18-04TZ be shipped?

20511Y-18-04TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20511Y-18-04TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20511Y-18-04TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511Y-18-04TZ, subject to availability and destination.

Danfoss HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,STR, manufacturer part number 20511Y-18-04TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.100
A dimension MM53.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection torque37-44 lb-ft(50-60 Nm)
End size 2-4
End Type 124 deg. DKO swivel heavy duty
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM22.000
Hex size 2 IN0.944
Hex size 2 MM23.978
Hose cut off factor IN1.000
Hose cut off factor MM25.500
Hose size-4
Inside diameter IN0.150
Inside diameter MM4.000
Product height in1.000
Product height mm25.400
Product length in2.263
Product length mm57.480
Product materialCarbon steel
Product width in0.897
Product width mm22.783
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M18x1.5
