Home / B&R / B&R X67AI4850 – I/O module, 4 inputs for potentiometer displacement gauge

Available on request

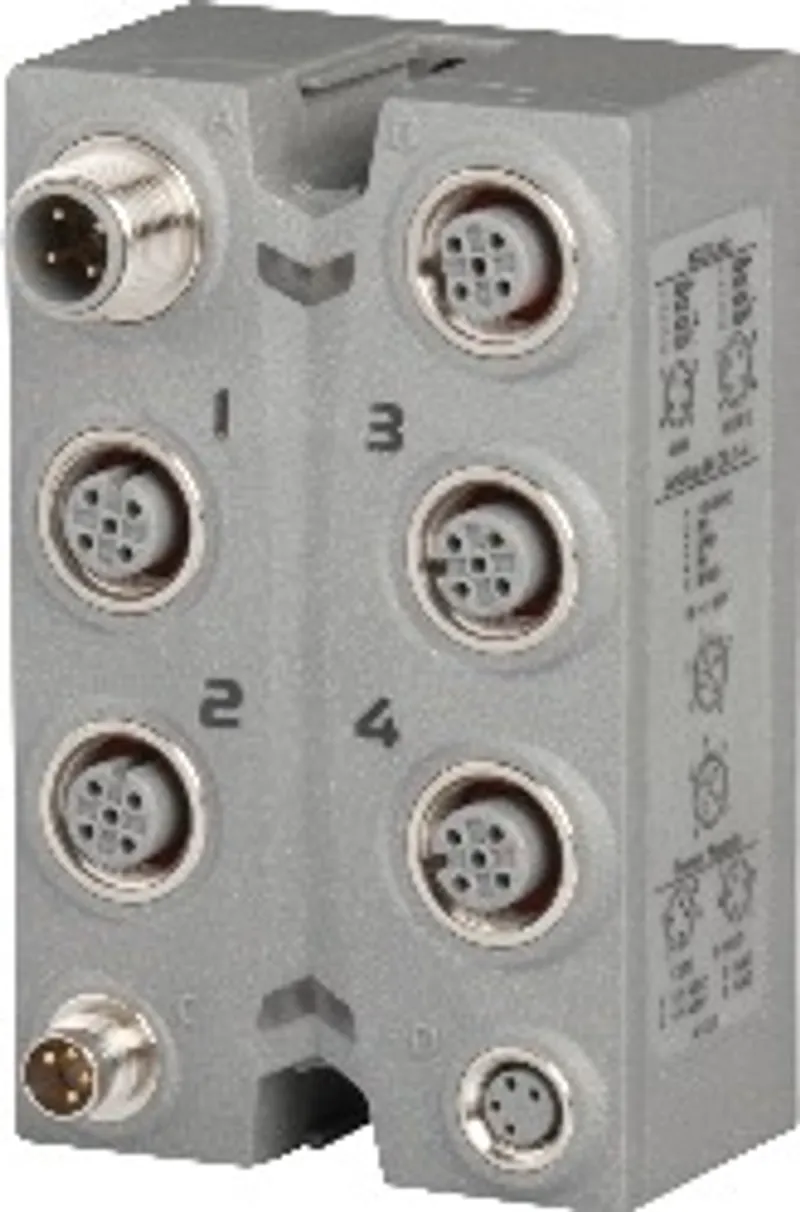

B&R X67AI4850 – I/O module, 4 inputs for potentiometer displacement gauge

Name: B&R X67AI4850 – I/O module, 4 inputs for potentiometer displacement gauge
Brand: B&R
SKU: X67AI4850

MPN: X67AI4850 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Analog input modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	195 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67AI4850 be shipped?

X67AI4850 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67AI4850 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67AI4850 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67AI4850, subject to availability and destination.

• 4 inputs for potentiometer displacement gauge

The module is a 4-channel analog input module. It is used to evaluate potentiometer displacement gauges.

Specifications

Short description

I/O module

4 inputs for potentiometer displacement gauge

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Input	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Bus	0.75 W
Power consumption – Internal I/O	2 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x9957
Status indicators	Channel status, operating state, module status

I/O power supply

Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Potentiometer power supply

Short-circuit proof	Yes
Potentiometer supply voltage U pot	4.5 V / Max. 50 mA
Voltage drop for short-circuit protection at 50 mA	Max. 0.13 VDC

Potentiometer, displacement gauge

Output of digital value – Open circuit on GND	0x7FFF
Output of digital value – Open circuit on slider	0x7FFF
Output of digital value – Open circuit on U pot	0x0000
Output of digital value – Valid range of values	0x0000 - 0x7FFF
Input filter – Cutoff frequency	10 kHz
Input filter – Slope	60 dB/Dec.
Input type	Single-ended input in the range of 0 to U pot
Digital converter resolution	15-bit
Measurement sensor	0.5 to 10 kΩ, potentiometer
Conversion time	<200 µs for all channels
Output format	INT (16-bit 2s complement)
Short-circuit protection U pot	Yes
Influence of cable length	Twisted and shielded conductors, cable length as short as possible, cable routing separate from load circuits, without intermediate terminal to sensor
Common-mode range	0 to U pot
Insulation voltage between input and bus	500 V eff
Quantization; LSB value (14-bit)	275 µV
Conversion procedure	Sample & Hold

Electrical properties

Electrical isolation

Bus isolated from analog input

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	195 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X67AI4850	PDF · 892 KB · 3.22 (11/21/2025) - EN
X67 System User´s Manual	PDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X67

ZIP · 2 MB · 1.20 (03/17/2025)

Certificates (7)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
E115267 UL CoC X67	PDF · 345 KB · 2026_01 (01/29/2026)
EU Declaration ATEX X67	PDF · 191 KB · 2021-04 (07/02/2021)
EU Declaration PLC X67	PDF · 674 KB · 2024-02 (02/02/2024)
TÜV 05 ATEX 7201 X	PDF · 5 MB · 1.10 (03/24/2021)
UK Declaration PLC X67	PDF · 469 KB · 2024-02 (02/02/2024)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
