Home / B&R / B&R X67AI1233 – I/O module, 4 analog inputs ±10 V

Available on request

B&R X67AI1233 – I/O module, 4 analog inputs ±10 V

Name: B&R X67AI1233 – I/O module, 4 analog inputs ±10 V
Brand: B&R
SKU: X67AI1233

MPN: X67AI1233 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Analog input modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	190 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67AI1233 be shipped?

X67AI1233 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67AI1233 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67AI1233 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67AI1233, subject to availability and destination.

• 4 analog inputs ±10 V

• 16-bit digital converter resolution

• Open/Short circuit detection

• Configurable digital input filters

• Very short cycle times

• Optimal shield grounding on all channels

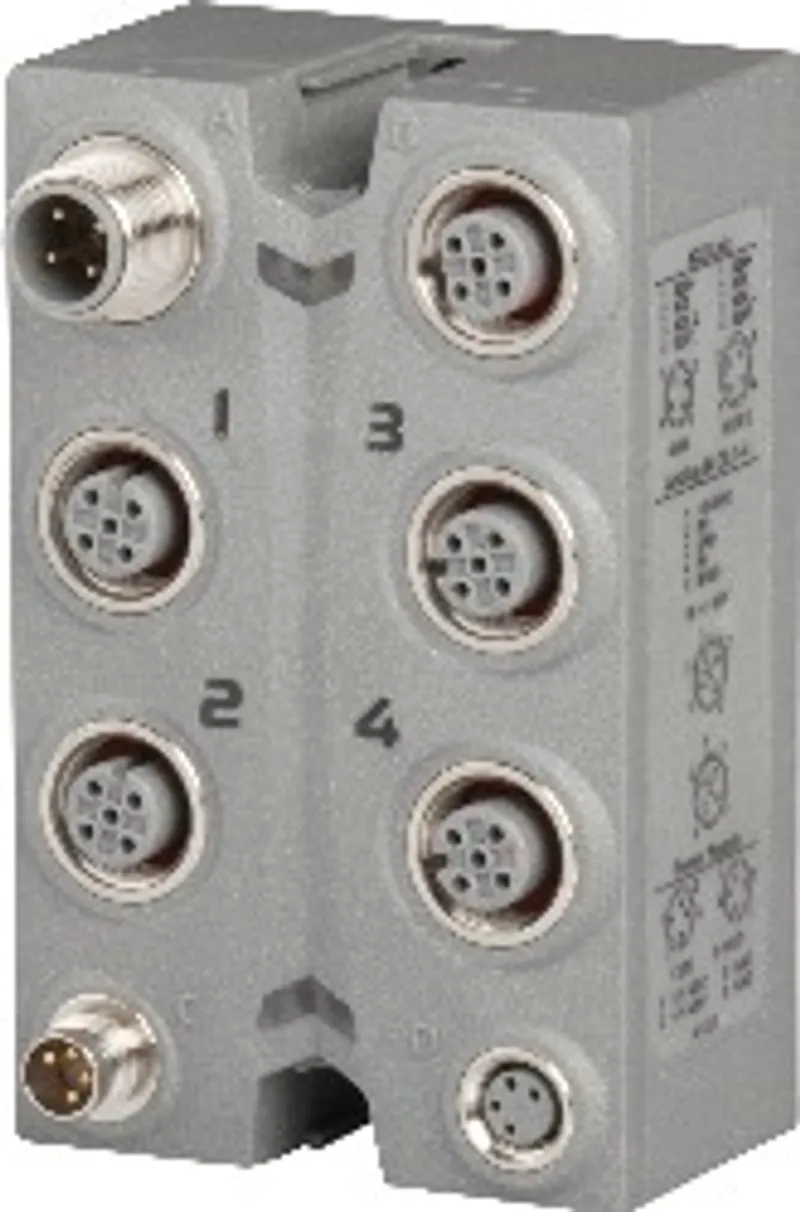

The module is equipped with 4 inputs with 16-bit digital converter resolution. The range of the input signal is ±10 V.

Specifications

Short description

I/O module

4 analog inputs ±10 V

General information

Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	3 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xAB1B
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor power supply	Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors connected to the module is not permitted to exceed 12 W.">
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Analog inputs

Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0001 = 305.2 µV
Output of digital value during overload – Undershoot	0x8001
Output of digital value during overload – Overshoot	0x7FFF
Max. error – Gain	0.12% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value.">
Max. error – Offset	0.06% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Common-mode rejection – DC	>50 dB
Common-mode rejection – 50 Hz	>50 dB
Input filter – Cutoff frequency	1 kHz
Input filter – Slope	40 dB
Input	±10 V
Input type	Differential input
Digital converter resolution	16-bit
Conversion time	400 µs for all inputs
Output format	INT
Input impedance in signal range	20 MΩ
Input protection	Protection against wiring with supply voltage
Permissible input signal	Max. ±30 V
Conversion procedure	Successive approximation
Max. gain drift	0.01%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value.">
Max. offset drift	0.0075% / °C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Common-mode range	±11 V
Crosstalk between channels	<-70 dB
Nonlinearity	<0.0062% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Insulation voltage between input and bus	500 V eff

Sensor power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 500 mA	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	190 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet X67AI1233	PDF · 1,017 KB · 2.20 (11/21/2025) - EN
X67 System User´s Manual	PDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X67

ZIP · 2 MB · 1.20 (03/17/2025)

Certificates (6)

E115267 UL CoC X67	PDF · 345 KB · 2026_01 (01/29/2026)
EU Declaration ATEX X67	PDF · 191 KB · 2021-04 (07/02/2021)
EU Declaration PLC X67	PDF · 674 KB · 2024-02 (02/02/2024)
TÜV 05 ATEX 7201 X	PDF · 5 MB · 1.10 (03/24/2021)
UK Declaration PLC X67	PDF · 469 KB · 2024-02 (02/02/2024)
X20, X67 KC certificates	PDF · 7 MB · 2.00 (08/17/2026)
