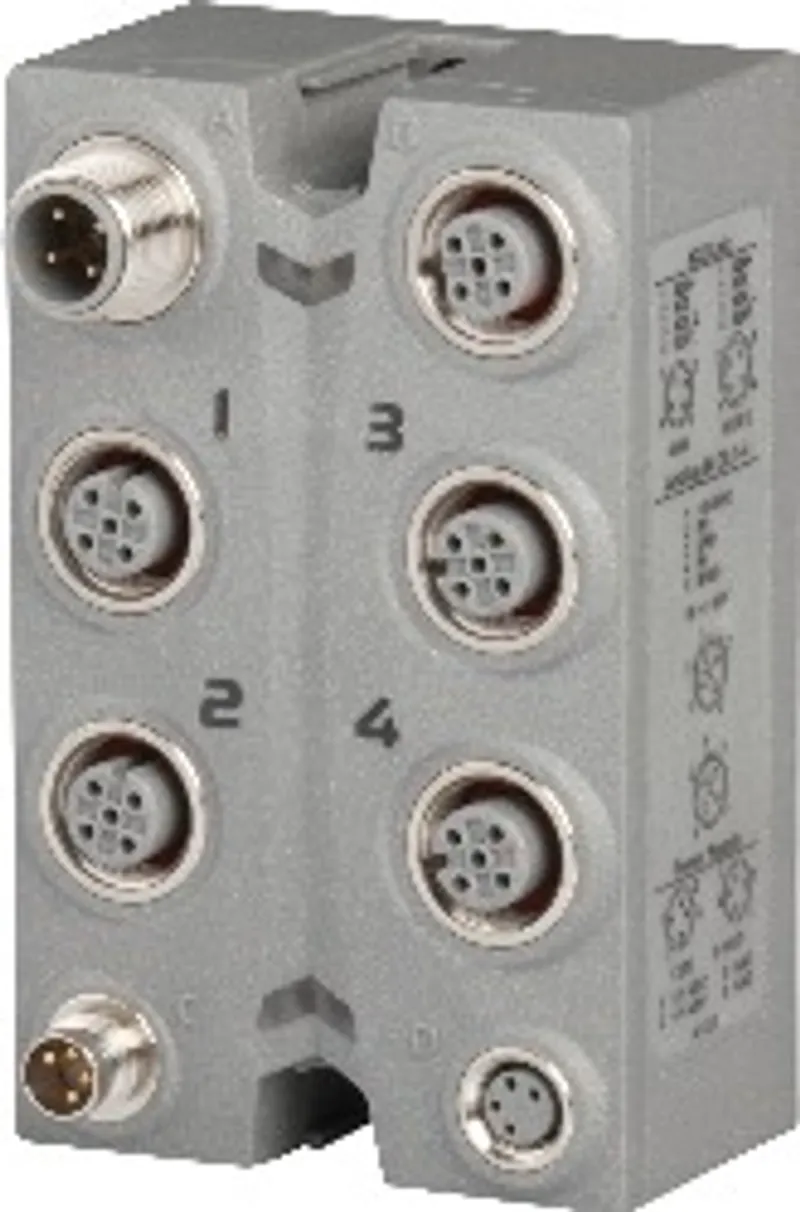

B&R X67AM1323 – I/O module, 2 analog inputs, 2 analog outputs

Name: B&R X67AM1323 – I/O module, 2 analog inputs, 2 analog outputs
Brand: B&R
SKU: X67AM1323

MPN: X67AM1323 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Analog mixed modules
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	175 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can X67AM1323 be shipped?

X67AM1323 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67AM1323 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67AM1323 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67AM1323, subject to availability and destination.

• 2 analog inputs, 2 analog outputs, each 0 to 20 mA

• Configurable digital input filters

• Very short cycle times

• Optimal shield grounding on all channels

The module is equipped with 2 inputs and 2 outputs with 12-bit digital converter resolution. The range of the input/output signal is 0 to 20 mA.

Specifications

Short description

I/O module

2 analog inputs, 2 analog outputs, each 0 to 20 mA

General information

Diagnostics – Inputs	Yes, using LED status indicator and software
Diagnostics – I/O power supply	Yes, using LED status indicator and software
Connection type – X2X Link	M12, B-coded
Connection type – Inputs/Outputs	4x M12, A-coded
Connection type – I/O power supply	M8, 4-pin
Power consumption – Internal I/O	3 W
Power consumption – X2X Link power supply	0.75 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1466
Status indicators	I/O function per channel, supply voltage, bus function

I/O power supply

Power consumption – Sensor/Actuator power supply	Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors connected to the module is not permitted to exceed 12 W.">
Nominal voltage	24 VDC
Voltage range	18 to 30 VDC
Integrated protective function	Reverse polarity protection

Sensor/Actuator power supply

Voltage	I/O power supply minus voltage drop for short-circuit protection
Voltage drop for short-circuit protection at 0.5 A	Max. 2 VDC
Summation current	Max. 0.5 A
Short-circuit proof	Yes

Analog inputs

Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0010 = 4.883 µA
Output of digital value during overload – Undershoot	0x0000
Output of digital value during overload – Overshoot	0x7FFF
Max. error – Gain	0.1% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value.">
Max. error – Offset	0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Common-mode rejection – DC	>50 dB
Common-mode rejection – 50 Hz	>50 dB
Input filter – Cutoff frequency	300 Hz
Input filter – Slope	40 dB
Input	0 to 20 mA
Input type	Differential input
Digital converter resolution	12-bit
Conversion time	400 µs for both inputs
Output format	INT
Load	<300 Ω
Input protection	Protection against wiring with supply voltage
Permissible input signal	Max. ±30 V
Conversion procedure	Successive approximation
Max. gain drift	0.013 %/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured value.">
Max. offset drift	0.02 %/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Common-mode range	±11 V
Crosstalk between channels	<-70 dB
Nonlinearity	<0.1% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire measurement range.">
Insulation voltage between channel and bus	500 V eff

Analog outputs

Short-circuit proof – Current limiting	±40 mA
Short-circuit proof – To GND	Yes
Short-circuit proof – To sensor or I/O power supply	Yes
Max. error at 25°C and 50 Ω load – Gain	0.2% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. error at 25°C and 50 Ω load – Offset	0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Output	0 to 20 mA
Digital converter resolution	12-bit
Conversion time	400 µs for both outputs
Settling time on output change over entire range	Approx. 1 ms
Switch on/off behavior	Internal enable relay for startup and errors
Output protection	Protection against wiring with supply voltage, short-circuit proof
Output format	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Load per channel	Max. load is 400 Ω
Output filter	First-order low-pass filter / cutoff frequency 1.5 kHz
Max. gain drift	0.015%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. offset drift	0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Error caused by load change	Max. 0.5%, from 1 Ω → 400 Ω, resistive
Nonlinearity	<0.1% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Insulation voltage between channel and bus	500 V eff
Output response when the power supply is switched on/off	An enable relay is switched on at a defined value ≠ 0, default setting = 10 kΩ to GND

Electrical properties

Electrical isolation

Channel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	-25 to 60°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C

Mechanical properties

Dimensions – Width	53 mm
Dimensions – Height	85 mm
Dimensions – Depth	42 mm
Torque for connections – M8	Max. 0.4 Nm
Torque for connections – M12	Max. 0.6 Nm
Weight	175 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet X67AM1323	PDF · 1 MB · 3.20 (11/21/2025) - EN
X67 System User´s Manual	PDF · 21 MB · 4.40 (08/27/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X67

ZIP · 2 MB · 1.20 (03/17/2025)
