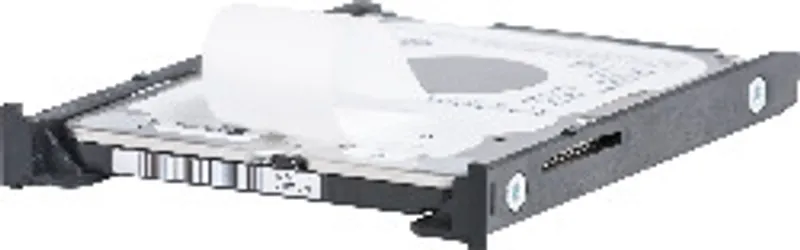

B&R 5AC901.CHDD-01 – 500 GB hard disk
MPN: 5AC901.CHDD-01 · Brand: B&R
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Drives |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 134 kg |
Shipping & availability
When can 5AC901.CHDD-01 be shipped?
5AC901.CHDD-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC901.CHDD-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC901.CHDD-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.CHDD-01, subject to availability and destination.
• 500 GB hard disk
• Slide-in compact
• Specified for 24-hour operation
• S.M.A.R.T. support
This 500 GB slide-in compact hard disk is specified for 24-hour operation. The slide-in compact drive can be used in APC910 and PPC900 system units.
Accessories
Optional accessories (1)
| 5MMHDD.0500-00 | Drives — 500 GB hard disk; Replacement hard disk for a 5AC801.HDDI-04 / 5AC901.CHDD-01 hard disk or a 5ACPCI.RAIC-06 RAID controller; Accessory for… |
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark."> |
Hard disk
| Data transfer rate – Internal | Max. 147 MB/s |
| Data transfer rate – To/From host | Max. 150 Mbit/s (SATA I), max. 300 Mbit/s (SATA II) |
| Positioning time – Nominal (read access) | 11 ms |
| Positioning time – Maximum (read access) | 21 ms |
| Capacity | 500 GB |
| Number of heads | 2 |
| Number of sectors | 976,773,168 |
| Bytes per sector | 512 (logical) / 4096 (physical) |
| Cache | 16 MB |
| Speed | 5400 rpm ±0.2% |
| Startup time | Typ. 3.5 s (from 0 rpm to read access) |
| Service life | 5 years |
| MTBF | 1,000,000 hours " data-placement="top" data-html="true" data-container="body" data-content="With 8760 POH (power-on hours) per year and 25°C surface temperature."> |
| S.M.A.R.T. support | Yes |
| Interface | SATA |
| Access time | 5.5 ms |
| Supported transfer modes | SATA II |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Operation " data-placement="top" data-html="true" data-container="body" data-content="Standard operation refers to 333 POH (power-on hours) per month."> | 0 to 60°C |
| Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – 24-hour operation " data-placement="top" data-html="true" data-container="body" data-content="24-hour operation refers to 732 POH (power-on hours) per month."> | 0 to 60°C |
| Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Storage | -40 to 70 °C |
| Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Transport | -40 to 70 °C |
| Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Operation | 8 to 90%, non-condensing |
| Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Storage | 5 to 95%, non-condensing |
| Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Transport | 5 to 95 %, non-condensing |
| Vibration – Operation (continuous) | 5 to 500 Hz: 0.25 g, no unrecoverable errors |
| Vibration – Operation (occasional) | 5 to 500 Hz: 0.5 g, no unrecoverable errors |
| Vibration – Storage | 10 to 500 Hz: 5 g, no unrecoverable errors |
| Vibration – Transport | 10 to 500 Hz: 5 g, no unrecoverable errors |
| Shock – Operation | 400 g and 2 ms duration, no unrecoverable errors |
| Shock – Storage | 1000 g and 2 ms duration, no unrecoverable errors |
| Shock – Transport | 1000 g and 2 ms duration, no unrecoverable errors |
| Elevation – Operation | -305 to 3,048 m |
| Elevation – Storage | -305 to 12,192 m |
Mechanical properties
| Dimensions – Width | 10 mm |
| Dimensions – Height | 75 mm |
| Dimensions – Depth | 105 mm |
| Installation | Permanent " data-placement="top" data-html="true" data-container="body" data-content="Slide-in compact installation."> |
| Weight | 134 g |
Vendor information
| Manufacturer | Western Digital |
| Manufacturer's product ID | WD5000LUCT |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Automation PC 910 User's Manual | PDF · 101 MB · 2.13 (08/22/2022) - EN |
| Panel PC 900 (Skylake) user's manual | PDF · 73 MB · 1.10 (08/22/2022) - EN |
| Panel PC 900 Device number key | PDF · 122 KB · 4.00 (08/23/2018) |
| Panel PC 900 User's Manual | PDF · 41 MB · 1.18 (10/24/2019) - EN |
