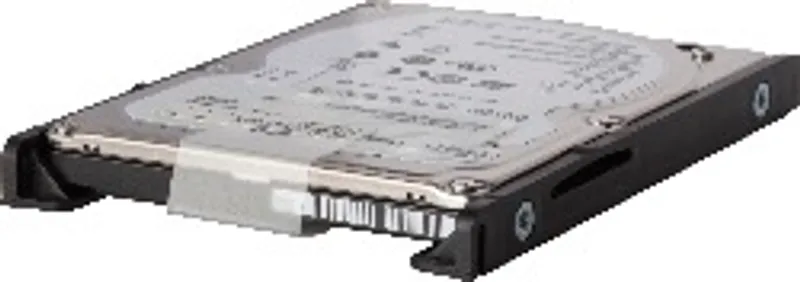

B&R 5AC901.CHDD-00 – 250 GB hard disk

Name: B&R 5AC901.CHDD-00 – 250 GB hard disk
Brand: B&R
SKU: 5AC901.CHDD-00

MPN: 5AC901.CHDD-00 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Drives
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	134 kg

Shipping & availability

When can 5AC901.CHDD-00 be shipped?

5AC901.CHDD-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5AC901.CHDD-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5AC901.CHDD-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.CHDD-00, subject to availability and destination.

• 250 GB hard disk

• Slide-in compact

• Specified for 24-hour operation

• S.M.A.R.T. support

This 250 GB slide-in compact hard disk is specified for 24-hour operation. The slide-in compact drive can be used in APC910 system units.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)

Hard disk

Data transfer rate – Internal	Max. 1175 Mbit/s
Data transfer rate – To/From host	Max. 150 Mbit/s (SATA I), max. 300 Mbit/s (SATA II)
Positioning time – Minimum (track to track)	1 ms
Positioning time – Nominal (read access)	14 ms
Positioning time – Maximum (read access)	30 ms
Capacity	250 GB
Number of heads	2
Number of sectors	488,397,168
Bytes per sector	512
Cache	8 MB
Speed	5400 rpm ±0.2%
Startup time	Typ. 3.6 s (from 0 rpm to read access)
MTBF	550,000 hours (note: With 8760 POH (power-on hours) per year and 25°C surface temperature.)
S.M.A.R.T. support	Yes
Interface	SATA
Access time	5.6 ms
Supported transfer modes	SATA 1.0, serial ATA revision 2.6; PIO mode 0-4, multiword DMA mode 0-2, UDMA mode 0-6

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 60°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.)
Temperature – 24-hour operation	0 to 60°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.)
Temperature – Storage	-40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.)
Temperature – Transport	-40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour.)
Relative humidity – Operation	5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.)
Relative humidity – Storage	5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.)
Relative humidity – Transport	5 to 95%, non-condensing (note: Humidity gradient: Maximum 30% per hour.)
Vibration – Operation (continuous)	5 to 500 Hz: 0.25 g, no unrecoverable errors
Vibration – Operation (occasional)	5 to 500 Hz: 0.5 g, no unrecoverable errors
Vibration – Storage	10 to 500 Hz: 5 g, no unrecoverable errors
Vibration – Transport	10 to 500 Hz: 5 g, no unrecoverable errors
Shock – Operation	350 g and 2 ms duration, no unrecoverable errors
Shock – Storage	800 g and 2 ms duration, no unrecoverable errors; 800 g and 1 ms duration, no unrecoverable errors; 600 g and 0.5 ms duration, no unrecoverable errors
Shock – Transport	800 g and 2 ms duration, no unrecoverable errors; 800 g and 1 ms duration, no unrecoverable errors; 600 g and 0.5 ms duration, no unrecoverable errors
Elevation – Operation	-300 to 3048 m
Elevation – Storage	-300 to 12192 m
