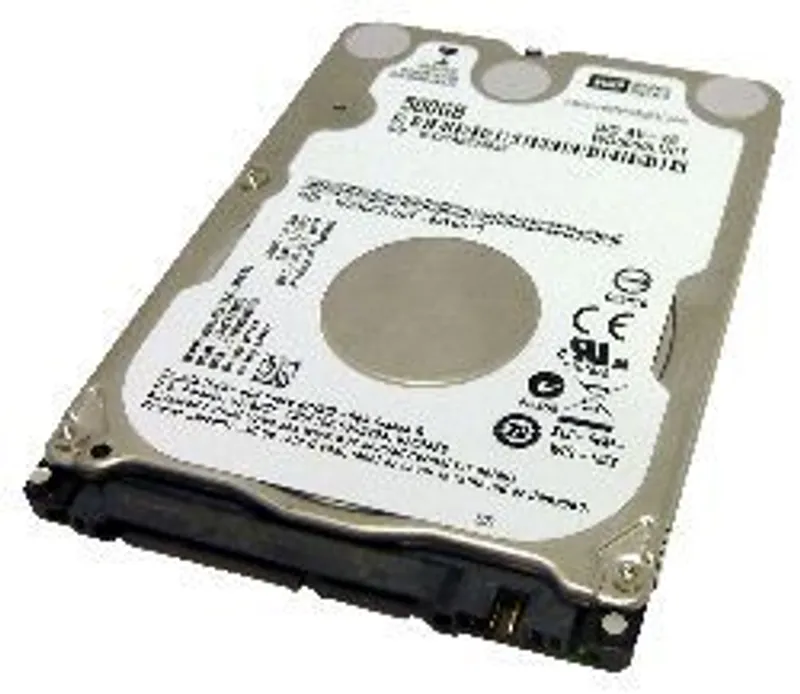

B&R 5MMHDD.0500-00 – 500 GB hard disk

Name: B&R 5MMHDD.0500-00 – 500 GB hard disk
Brand: B&R
SKU: 5MMHDD.0500-00

MPN: 5MMHDD.0500-00 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Drives
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	100 kg

Shipping & availability

When can 5MMHDD.0500-00 be shipped?

5MMHDD.0500-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5MMHDD.0500-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5MMHDD.0500-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MMHDD.0500-00, subject to availability and destination.

• 500 GB hard disk

• Replacement hard disk for a 5AC801.HDDI-04 / 5AC901.CHDD-01 hard disk or a 5ACPCI.RAIC-06 RAID controller

• Accessory for the APC510 (optional hard disk for I/O board)

• Specified for 24-hour operation

• S.M.A.R.T. support

This 500 GB hard disk can be used as a replacement part or accessory.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.">

Hard disk

Data transfer rate – Internal	Max. 147 MB/s
Data transfer rate – To/From host	Max. 150 Mbit/s (SATA I), max. 300 Mbit/s (SATA II)
Positioning time – Nominal (read access)	11 ms
Positioning time – Maximum (read access)	21 ms
Capacity	500 GB
Number of heads	2
Number of sectors	976,773,168
Bytes per sector	512 (logical) / 4096 (physical)
Cache	16 MB
Speed	5400 rpm ±0.2%
Startup time	Typ. 3.5 s (from 0 rpm to read access)
Service life	5 years
MTBF	1,000,000 hours " data-placement="top" data-html="true" data-container="body" data-content="With 8760 POH (power-on hours) per year and 25°C surface temperature.">
S.M.A.R.T. support	Yes
Interface	SATA
Access time	5.5 ms
Supported transfer modes	SATA II

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Operation " data-placement="top" data-html="true" data-container="body" data-content="Standard operation refers to 333 POH (power-on hours) per month.">	0 to 60°C
Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – 24-hour operation " data-placement="top" data-html="true" data-container="body" data-content="24-hour operation refers to 732 POH (power-on hours) per month.">	0 to 60°C
Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Storage	-40 to 70 °C
Temperature " data-placement="top" data-html="true" data-container="body" data-content="Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 20°C per hour."> – Transport	-40 to 70 °C
Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Operation	8 to 90%, non-condensing
Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Storage	5 to 95%, non-condensing
Relative humidity " data-placement="top" data-html="true" data-container="body" data-content="Humidity gradient: Maximum 20% per hour."> – Transport	5 to 95 %, non-condensing
Vibration – Operation (continuous)	5 to 500 Hz: 0.25 g, no unrecoverable errors
Vibration – Operation (occasional)	5 to 500 Hz: 0.5 g, no unrecoverable errors
Vibration – Storage	10 to 500 Hz: 5 g, no unrecoverable errors
Vibration – Transport	10 to 500 Hz: 5 g, no unrecoverable errors
Shock – Operation	400 g and 2 ms duration, no unrecoverable errors
Shock – Storage	1000 g and 2 ms duration, no unrecoverable errors
Shock – Transport	1000 g and 2 ms duration, no unrecoverable errors
Elevation – Operation	-305 to 3,048 m
Elevation – Storage	-305 to 12,192 m

Mechanical properties

Dimensions – Width	7 mm
Dimensions – Height	69 mm
Dimensions – Depth	100 mm
Weight	100 g

Vendor information

Manufacturer	Western Digital
Manufacturer's product ID	WD5000LUCT

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 510 User's manual	PDF · 11 MB · 1.20 (04/30/2015) - EN
Automation PC 810 User's Manual	PDF · 30 MB · 1.58 (04/30/2015) - EN
Automation PC 810 with GM45 CPU board User's Manual	PDF · 34 MB · 1.38 (04/30/2015) - EN
Automation PC 910 Device number key	PDF · 627 KB · 9.00 (11/18/2022)
Automation PC 910 User's Manual	PDF · 101 MB · 2.13 (08/22/2022) - EN
Panel PC 800 User's Manual	PDF · 20 MB · 1.31 (05/05/2015) - EN
Panel PC 800 with GM45 CPU board User's Manual	PDF · 23 MB · 1.21 (05/05/2015) - EN
Panel PC 800 with NM10 CPU board User's Manual	PDF · 22 MB · 1.21 (05/05/2015) - EN
