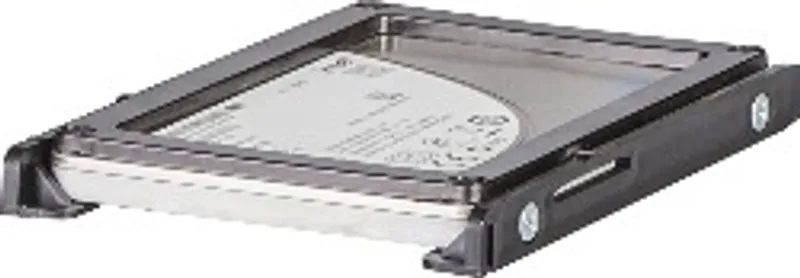

B&R 5AC901.CSSD-01 – 60 GB solid-state drive

Name: B&R 5AC901.CSSD-01 – 60 GB solid-state drive
Brand: B&R
SKU: 5AC901.CSSD-01

MPN: 5AC901.CSSD-01 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Drives
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	118 kg

Shipping & availability

When can 5AC901.CSSD-01 be shipped?

5AC901.CSSD-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5AC901.CSSD-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5AC901.CSSD-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.CSSD-01, subject to availability and destination.

• 60 GB solid-state drive

• MLC flash memory

• S.M.A.R.T. support

• Slide-in compact

• Compatible with SATA 3.0

This 60 GB slide-in compact solid-state drive (SSD) is based on multi-level cell (MLC) technology and is SATA 3.0 compatible. The slide-in compact drive can be used in APC910 system units.

Accessories

Optional accessories (1)

5MMSSD.0060-00

Drives — Replacement for 5AC801.SSDI-01 or 5AC901.CSSD-01 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 60 GB solid-state d…

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.">
Certifications – CCS	Yes
Certifications – ABS	Yes

Solid-state drive

IOPS " data-placement="top" data-html="true" data-container="body" data-content="IOPS: Random read and write input/output operations per second"> – Typical	23,000
IOPS " data-placement="top" data-html="true" data-container="body" data-content="IOPS: Random read and write input/output operations per second"> – Maximum	80,000
IOPS " data-placement="top" data-html="true" data-container="body" data-content="IOPS: Random read and write input/output operations per second"> – 4k read	15,000
Capacity	60 GB
Data reliability	<1 unrecoverable error per 10 16 bits read
MTBF	1,200,000 hours
S.M.A.R.T. support	Yes
Interface	SATA
Servicing	None
Continuous reading	Max. 550 MB/s, with SATA 6 Gbit/s; Max. 280 MB/s, with SATA 3 Gbit/s
Continuous writing	Max. 475 MB/s, with SATA 6 Gbit/s; Max. 245 MB/s, with SATA 3 Gbit/s

Endurance

MLC flash memory	Yes
Compatibility	SATA 3.0 compliant; ACS-2; SSD Enhanced SMART ATA feature set; Native Command Queuing (NCQ)

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 70°C
Temperature – Storage	-55 to 95°C
Temperature – Transport	-55 to 95°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Vibration – Operation	5 to 700 Hz: 2.17 g
Vibration – Storage	5 to 800 Hz: 3.13 g
Vibration – Transport	5 to 800 Hz: 3.13 g
Shock – Operation	1500 g, 0.5 ms
Shock – Storage	1500 g, 0.5 ms
Shock – Transport	1500 g, 0.5 ms
Elevation – Operation	-300 to 12,192 m
Elevation – Storage	-300 to 12,192 m
Elevation – Transport	-300 to 12,192 m

Mechanical properties

Dimensions – Width	13 mm
Dimensions – Height	98 mm
Dimensions – Depth	105 mm
Installation	Permanent " data-placement="top" data-html="true" data-container="body" data-content="Slide-in compact installation.">
Weight	118 g
