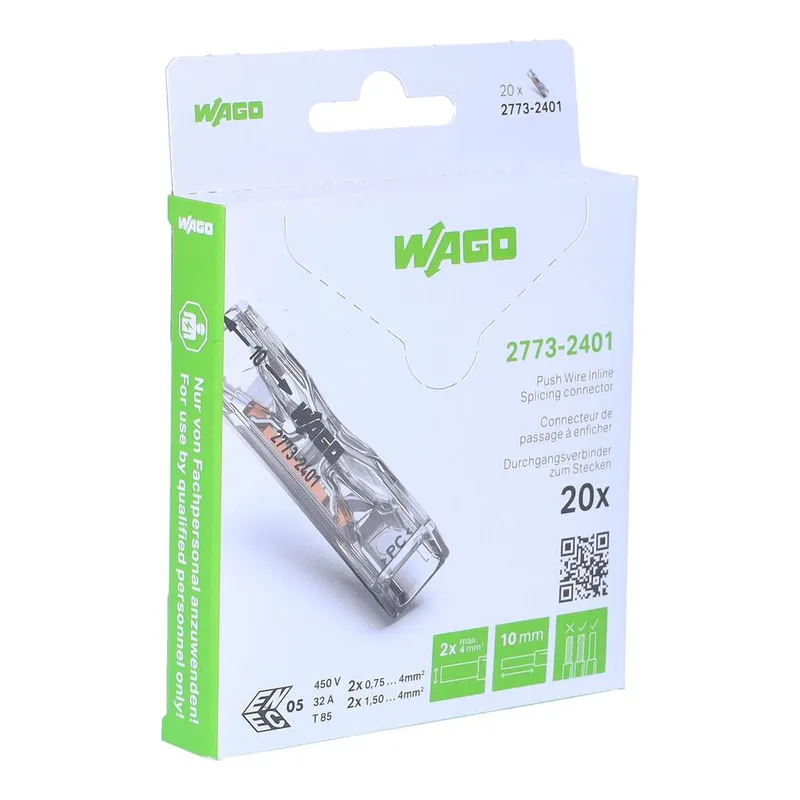

PUSH WIRE® Inline Splicing Connector; for solid and stranded conductors; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²

<h2>Push wire® inline splicing connector, 2773 Series, PUSH WIRE®</h2><br/><br/>Push wire® inline splicing connector (item number 2773-2401/995-020) simplifies electrical installations. This series of PUSH WIRE® connectors ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Ensure that the strip lengths are between 10 and 11 mm  when connecting conductors to push wire® inline splicing connector. Our splicing connector is rated for 450 V and is designed to handle a rated current of up to 32 A. As such, it is suitable for high-load applications. Featuring conductor terminals along with PUSH WIRE®, this product outperforms the competition. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. Dimensions: (6.15 x 6.8 x 29.5) mm (width x height x depth). Depending on the conductor type, push wire® inline splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm².<br/><br/><h3></h3><br/><br/>Tin is used for coating the contact surfaces.<br/>
