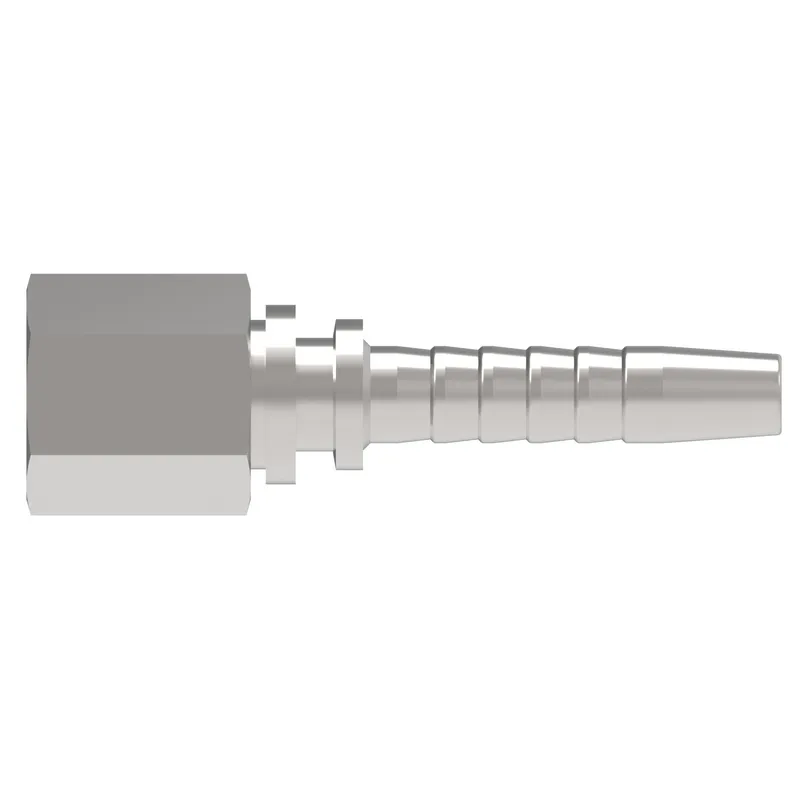

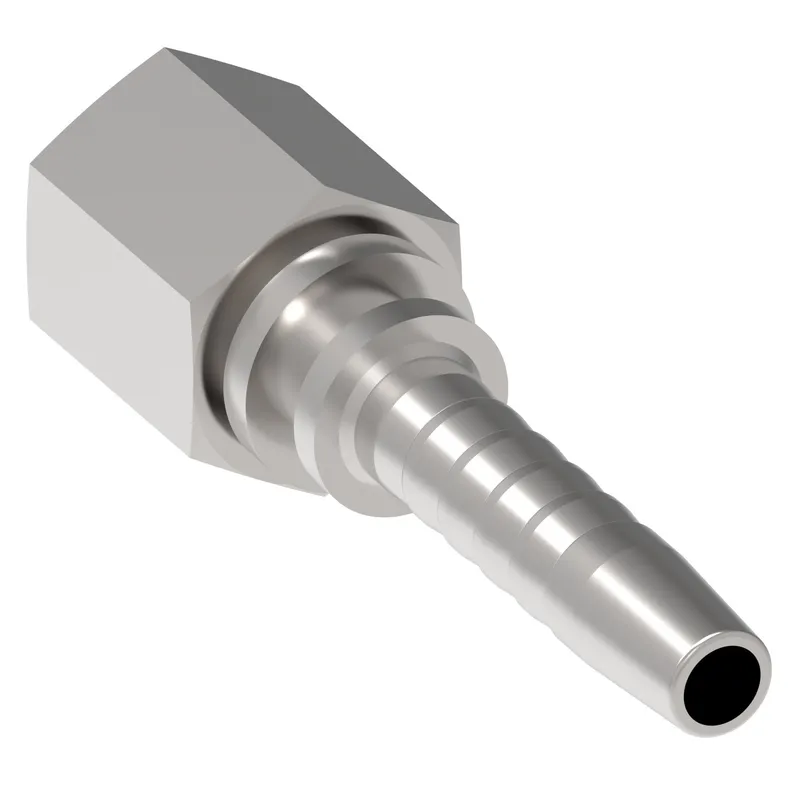

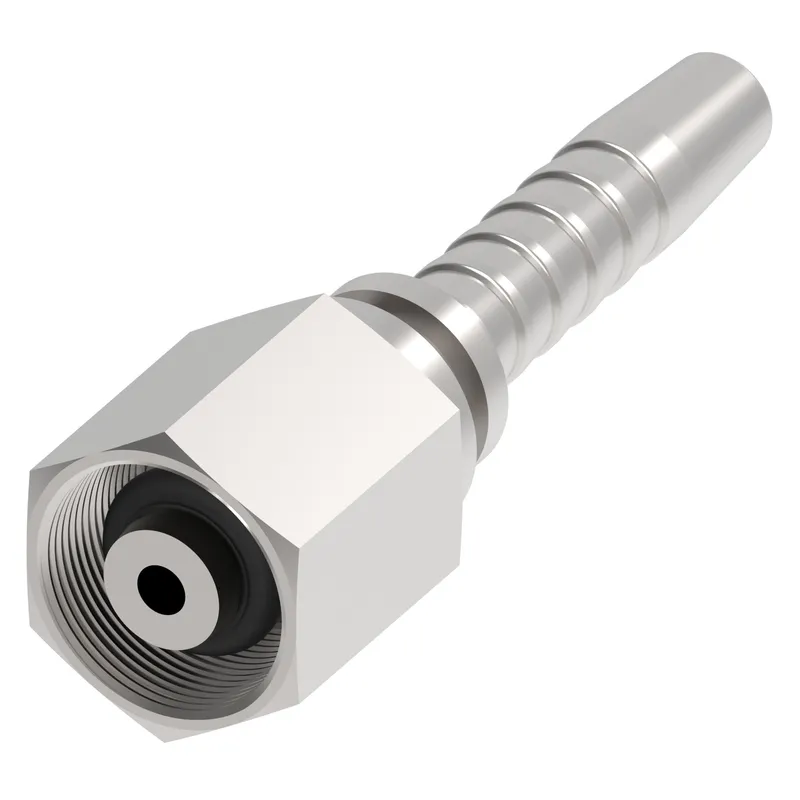

HOSE NIPPLE, 2P/05, DKOH-B/16, AP, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20511-16-05SVW be shipped?
20511-16-05SVW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20511-16-05SVW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20511-16-05SVW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511-16-05SVW, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/05, DKOH-B/16, AP, STR, manufacturer part number 20511-16-05SVW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.244 |
| A dimension MM | 57.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.310 |
| Compatible hose ID MM | 7.900 |
| Construction Style | Crimp |
| End size 1 | -16 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Hose cut off factor IN | 1.141 |
| Hose cut off factor MM | 29.000 |
| Hose size | -5 |
| Inside diameter IN | 0.216 |
| Inside diameter MM | 5.500 |
| Product height in | 0.550 |
| Product height mm | 13.970 |
| Product length in | 2.240 |
| Product length mm | 56.896 |
| Product material | 316L Stainless steel |
| Product width in | 0.550 |
| Product width mm | 13.97 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Working pressure max BAR | 280 |
| Working pressure max PSI | 4050 |
