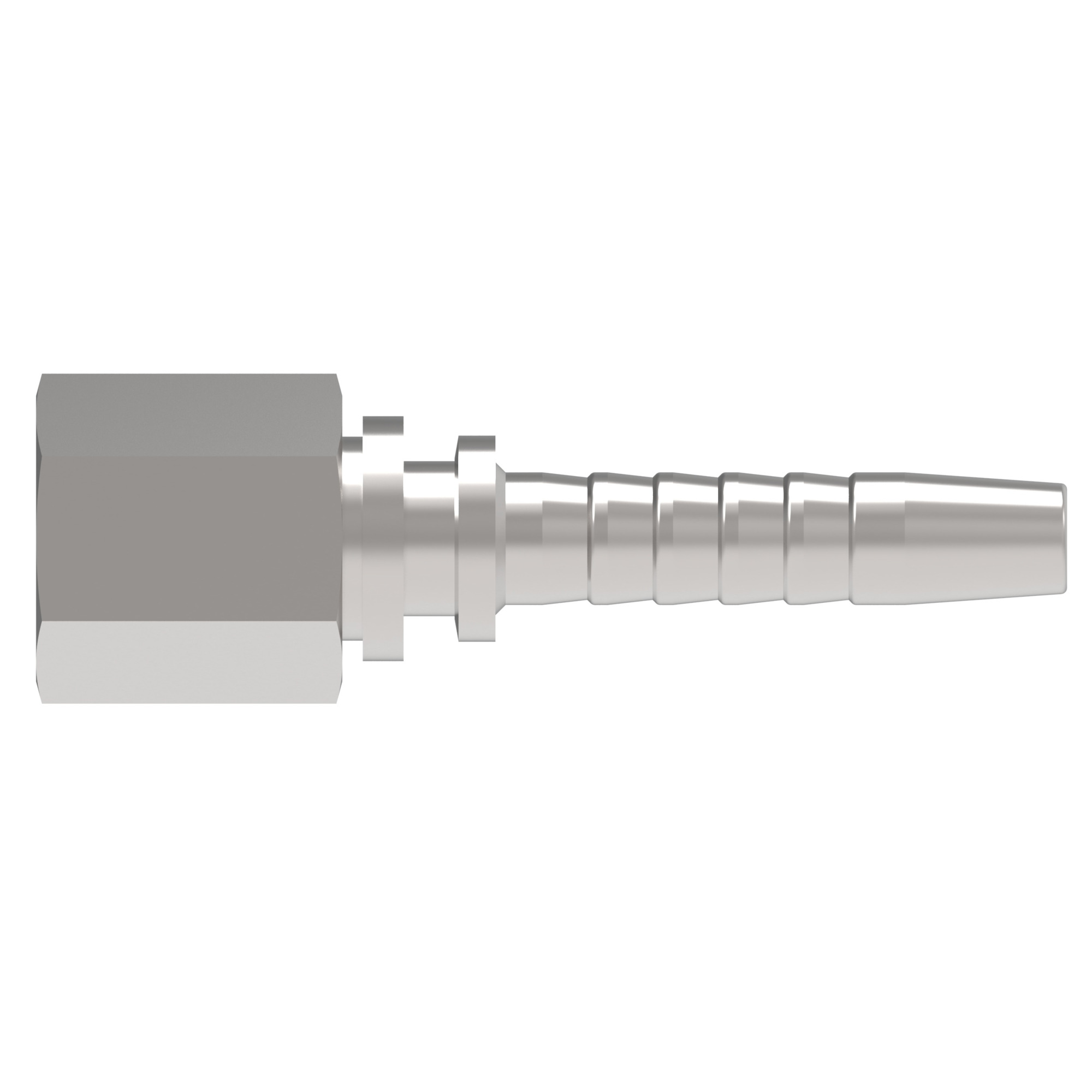

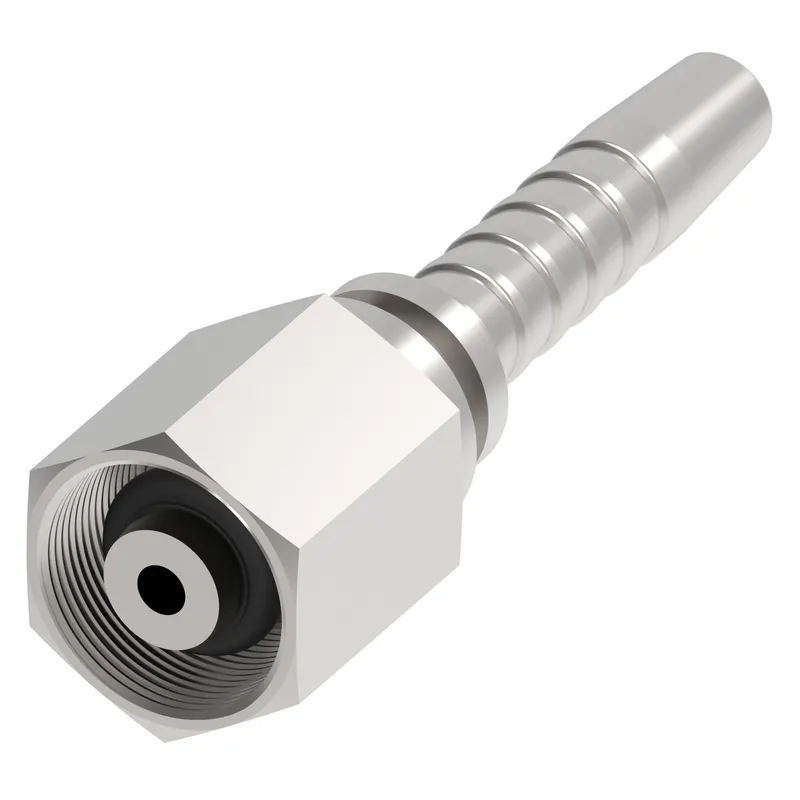

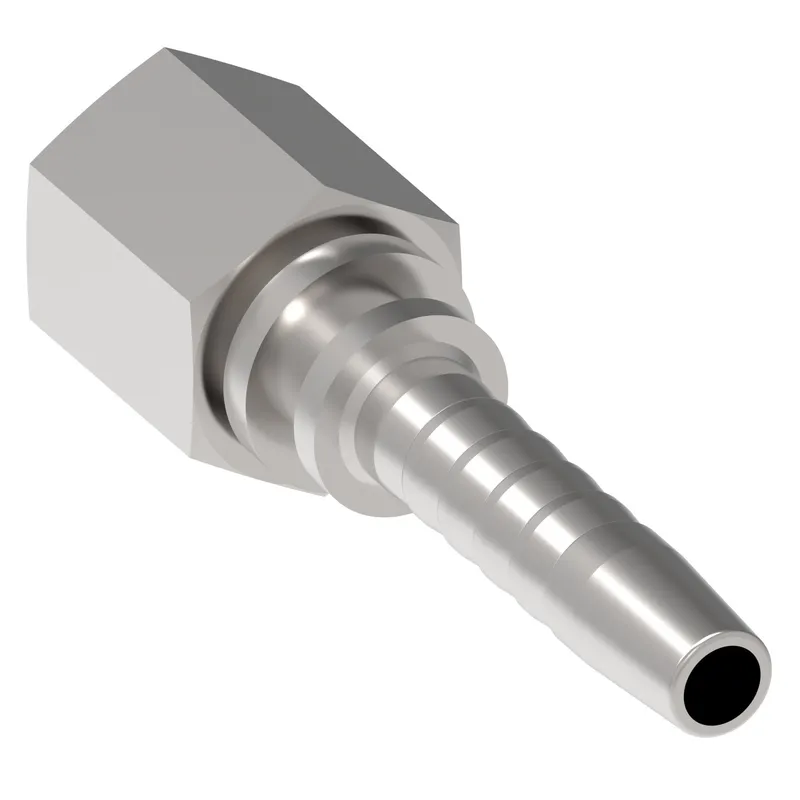

HOSE NIPPLE ASSY,2P/04,DKOH-B/16,AP,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20511-16-04SVT be shipped?
20511-16-04SVT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20511-16-04SVT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20511-16-04SVT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511-16-04SVT, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/04,DKOH-B/16,AP,STR, manufacturer part number 20511-16-04SVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.900 |
| A dimension MM | 48.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Crimp |
| End size 1 | -16 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Hex size 1 IN | 0.748 |
| Hex size 1 MM | 19.000 |
| Hose cut off factor IN | 0.800 |
| Hose cut off factor MM | 20.500 |
| Hose size | -4 |
| Inside diameter IN | 0.150 |
| Inside diameter MM | 4.000 |
| Product height in | 0.748 |
| Product height mm | 19.000 |
| Product length in | 1.980 |
| Product length mm | 50.300 |
| Product material | 316L Stainless steel |
| Product width in | 0.748 |
| Product width mm | 19 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M16x1.5 |
| Tube OD 1 IN | 0.310 |
| Tube OD 1 MM | 8.000 |
| Working pressure max BAR | 280 |
| Working pressure max PSI | 4050 |
More Danfoss (Drives) parts

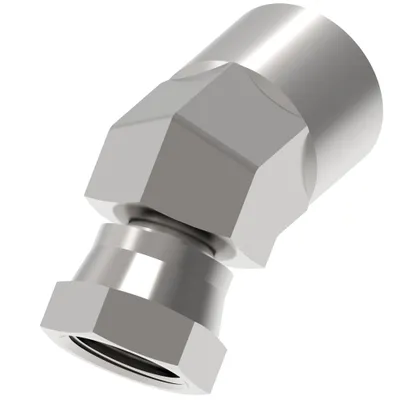

Available on requestAdapter, NPTF/SM45 elbow xxxBTFxxxxxx
