B&R 8CCH0021.11230-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hybrid cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 7.56 kg |
Shipping & availability
When can 8CCH0021.11230-1 be shipped?
8CCH0021.11230-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8CCH0021.11230-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8CCH0021.11230-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCH0021.11230-1, subject to availability and destination.

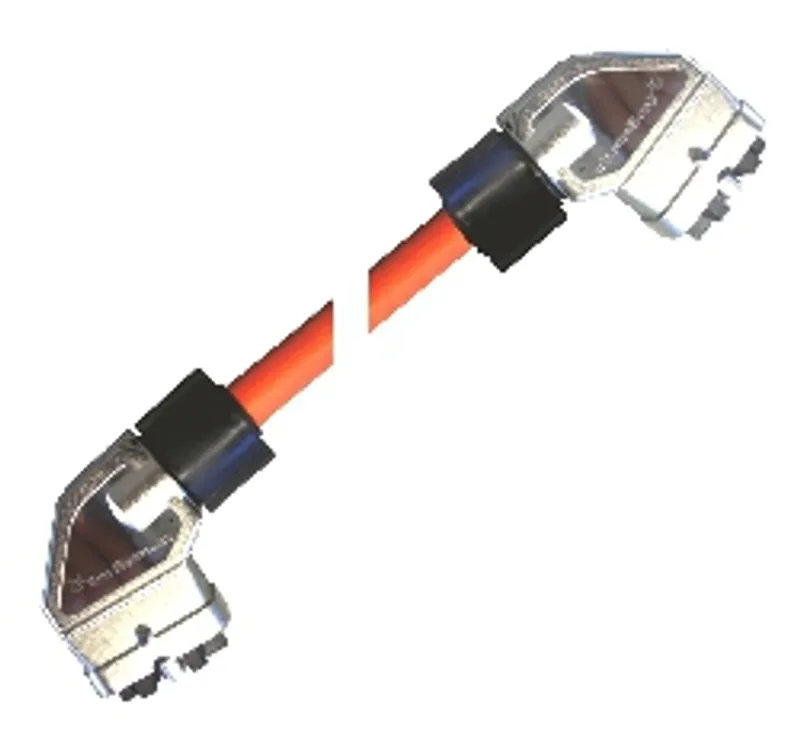

Hybrid cable, length 21 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 2x 15-pin female TYCO connector, connector insert rotated 180°, can be used in cable drag chains
Specifications
Specifications
| Cable cross section | 5x 2.5 mm² + 2x 2x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 VZN |
| Durability | In preparation |
| Short description | Connector insert in both hybrid connectors rotated 180° degrees |
| Certification | E130266 cURus AWM style 20234, 80°C, 1000 V and CSA C22.2 No. 210.2 I/II A/B, FT1 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| Quantity | 4 |
| Wire insulation | PE |
| Wire colors | VZN (cat. 5) |
| Variant | Tinned copper stranded wire |
| Cross section | 0.34 mm² |
| Shield | Yes |
| Stranding | Yes |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
| Material | PUR |
| Color | Orange, similar to RAL 2003 flat |
| Labeling | B&R 5x2.5 + 2x2x0.75 + (1x4x22AWG) * E130266 cURus AWM STYLE 20234 * AWM I/II A/B 80°C 1000 V FT1 * "internal lot number" |
| Type | 15-pin female TYCO connector |
| Mating cycles | Max. 20 |
| Contacts | 15 |
| Degree of protection per EN 60529 | IP65 |
| Operating voltage | Power lines: ≤1000 V Signal lines: ≤1000 V Data lines: ≤100 V |
| Wire - Wire | 2.5 mm²: 3 kV 0.75 mm²: 2 kV 0.34 mm²: 2 kV |
| Wire - Shield | 2.5 mm²: 3 kV 0.75 mm²: 1 kV 0.34 mm²: 1 kV |
| Power lines | ≤8 Ω/km |
| Signal line | ≤26 Ω/km |
| Data lines | ≤56 Ω/km |
| Insulation resistance | ≥500 MΩ*km |
| Wall mounting | 23.7 A |
| Installed in conduit or cable duct | 27.3 A |
| Installed in cable tray | 29.1 A |
| Moving | ≥150 mm |
| Static | -40°C to 80°C |
| Length | 21 m |
| Diameter | 14.6 mm ±0.4 mm |
| Single bend | >60 mm |
| Acceleration | Max. 50 m/s² (depends on the length of the travel path) |
| Flex cycles | ≥5,000,000 |
| Velocity | Max. 300 m/min |
| Weight | 7.56 kg |
