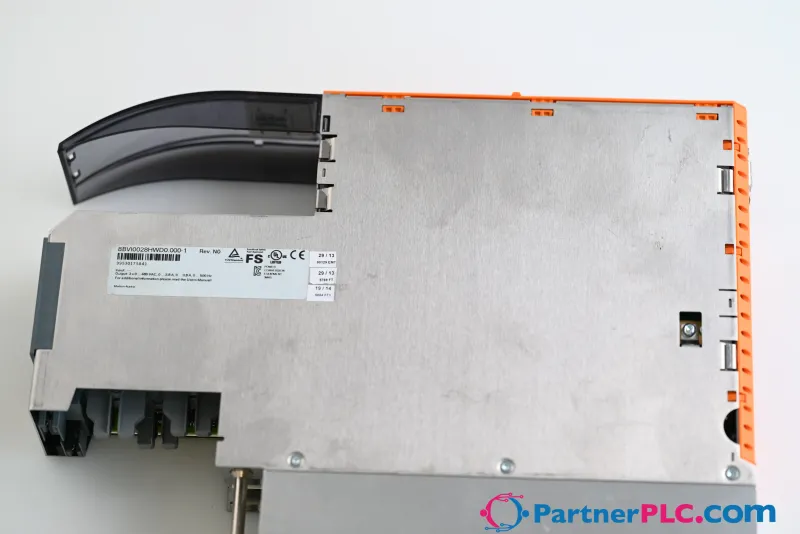

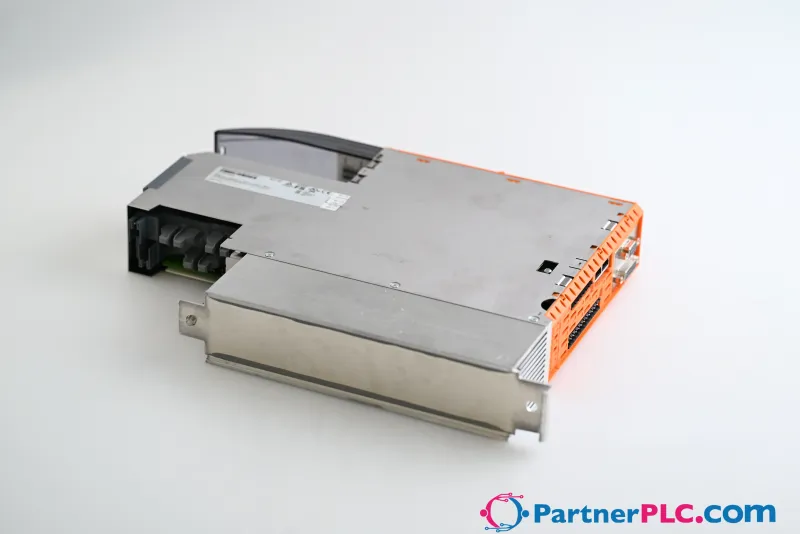

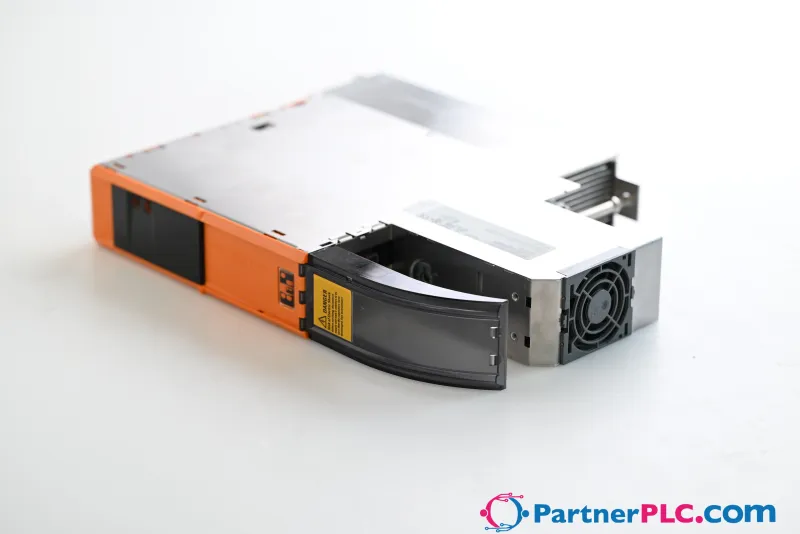

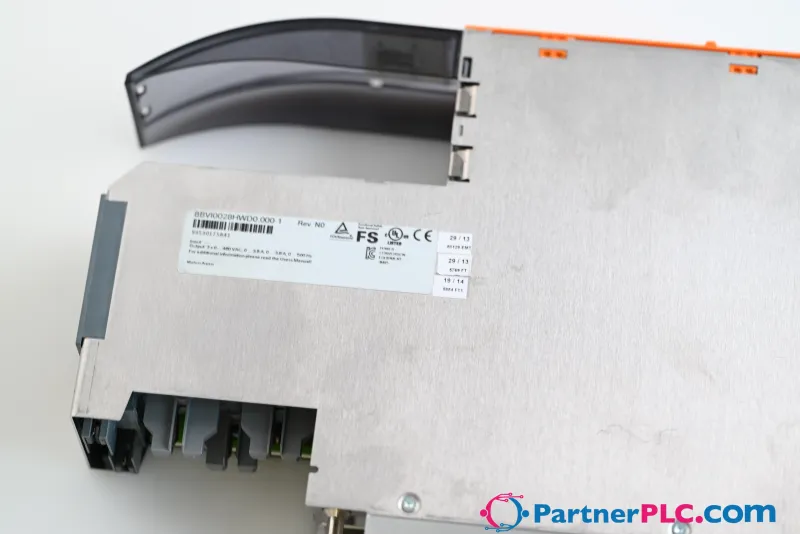

B&R 8BVI0028HWD0.000-1 Used Rev.O0 – Integrated uncontrolled standstill and safe stop
MPN: 8BVI0028HWD0.000-1 · Brand: B&R
€422.94 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 3 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8BVI0028HWD0.000-1 be shipped?
8BVI0028HWD0.000-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8BVI0028HWD0.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8BVI0028HWD0.000-1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0028HWD0.000-1, subject to availability and destination.
• Integrated uncontrolled standstill and safe stop
• Integrated connection for motor holding brake and temperature sensor
• 2 slots for ACOPOSmulti plug-in modules
• Two fully independent power inverters in one inverter module contained in 2-axis modules
ACOPOSmulti inverter module, 3.8 A, AS, wall mounting, 2 axes
Accessories
Required accessories (order separately)
| 8BZVI0055D0.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxD0 modules: 1x 8TB2112.2010-00, 1x 8TB2108.2010-00, 1x 8TB2104.203L-00, 1x 8TB2104… |
Optional accessories (31)
| 8BXB000.0000-00 | Accessory sets — ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder |
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8BAC0133.000-1 | Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42… |
| 8BAC0132.000-1 | Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±… |
| 8BAC0130.001-1 | Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu… |
| 8BAC0130.000-1 | Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs… |
| 8BAC0125.000-1 | Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller… |
| 8BAC0124.000-1 | Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply… |
| 8BAC0123.002-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.001-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.000-1 | Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with… |
| 8BAC0122.000-1 | Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf… |
| 8BAC0121.000-1 | Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte… |
| 8BAC0120.001-2 | Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors… |
| 8BAC0120.000-1 | Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded… |
| 8SCS009.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS005.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x slot cover / shield plate |
| 8SCS002.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB3104.204K-11 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding K: 1001 |
| 8TB3104.204G-11 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110 |
| 8TB2112.2010-00 | Terminal blocks — 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2108.2010-00 | Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.203L-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010 |
| 8TB2104.203F-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding F: 0101 |
Specifications
General information
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0x26E1 |
| Cooling and mounting type | Wall mounting |
| Slots for plug-in modules | 2 |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> = 0.5 * (I<sub>X5A</sub> + I<sub>X5B</sub>)<br>I<sub>X5A</sub> ... Current on motor connection X5A [A<sub>eff</sub>]<br>I<sub>X5B</sub> ... Current on motor connection X5B [A<sub>eff</sub>]"> – Switching frequency 5 kHz | [1.2 * I M ² + 2.62 * I M + 100] W |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> = 0.5 * (I<sub>X5A</sub> + I<sub>X5B</sub>)<br>I<sub>X5A</sub> ... Current on motor connection X5A [A<sub>eff</sub>]<br>I<sub>X5B</sub> ... Current on motor connection X5B [A<sub>eff</sub>]"> – Switching frequency 10 kHz | [2.56 * I M ² + 2.8 * I M + 200] W |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> = 0.5 * (I<sub>X5A</sub> + I<sub>X5B</sub>)<br>I<sub>X5A</sub> ... Current on motor connection X5A [A<sub>eff</sub>]<br>I<sub>X5B</sub> ... Current on motor connection X5B [A<sub>eff</sub>]"> – Switching frequency 20 kHz | [6 * I M ² - 9.4 * I M + 430] W |
| Continuous power consumption " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 5.73 kW |
| DC bus capacitance | 165 µF |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 23.5 µF |
| Max. power consumption | 16 W + P SLOT1 + P SLOT2 + P 24 V Out + P HoldingBrake(s) " data-placement="top" data-html="true" data-container="body" data-content="P<sub>SLOT1</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT1 (see the technical data for the respective plug-in module). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W)."> |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Output voltage – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC /315) |
| Output voltage – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Quantity | 2 |
| Fuse protection | 250 mA (slow-blow) electronic, automatic reset |
Motor connection
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 5 kHz | No reduction |
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 10 kHz | No reduction |
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 20 kHz | 0.12 A/K (starting at 13°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the ambient temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies."> |
| Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | 0.38 A eff per 1000 m |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
| Variant – Shield connection | Yes |
| Terminal connection cross section – With wire end sleeve | 0.25 to 6 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 10 AWG |
| Terminal connection cross section – CSA | 28 to 10 AWG |
| Max. motor line length depending on switching frequency – Switching frequency 5 kHz | 25 m |
| Max. motor line length depending on switching frequency – Switching frequency 10 kHz | 25 m |
| Max. motor line length depending on switching frequency – Switching frequency 20 kHz | 10 m |
| Quantity | 2 |
| Continuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 2.8 kW |
| Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 3.8 A eff |
| Peak current per motor connection | 9.5 A eff |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization. When using 2-axis modules, the increased CPU utilization reduces the functionality of the drive; if this is not taken into account, the computing time can be exceeded in extreme cases."> | 5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 " data-placement="top" data-html="true" data-container="body" data-content="If necessary, the stress of the motor isolation system can be reduced by an additional externally wired dv/dt choke. For example, the RWK 305 three-phase dv/dt choke from Schaffner (www.schaffner.com) can be used. IMPORTANT: Even when using a dv/dt choke, it is necessary to ensure that an EMC-compatible, low inductance shield connection is used!"> | Limit value curve A " data-placement="top" data-html="true" data-container="body" data-content="Only applies when using B&R motor cables and B&R motors."> |
| Max. output frequency | 598 Hz " data-placement="top" data-html="true" data-container="body" data-content="The module's electrical output frequency (SCTRL_SPEED_ACT * MOTOR_POLEPAIRS) is monitored to protect against dual use in accordance with Regulation (EC) 428/2009 | 3A225. If the electrical output frequency of the module exceeds the limit value of 598 Hz uninterrupted for more than 0.5 s, then the current movement is aborted and error 6060 is output ("Power unit: Limit speed exceeded")."> |
| Terminal cable cross section dimension of shield connection | 12 to 22 mm |
Motor holding brake connection
| Protective measures – Overload and short-circuit protection | Yes |
| Protective measures – Open-circuit monitoring | Yes |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 2 |
| Output voltage " data-placement="top" data-html="true" data-container="body" data-content="During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used."> | 24 VDC +5.8% / -0% " data-placement="top" data-html="true" data-container="body" data-content="The specified value is only valid under the following conditions: <br>- The 24 VDC power supply for the module is provided by an 8B0C auxiliary supply module located on the same mounting plate. <br>- Connection of connectors S1 and S2 (activation of the external holding brake) by a jumper with a maximum length of 10 cm. <br>If the 24 VDC power supply for the module is applied to the mounting plate using an 8BVE expansion module, then the output voltage is reduced because of voltage drops on the expansion cable. In this case, undervoltage monitoring must be disabled. <br>If jumpers longer than 10 cm are used to connect connectors S1 and S2, then the output voltage is reduced due to voltage drops on the jumpers."> |
| Continuous current per connection | 1.1 A |
| Max. internal resistance | 0.5 Ω |
| Extinction potential | Approx. 30 V |
| Max. extinction energy per switching operation | 1.5 Ws |
| Max. switching frequency | 0.5 Hz |
| Response threshold for open-circuit monitoring | Approx. 0.25 A |
| Response threshold for undervoltage monitoring | 24 VDC +0% / -4% |
Enable inputs
| Electrical isolation – Input - Inverter module | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay at nominal input voltage – Enable 1 → 0, PWM off | Max. 20.5 ms |
| Switching delay at nominal input voltage – Enable 0 → 1, ready for PWM | Max. 100 µs |
| Quantity | 4 (2 per axis) |
| Circuit | Sink |
| Input current at nominal voltage | Approx. 30 mA |
| Modulation compared to ground potential | Max. ±38 V |
| OSSD signal connections " data-placement="top" data-html="true" data-container="body" data-content="Output signal switching device (OSSD) signals are used for monitoring signal lines for short circuits and cross faults."> | Permitted ; Max. test pulse length: 500 µs |
Trigger inputs
| Electrical isolation – Input - Inverter module | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay – Rising edge | 52 µs ±0.5 µs (digitally filtered) |
| Switching delay – Falling edge | 53 µs ±0.5 µs (digitally filtered) |
| Quantity | 2 |
| Circuit | Sink |
| Input current at nominal voltage | Approx. 10 mA |
| Modulation compared to ground potential | Max. ±38 V |
Temperature sensor connection
| Quantity | 2 |
| Resistance range | 500 Ω to 5 kΩ |
Electrical properties
| Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Power dissipation relative to continuous apparent power " data-placement="top" data-html="true" data-container="body" data-content="Continuous apparent power S[VA] = √3 * UMains[Vrms] * IMains[Arms]. IE2 notation (a,b) stands respectively for a load point with frequency a (as a percentage of the nominal frequency of the motor) and current b (as a percentage of the continuous current)."> | IE2 (10,25) 3.3% ; IE2 (50,25) 3.3% ; IE2 (10,50) 3.5% ; IE2 (50,50) 3.5% ; IE2 (90,50) 3.5% ; IE2 (10,100) 4% ; IE2 (50,100) 4% ; IE2 (90,100) 4% |
| Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Nominal losses in standby mode | 8.8 W |
| Discharge capacitance | 0.2 µF |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R."> | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Wall mounting | 263 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Width | 53 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Height | 317 mm |
| Weight | Approx. 2.8 kg |
| Module width | 1 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8BVI0028HWD0.000-1 | PDF · 2 MB · 1.10 (02/19/2024) - EN |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D file STEP 8BVI0028HWD0.000-x | ZIP · 144 KB · 1.1 (04/28/2016) |
Certificates (8)
| ACOPOSmulti KC certificates | ZIP · 3 MB · 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | PDF · 183 KB · 2.10 (07/20/2022) |
| EU Declaration FS Servos ACOPOSmulti | PDF · 989 KB · 2026-06 (07/08/2026) - EN |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| TÜV-certificate - function "Safe Pulse Disabling" for ACOPOSmulti | PDF · 1 MB · 2.10 (06/26/2026) |
| UK Declaration FS Servos ACOPOSmulti | PDF · 340 KB · 2026-06 (07/08/2026) - EN |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
