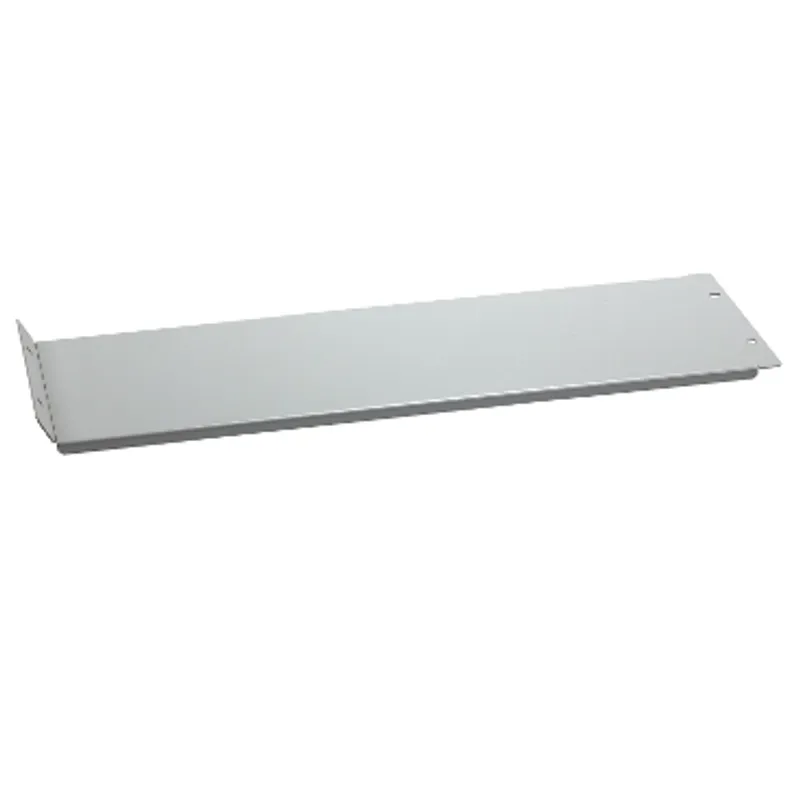

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm steel;H300mm
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | PanelSeT SM |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
| Peso | 3.8 kg |
Spedizione e disponibilità
Quando può essere spedito NSYMPCH308?
NSYMPCH308 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare NSYMPCH308 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per NSYMPCH308 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per NSYMPCH308, in base a disponibilità e destinazione.
Hinged plain grey cover plate (RAL 7035) made from steel for Spacial SF and Spacial SM enclosures Mounted by screws on chassis coupling set The nominal width is 800mm, fixing centers width is 678mm and real width is 702mm The nominal height is 300mm and real height is 299,5mm The real depth is 12mm Suitable for enclosures of 800 width 300mm The kit is made up of fixing elements, 1 cover plate and hinges
Specifiche
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Cover plate |
| Anwendung | Multi-purpose |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Nominal dimensions of the housing | - H: 300 mm W: 800 mm |
| Mounting location | On chassis coupling set |
| Device composition | Fixing elements, 1 cover plate, hinges |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws |
| Type of front plate | Hinged plain |
| Height | Nominal: 300 mm, Real: 299.5 mm |
| Width | Nominal: 800 mm, Fixing centers: 678 mm, Real: 702 mm |
| Depth | Real : 12 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 70.500 cm |
| Package 1 Length | 31.000 cm |
| Package 1 Weight | 3.804 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 241.000 kg |
| Warranty | 18 months |
