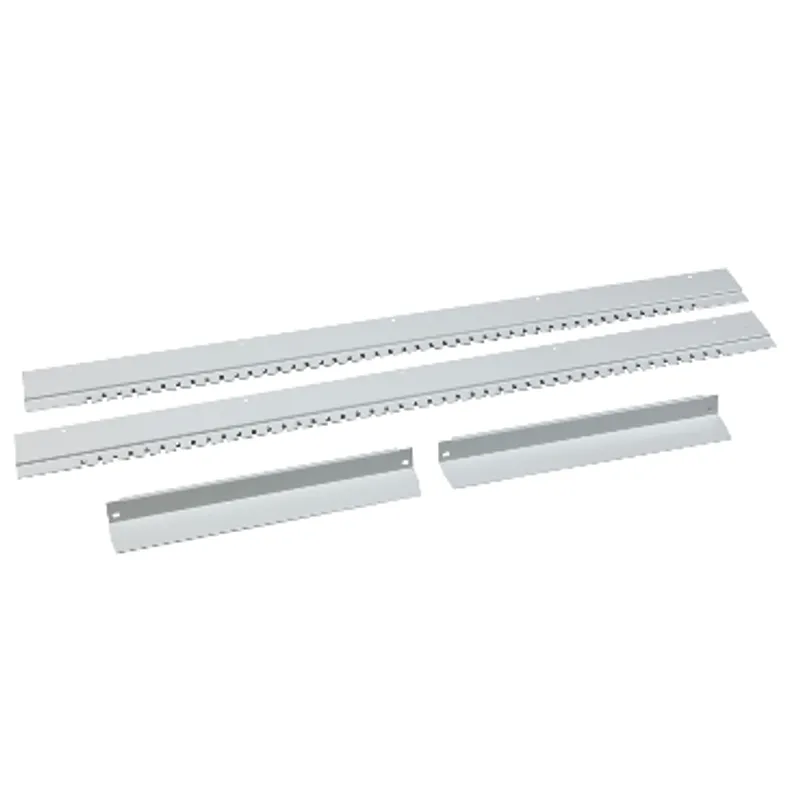

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1600 W600mm, 216 modules of 18mm
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | PanelSeT SM |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
| Peso | 6.63 kg |
Spedizione e disponibilità
Quando può essere spedito NSYCSH166?
NSYCSH166 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare NSYCSH166 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per NSYCSH166 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per NSYCSH166, in base a disponibilità e destinazione.
Coupling kit for Spacial SM and Spacial SF enclosures The coupling kit is to be fixed on front of enclosure by fixing elements The real width is 502mm and nominal width is 600mm The real height is 1505mm and nominal height is 1600mm The real depth is 100mm Number of 18mm modules is 216 (1 module = 2 steps = 18 mm) The product is made from grey steel (RAL 7035)
Specifiche
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 2 horizontal crossbars, 2 vertical uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 216 |
| Height | Real: 1505 mm, Nominal: 1600 mm |
| Width | Real: 502 mm, Nominal: 600 mm |
| Depth | Real : 100 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 157.500 cm |
| Package 1 Weight | 6.626 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 200.000 cm |
| Package 2 Weight | 231.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
