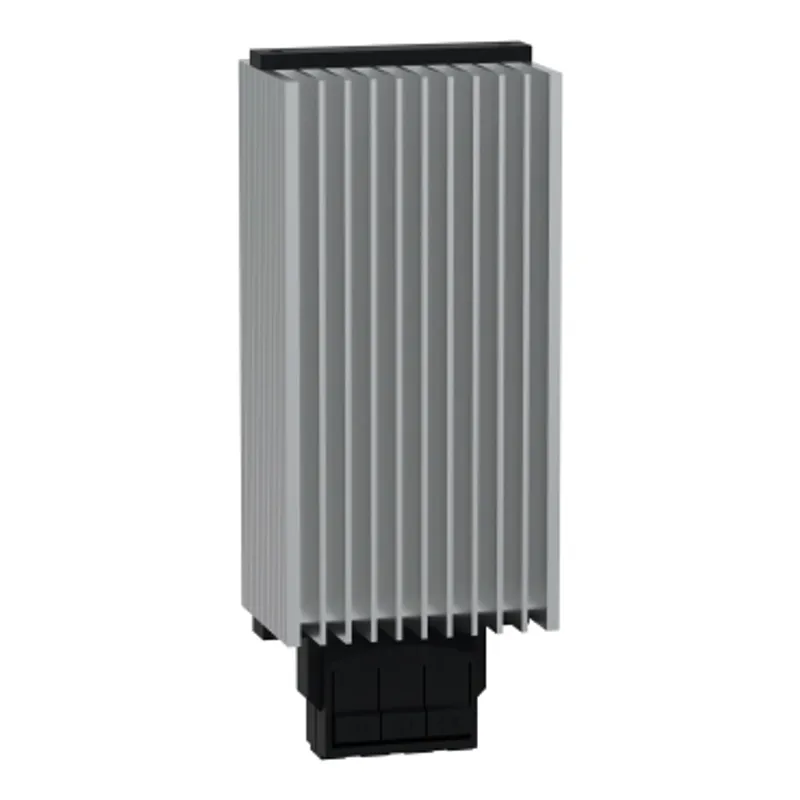

ClimaSys PTC heating resistance 55W, 110-250V
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | ClimaSys CR |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
| Peso | 544 kg |
Spedizione e disponibilità
Quando può essere spedito NSYCR55WU2?
NSYCR55WU2 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare NSYCR55WU2 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per NSYCR55WU2 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per NSYCR55WU2, in base a disponibilità e destinazione.
Resistance heater 55W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body Fixing by clips in vertical operating position The product width is 85mm, height is 200mm and depth is 70mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifiche
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Range compatibility | Prisma P, Prisma G |
| Power range | 55 W |
| Input voltage | 110...250 V AC 50/60 Hz |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium |
| Height | 200 mm |
| Width | 85 mm |
| Depth | 70 mm |
| Condition of use | Air sealed enclosure, Heaters must be installed with a thermal controller, Electrical protection is needed |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 544.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 42.000 cm |
| Package 2 Width | 34.000 cm |
| Package 2 Length | 16.000 cm |
| Package 2 Weight | 9.160 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 480 |
| Package 3 Height | 93.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 288.500 kg |
| Warranty | 18 months |
