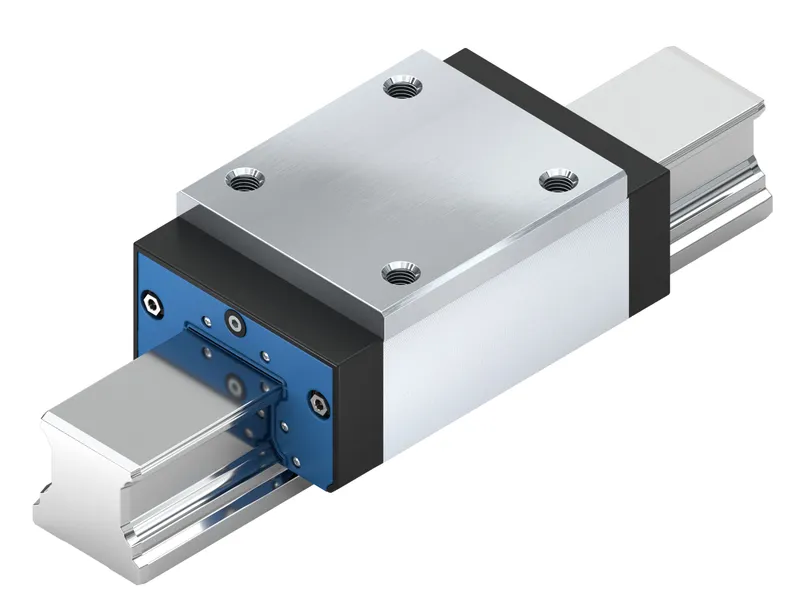

BALL RUNNER BLOCK CARBON STEEL KWC-055-SNH-C0-H-2

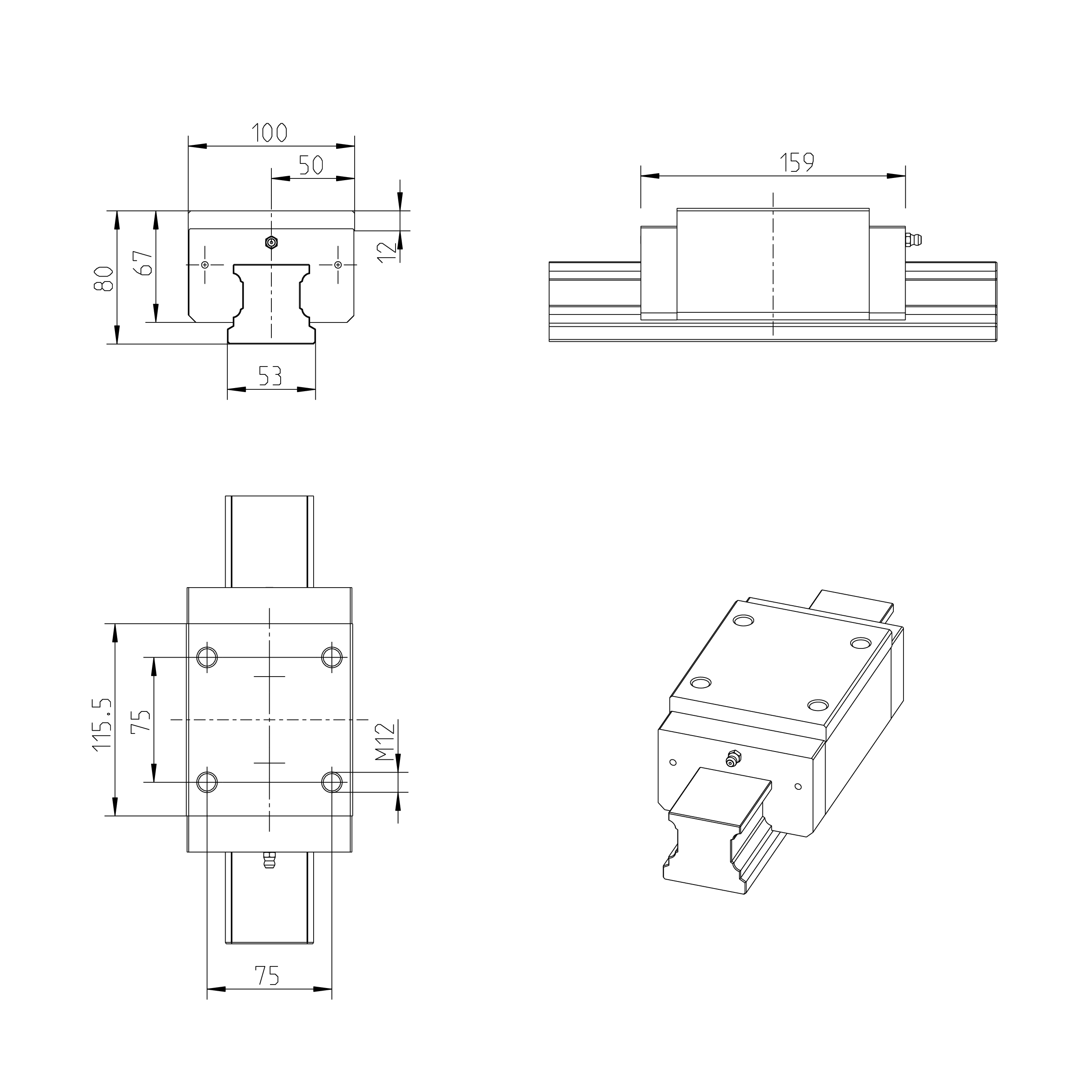

The ball runner block is highly precise and characterized by the following product features:<br>Size 55<br>Format SNH: Width = slimline, length = normal, height = high<br>Runner block body made of unalloyed steel CS<br>Preload class C0: Preload-free<br>Accuracy class H: High<br>Without ball chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>45° angular lube nipples loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 159.0 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy. Area of application: For restricted space in the transverse direction and high rigidity requirements Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity Higher rigidity than SNS High torque load capacity The same high load ratings in all four main directions of loading Low noise level and outstanding travel behavior Long-term lubrication is possible over several years Different preload classes Can be used on all SNS ball guide rails High rigidity in all load directions – permits applications with just one runner block per rail End-face fastening thread for all attachments
