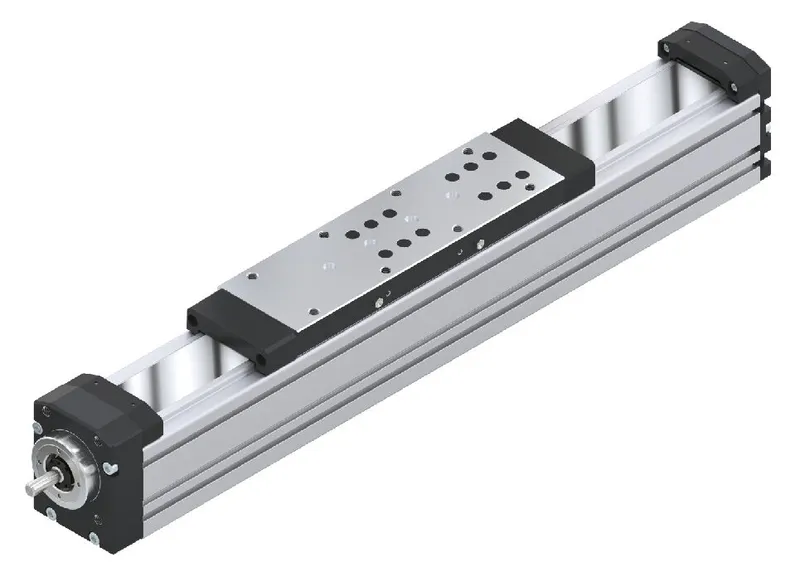

LINEAR MODULE MKK-065-NN-3

Linear modules MKK with ball rail systems and ball screw assembly, size 65, standard version Linear modules with ball rail system and precision ball screw assembly Available in five sizes in lengths up to 5400 mm Repeatability of up to ± 0.005 mm Protection of ball rail system and ball screw assembly by a sealing strip (bellows cover for MKK-165) Screw support for the realization of high speeds on long assembly lengths. Suitable for horizontal installation position (for MKK-080, MKK-110 and MKK-140, product generation 3) The Rexroth ball rail system and Rexroth precision ball screw assembly features one-point lubrication from both sides; central lubrication only suitable for grease lubrication with a manual grease gun Individual lubrication versions for connection to central lubrication systems (only for product generation 3) Rexroth precision ball screw assembly in rolled version with zero-backlash, cylindrical single nut, tolerance grade 7, leads up to 40 mm Fastening of superstructures on the carriage via T-slots or tapped holes Ball guide rail and ball screw with corrosion-resistant coating, corrosion-resistant steel ball runner block (only for product generation 3) Absolute length measuring system IMS-A directly integrated in the guide system (for MKK-080, MKK-110 and MKK-140, product generation 3) Motor attachment via flange and coupling or via timing belt side drive Servo motor with multi-turn encoder, 1-cable or 2-cable connection, with or without holding brake Magnetic field sensors can be mounted directly on the profile body without additional attachments (only for product generation 3) Switch inductive or mechanical, cable duct, socket-plug and extension cable Extensive accessories range of connection and clamping units Name plate with technical parameters for easy commissioning
