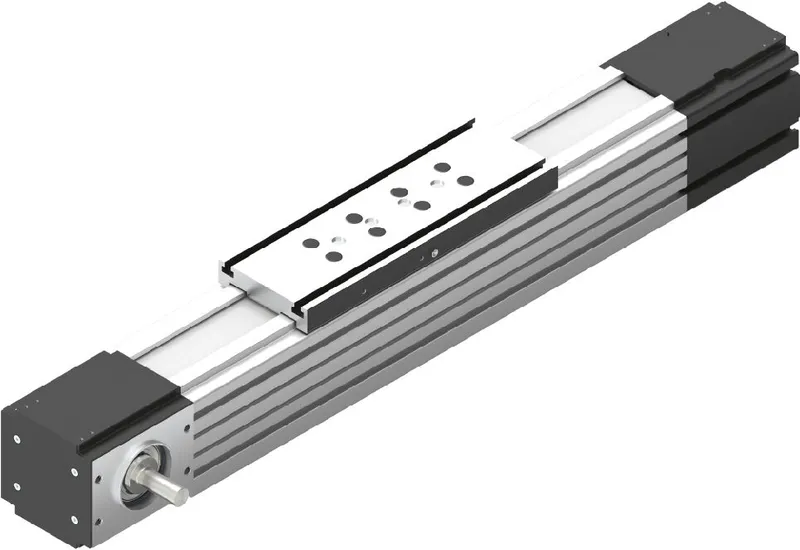

LINEAR MODULE MLR-080-NN-3

Linear modules MLR with cam roller guide and toothed belt drive for high-speed applications Linear module with cam roller guide and toothed belt drive High-performance toothed belt (AT profile) for high travel speeds of up to 10 m/s Extremely compact aluminum profile with integrated Rexroth cam roller guide with internal cam rollers (cam rollers, set to zero-clearance via eccentric shafts) With planetary gears in different gear ratios and versions for optimum adaptation of the external load to the motor inertia. Realization of greater lengths of up to 10000 mm Protection of the guide components by toothed belt Aluminum carriages with T-slots and centering holes and central lubrication point (oil lubrication!) Repeatability of up to ± 0.05 mm Servo motor with multiturn absolute encoder and with or without holding brake Optimal adaptation of the external load to the motor inertia can be realized by means of various reduction ratios. The planetary gear can be integrated in the belt drive pulley or mounted as a gear reducer. This results in a highly dynamic drive. Cover provided by the toothed belt Centering holes also in the frame profile for simple combination with other linear systems and connection elements Standard with integrated solenoid switch for magnetic field sensors Extensive accessories range of connection and clamping units and connecting shafts Name plate with parameters for easy commissioning
