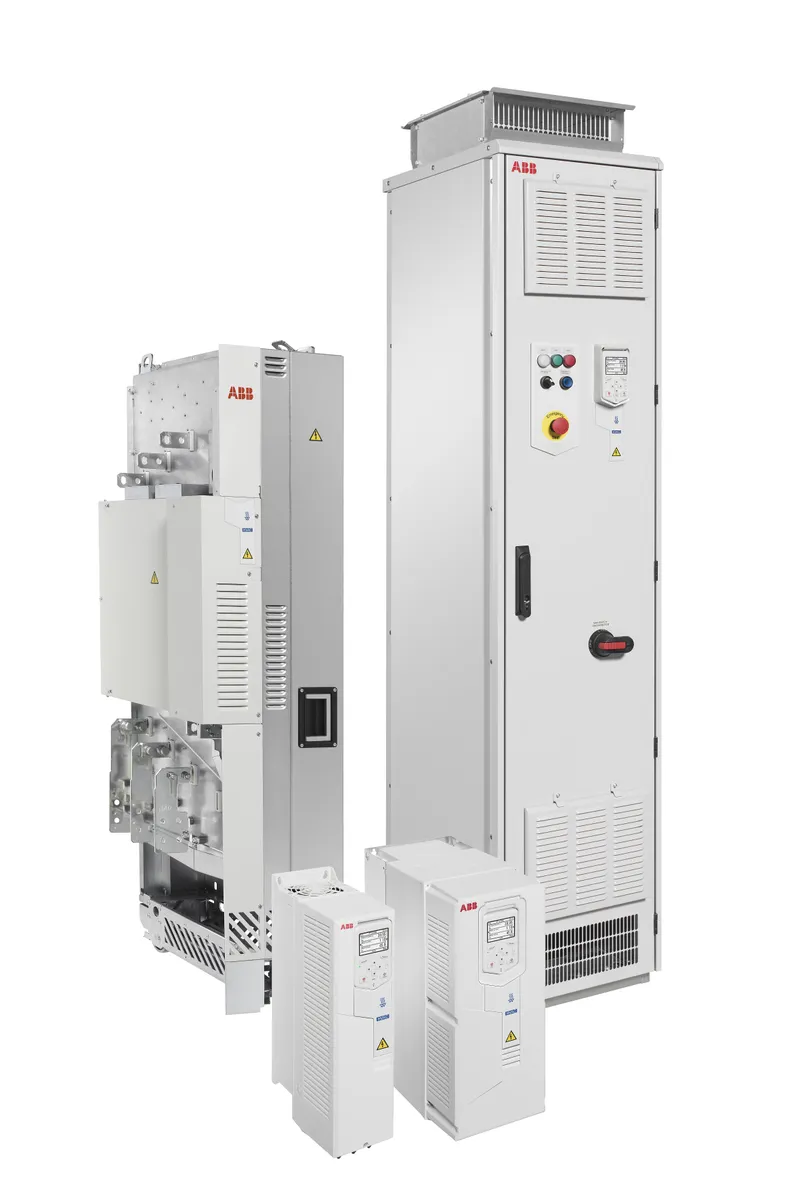

ABB ACH580-01-060A-2+B063+F253
Richiedi un preventivo
In breve
| Disponibilità | Conferma su richiesta |
| Categoria | ACH580-01 |
| Ciclo di vita | active |
| Garanzia | 12 mesi (nuovo) · 3 mesi (usato/rigenerato) |
Spedizione e disponibilità
Quando può essere spedito ACH580-01-060A-2+B063+F253?
ACH580-01-060A-2+B063+F253 viene reperito su richiesta — richiedi un preventivo e ti confermeremo disponibilità e tempi di consegna esatti per questa unità specifica.
Posso ritirare ACH580-01-060A-2+B063+F253 di persona?
Il ritiro presso il nostro magazzino di Groningen, Paesi Bassi, potrebbe essere possibile — contattaci prima dell'ordine per verificare disponibilità e concordare un orario di ritiro.
È disponibile la consegna espressa?
Sì — menzionalo nella richiesta di preventivo per ACH580-01-060A-2+B063+F253 e includeremo le opzioni di spedizione espressa nella nostra risposta.
Il nostro impianto è fermo e ci serve con urgenza: potete aiutarci?
In caso di guasto critico, contattaci direttamente al +31 (0)50-7110348 o a sales@partnerplc.com — valuteremo un corriere in giornata o una consegna dedicata per ACH580-01-060A-2+B063+F253, in base a disponibilità e destinazione.
Designed for harsh locations, the ACH580-01 Type 4X / IP66 drive can withstand unfriendly environments with ease. The drive is resistant to various weather conditions from the snows of winter to the heat of summer. Indoors, it is resistant to water spray, dirt and chemicals and is NSF 169 certified for food splash zones. This drive is ideal for food and beverage, agriculture, livestock applications and for coastal areas. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant.
Specifiche
Ordering
| Customs Tariff Number | 85044080 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH580-01-060A-2+B063+F253 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 58 lb |
| Product Net Depth / Length | 11.4 in |
| Product Net Height | 25.47 in |
| Product Net Width | 10.91 in |
Technical
| Number of Phases | 3-phase |
| Degree of Protection | IP66 |
| Enclosure Type NEMA | Type4X |
| Power Factor | 0.98 |
| Multiple Battery Information | Lithium Coin; CR2032; 220 mAh; 3 V; 1 pc; 3 g V |
| Frequency (f) | 47.5 ... 63 Hz Hz |
| Input Voltage (Uin) | 200 ... 240 V V |
| Mounting Type | Wall-mounted |
| Communication Protocol | BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 60 A A |
| Output Current, Light-Overload Use (ILD) | 59.4 A A |
| Output Current, Heavy-Duty Use (IHD) | 46.2 A A |
| Output Power, Normal Use (Pn) | 15 kW kW |
| Output Power, Light-Overload Use (PLD) | 15 kW kW |
| Output Power, Heavy-Duty Use (PHD) | 11 kW kW |
| Apparent Power Output | 23.9 kV·A A |
| Efficiency Level | IE2 |
| Standby Loss | 15 W W |
| Temperature Rating | Maximum 40 °C, Minimum -25 °C |
Technical UL
| Output Current, Light-Overload Use (UL) | 59 A A |
| Output Power, Light-Overload Use (UL) | 20 Hp |
External Classifications and Standards
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
