Home / I/O systems / X20 System / Analog outputs

Analog outputs Parts

Showing 1–9 of 9 parts
B&R X20AO2437 – I/O module, 2 analog outputs 4 to 20 mAAvailable on requestB&R X20AO2437 – I/O module, 2 analog outputs 4 to 20 mA
MPN: X20AO2437 · B&R
Price on request
Request a quote
B&R X20AO2438 – I/O module, 2 analog outputs 4 to 20 mAAvailable on requestB&R X20AO2438 – I/O module, 2 analog outputs 4 to 20 mA
MPN: X20AO2438 · B&R
Price on request
Request a quote
B&R X20AO2622 – I/O module, 2 analog outputs ±10 V or 0 to 20 mA / 4 to 20…Available on requestB&R X20AO2622 – I/O module, 2 analog outputs ±10 V or 0 to 20 mA / 4 to 20…
MPN: X20AO2622 · B&R
Price on request
Request a quote
B&R X20AO2632-1 – I/O module, 2 analog outputs ±11 V or 0 to 22 mAAvailable on requestB&R X20AO2632-1 – I/O module, 2 analog outputs ±11 V or 0 to 22 mA
MPN: X20AO2632-1 · B&R
Price on request
Request a quote
B&R X20AO2632 – I/O module, 2 analog outputs ±10 V or 0 to 20 mAAvailable on requestB&R X20AO2632 – I/O module, 2 analog outputs ±10 V or 0 to 20 mA
MPN: X20AO2632 · B&R
Price on request
Request a quote
B&R X20AO4622 – I/O module, 4 analog outputs ±10 V or 0 to 20 mA / 4 to 20…Available on requestB&R X20AO4622 – I/O module, 4 analog outputs ±10 V or 0 to 20 mA / 4 to 20…
MPN: X20AO4622 · B&R
Price on request
Request a quote
B&R X20AO4632-1 – I/O module, 4 analog outputs ±11 V or 0 to 22 mAAvailable on requestB&R X20AO4632-1 – I/O module, 4 analog outputs ±11 V or 0 to 22 mA
MPN: X20AO4632-1 · B&R
Price on request
Request a quote

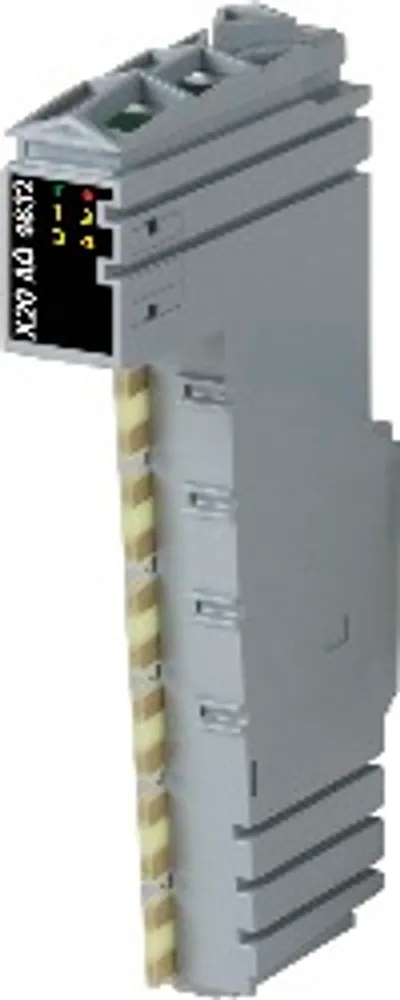

B&R X20AO4632 – I/O module, 4 analog outputs ±10 V or 0 to 20 mAAvailable on requestB&R X20AO4632 – I/O module, 4 analog outputs ±10 V or 0 to 20 mA
MPN: X20AO4632 · B&R
Price on request
Request a quote
B&R X20AO4635 – I/O module, 4 analog outputs ±10 V or 0 to 20 mAAvailable on requestB&R X20AO4635 – I/O module, 4 analog outputs ±10 V or 0 to 20 mA
MPN: X20AO4635 · B&R
Price on request
Request a quote

Compare Analog outputs

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNPower consumption – BusPower consumption – Internal I/OLoad per channel – VoltageError caused by load change – VoltageConversion time
X20AO24370.05 W1.6 W———
X20AO24380.05 W1.65 W———
X20AO26220.01 W1.1 WMax. ±10 mA, load ≥1 kΩMax. 0.11%, from 10 MΩ → 1 kΩ, resistive200 µs for all outputs
X20AO2632-10.01 W1.25 WMax. ±11 mA, load ≥1 kΩMax. 0.1%, from 10 MΩ → 1 kΩ, resistive50 µs for all outputs
X20AO26320.01 W1.1 WMax. ±10 mA, load ≥1 kΩMax. 0.11%, from 10 MΩ → 1 kΩ, resistive50 µs for all outputs
X20AO46220.01 W1.8 W (Rev. ≥J0), 2.2 W (Rev. <J0)Max. ±10 mA, load ≥1 kΩMax. 0.11%, from 10 MΩ → 1 kΩ, resistive300 µs for all outputs
X20AO4632-10.01 W2.15 WMax. ±11 mA, load ≥1 kΩMax. 0.1%, from 10 MΩ → 1 kΩ, resistive50 µs for all outputs
X20AO46320.01 W1.8 W (Rev. ≥J0), 2.2 W (Rev. <J0)Max. ±10 mA, load ≥1 kΩMax. 0.11%, from 10 MΩ → 1 kΩ, resistive50 µs for all outputs
X20AO46350.01 W1.5 WMax. ±10 mA, load ≥ 1 kΩMax. 0.02%, from 10 MΩ → 1 kΩ, resistive50 µs for all outputs

Common to all listed parts

Diagnostics – Module run/errorYes, using LED status indicator and software
Certifications – CEYes
Certifications – UKCAYes
Certifications – ULcULus E115267; Industrial control equipment
Certifications – CCSYes
Certifications – LRENV1
Certifications – KRYes
Certifications – ABSYes
