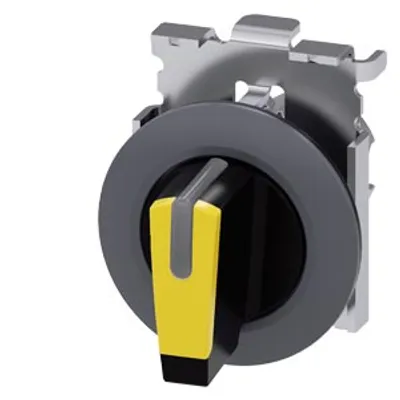

Siemens 3SU1062-2DL30-0AA0-Z Y10 – Selector switch, illuminable, 30 mm, round, Metal, matte

Name: Siemens 3SU1062-2DL30-0AA0-Z Y10 – Selector switch, illuminable, 30 mm, round, Metal, matte
Brand: Siemens
SKU: 3SU1062-2DL30-0AA0-Z Y10

MPN: 3SU1062-2DL30-0AA0-Z Y10 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Actuators and indicators, flat, 30 mm, metal, matte
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.06 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3SU1062-2DL30-0AA0-Z Y10 be shipped?

3SU1062-2DL30-0AA0-Z Y10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SU1062-2DL30-0AA0-Z Y10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SU1062-2DL30-0AA0-Z Y10 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1062-2DL30-0AA0-Z Y10, subject to availability and destination.

Selector switch, illuminable, 30 mm, round, Metal, matte, yellow, selector switch, short, front ring for flush installation, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, with laser labeling, upper case and lower case, always upper case at beginning of line

Specifications

Enclosure

number of command points

Actuator

design of the actuating element	Selector, short
principle of operation of the actuating element	latching, 2x45° (10:30 h/12 h/13:30 h)
product extension optional – light source	Yes
product extension optional – contact module	Yes
color of the actuating element	yellow
material of the actuating element	plastic
shape of the actuating element	Handle
outer diameter of the actuating element	38 mm
number of switching positions	3
actuating angle – clockwise	45°
actuating angle – anticlockwise	45°

Front ring

product component front ring	Yes
design of the front ring	Flat
material of the front ring	Metal, matt
color of the front ring	sand gray

General technical data

protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance – according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
shock resistance – for railway applications according to EN 61373	Category 1, Class B
vibration resistance – according to IEC 60068-2-6	10 ... 500 Hz: 5 g
vibration resistance – for railway applications according to EN 61373	Category 1, Class B
operating frequency maximum	1 800 1/h
mechanical service life (operating cycles) typical	300 000
reference code according to IEC 81346-2	S
Substance Prohibitance (day/month/year)	10/01/2014
SVHC substance name	2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9
Net Weight	67.5 g

Safety related data

proportion of dangerous failures – with low demand rate according to SN 31920	20 %
proportion of dangerous failures – with high demand rate per NC contact according to SN 31920	20 %
proportion of dangerous failures – with high demand rate per NO contact according to SN 31920	50 %
B10 value with high demand rate according to SN 31920	300 000
failure rate [FIT] with low demand rate per NC contact according to SN 31920	100 FIT
T1 value for proof test interval or service life according to IEC 61508	20 a

Ambient conditions

ambient temperature – during operation	-25 ... +70 °C
ambient temperature – during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

Installation/ mounting/ dimensions

height	44.8 mm
width	38 mm
shape of the installation opening	round
mounting diameter	30.5 mm
positive tolerance of installation diameter	0.5 mm
mounting height	22.1 mm
installation width	38 mm
installation depth	32.1 mm
