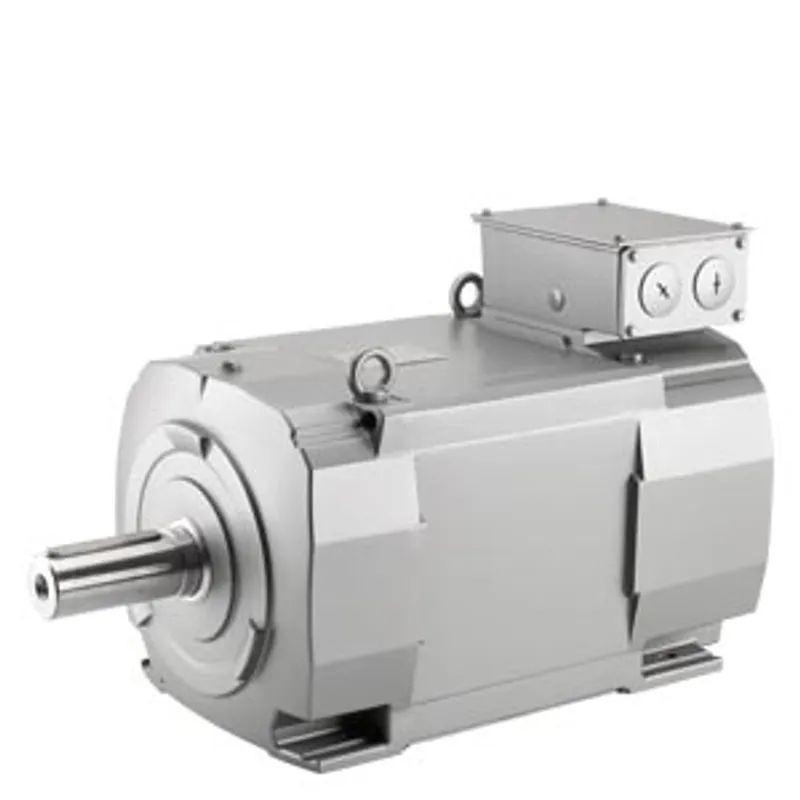

Siemens 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 – SIMOTICS M compact asynchronous motor 700 r/min, 188 kW

Name: Siemens 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 – SIMOTICS M compact asynchronous motor 700 r/min, 188 kW
Brand: Siemens
SKU: 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04

MPN: 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Servo & Motion Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1750 kg

Shipping & availability

When can 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 be shipped?

1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8288-1MC20-9AC2-Z G50+L00+N3M+P04+X04, subject to availability and destination.

SIMOTICS M compact asynchronous motor 700 r/min, 188 kW, 2565 Nm, 400 A, 324 V 800 r/min, 215 kW, 2567 Nm, 405 A, 370 V water cooling degree of protection IP55 incremental encoder sin/cos 1 Vpp 2048 S/R with C and D track with temperature sensor Pt1000 type of construction IM B3 bearing version: standard vibration class: A; shaft and flange accuracy: no G50: measuring nipple for SPM with M8 threaded adapter L00: larger terminal box P04: cable entry plate 4xM63x 1.5 X04: paint finish in RAL 7032 N3M: shaft extension (D90h6xL110mm) customer-specific motor(*)
