Home / Siemens / Siemens 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 – SIMOTICS M compact asynchronous motor 1150 r/min

Available on request

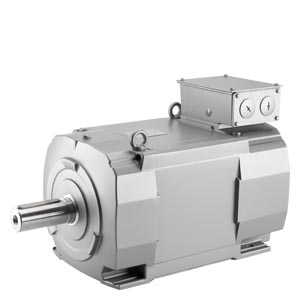

Siemens 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 – SIMOTICS M compact asynchronous motor 1150 r/min

Name: Siemens 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 – SIMOTICS M compact asynchronous motor 1150 r/min
Brand: Siemens
SKU: 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53

MPN: 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Servo & Motion Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1750 kg

Shipping & availability

When can 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 be shipped?

1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1PH8288-1DD23-9BD1-Z A72+G50+K08+N4A+X53, subject to availability and destination.

SIMOTICS M compact asynchronous motor 1150 r/min, 304 kW 2525 Nm, 550 A, 385 V water cooling IP55 degree of protection incremental encoder 22-bit with commutation position bearing version: standard vibration class: R/A; shaft and flange accuracy: R A72: 2 resistance thermometers Pt100 for rolling-contact bearings G50: measuring nipple for SPM K08: encoder connector attachment opposite N4A: special shaft extension plain d95 X53: paint finish in RAL7035 customer-specific motor according to SMR-5-2018
