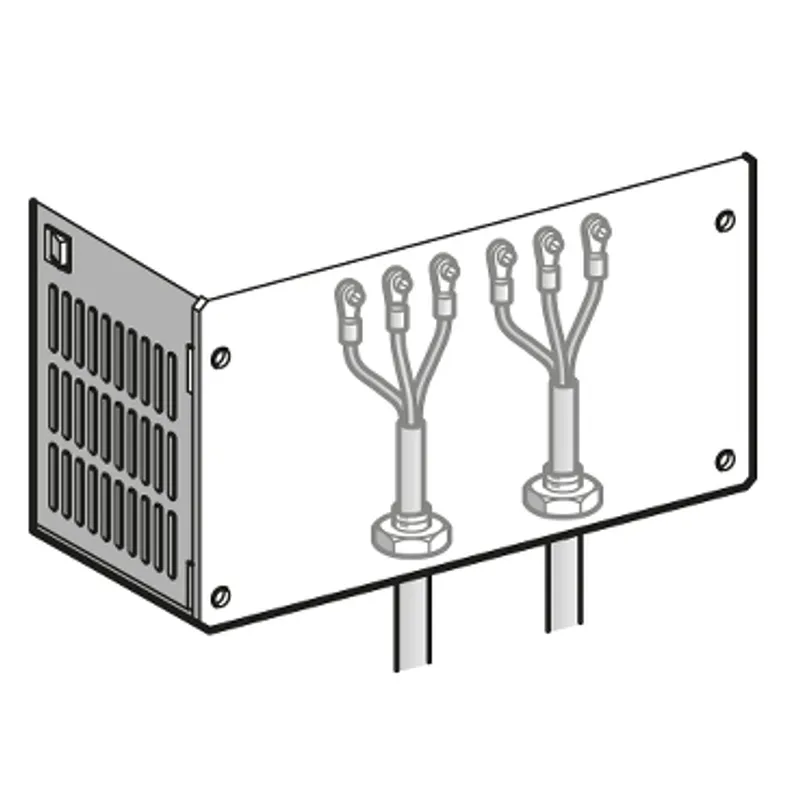

kit for UL type 1 conformity - mounted under variable speed drive
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar 31 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.5 kg |
Shipping & availability
When can VW3A31814 be shipped?
VW3A31814 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A31814 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A31814 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A31814, subject to availability and destination.
This conformity kit is an accessory for variable speed drives of Altivar range. It is a mounting accessory for the variable speed drive. This kit can be used to ensure UL Type 1 conformity when connecting the cables via a tube. The shielding is connected inside the kit. It is mounted at the bottom of the variable speed drive in order to protect the power parts when the drive is mounted directly on a wall outside the enclosure. This kit consists of all the mechanical parts including a pre-cut plate for connecting the tubes, fixing accessories, a manual. It weighs 500g.
Specifications
Specifications
| Range of product | Altivar |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Kit for UL type 1 conformity |
| Product compatibility | ATV212H075M3X, ATV212H075N4, ATV212HU15M3X, ATV212HU15N4, ATV212HU22M3X, ATV212HU22N4, ATV312H037N4, ATV312H055N4, ATV312H075N4, ATV312H075S6, ATV312HU11M2, ATV312HU11N4, ATV312HU15M2, ATV312HU15N4, ATV312HU15S6, ATV312HU22M3 |
| Accessory / separate part destination | Variable speed drive |
| Range compatibility | Altivar 312 Solar, Altivar 312, Altivar 212 |
| Kit composition | Mechanical device |
| Mounting location | Underside of drive |
| Net weight | 0.5 kg |
| Standards | UL Type 1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.800 cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 23.500 cm |
| Package 1 Weight | 556.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.395 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 56 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 45.532 kg |
| Warranty (in months) | 18 |
