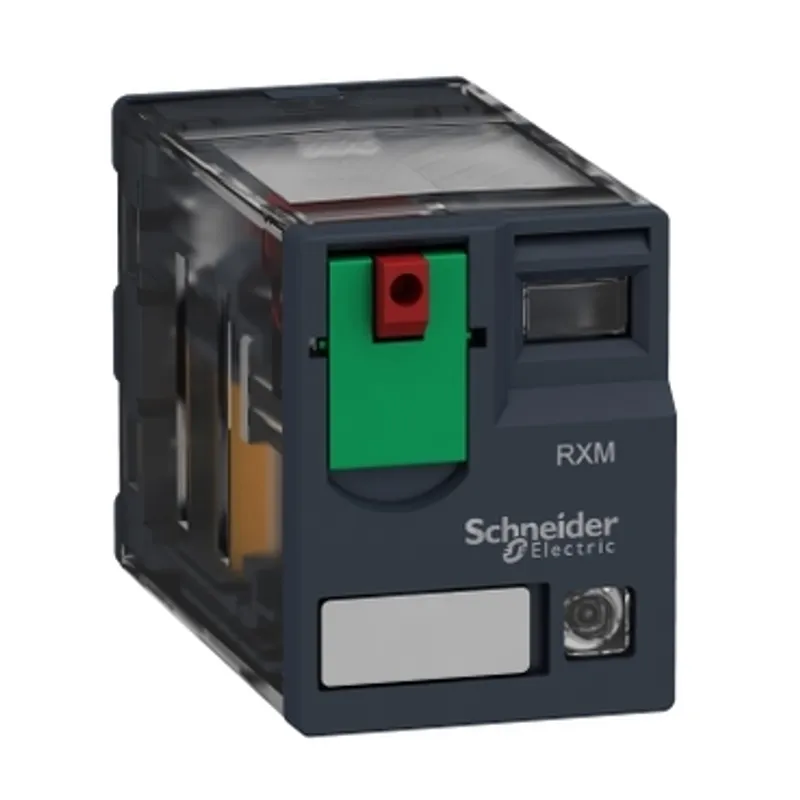

miniature plug in relay, Harmony Electromechanical Relays, 10A, 3CO, with LED, lockable test but to n, 120V AC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
Shipping & availability
When can RXM3AB2F7 be shipped?
RXM3AB2F7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RXM3AB2F7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RXM3AB2F7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXM3AB2F7, subject to availability and destination.
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 3 C/O |
| Status LED | With |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 10 A |
| Continuous output current | 6.7 A |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| [Ie] rated operational current | 10 A at 28 V (DC) NO conforming to IEC, 10 A at 250 V (AC) NO conforming to IEC, 5 A at 28 V (DC) NC conforming to IEC, 5 A at 250 V (AC) NC conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 277 V (AC) conforming to UL |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.2 at 60 Hz |
| Rated operational voltage limits | 96...132 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Average consumption | 1.2 VA at 60 Hz |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.15 Uc |
| Load current | 10 A at 250 V AC, 10 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 2500 VA/280 W |
| Average resistance | 4430 Ohm at 20 °C +/- 15 % |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles |
| Compatibility code | RXM |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net weight | 0.037 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| Product certifications | UL, Lloyd's, CE, CSA, EAC, IECEE CB Scheme |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation, 30 gn for not operating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.500 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 4.500 cm |
| Package 1 Weight | 37.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 10.500 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 396.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.751 kg |
| Warranty (in months) | 18 |
