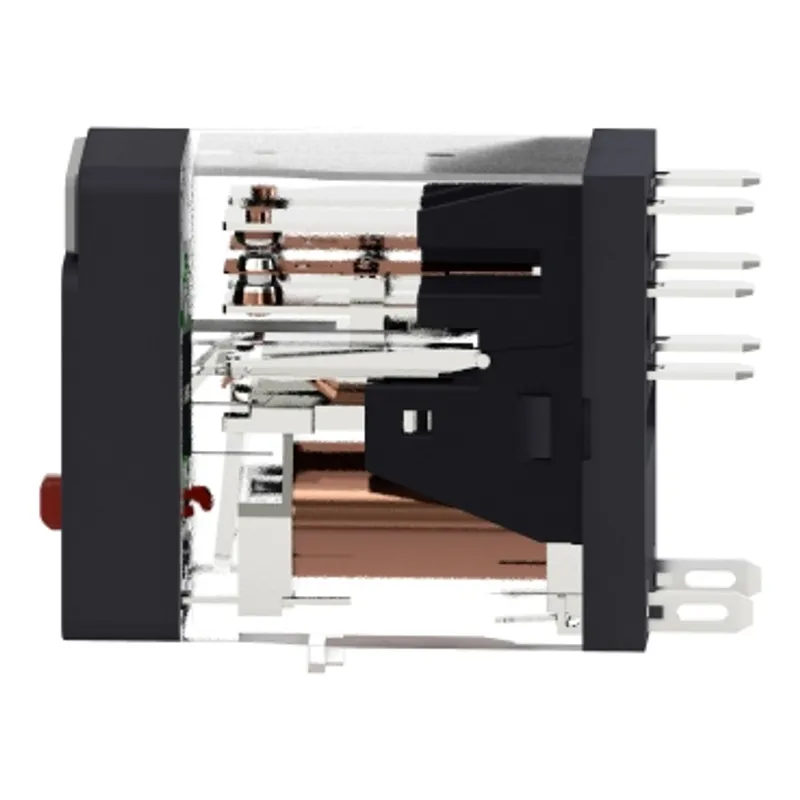

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, lockable test but to n, 220V AC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.02 kg |
Shipping & availability
When can RXG22M7 be shipped?
RXG22M7 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RXG22M7 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RXG22M7 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXG22M7, subject to availability and destination.
"This Harmony RXG plug-in relay socket has a coil control voltage of 220V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RXG series |
| Product or component type | Plug-in relay |
| Relay type | Interface relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 220 V AC |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Local signalling | Flag |
| Status LED | With |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C, 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Removable legend | With |
| Maximum switching voltage | 250 V AC, 30 V DC |
| Drop-out voltage threshold | >= 0.3 Uc AC |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to UL, 5 A at 250 V (AC) conforming to IEC |
| Load current | 5 A at 250 V AC |
| Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA |
| Control type | Lockable test button |
| Average resistance | 21000 Ohm at 23 °C +/- 15 % |
| Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Operating time | 20 ms |
| reset time | 20 ms |
| Dielectric strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation, 1300 V AC terminals and case with basic insulation |
| [Uimp] rated impulse withstand voltage | 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation, 4000 V between poles with basic insulation |
| Overvoltage category | III |
| Protection category | RT I |
| Pollution degree | 2 |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Shape of pin | Flat (faston type) |
| Net weight | 0.02 kg |
| Standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| Product certifications | CSA, UL, EAC, CE, DNV |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP40 |
| Relative humidity | 10…85 % |
| Vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation, 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.100 cm |
| Package 1 Width | 1.400 cm |
| Package 1 Length | 3.100 cm |
| Package 1 Weight | 20.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.500 cm |
| Package 2 Width | 8.200 cm |
| Package 2 Length | 9.100 cm |
| Package 2 Weight | 220.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.677 kg |
| Warranty (in months) | 18 |
