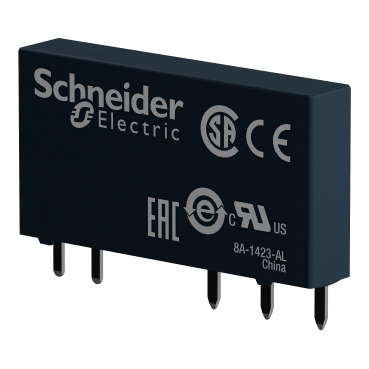

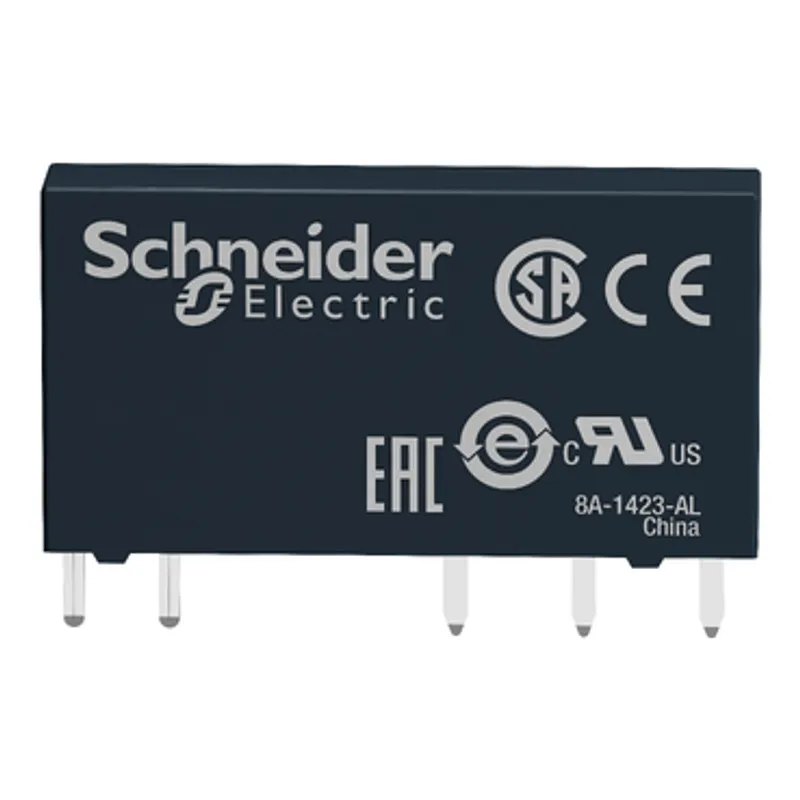

slim interface plug in relay, Harmony Electromechanical Relays, 6A, 1CO, standard, 60V DC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.01 kg |
Shipping & availability
When can RSL1AB4ND be shipped?
RSL1AB4ND is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RSL1AB4ND in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RSL1AB4ND and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RSL1AB4ND, subject to availability and destination.
It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." Status display with LED, clearly signal both in the day and night. "Status display with LED, clearly signal both in the day and night."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RSL series |
| Product or component type | Plug-in relay |
| Relay type | Slim interface relay |
| Contact operation | Standard |
| Contacts type and composition | 1 C/O |
| Control type | Without lockable test button |
| Status LED | Without |
| [Uc] control circuit voltage | 60 V DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC |
| [Ie] rated operational current | 6 A (AC-1/DC-1) conforming to IEC/UL |
| Minimum switching current | 10 mA |
| Minimum switching voltage | 12 V |
| Minimum switching capacity | 120 mW |
| Rated operational voltage limits | 45...84 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 277 V conforming to cUL |
| Operating time | 5 ms reset, 12 ms |
| Maximum switching voltage | 277 V |
| Drop-out voltage threshold | >= 0.05 Uc |
| Load current | 6 A at 250 V AC 0.5 mm mounting distance |
| Maximum switching capacity | 1500 VA, 50 W |
| Terminals description ISO n°1 | (11-12-14)OC, (A1-A2)CO |
| Average resistance | 16600 Ohm at 23 °C +/- 15 % |
| Average coil consumption | 0.21 W |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Safety reliability data | B10d = 60000 |
| Operating rate | <= 360 cycles/hour under load, <= 18000 cycles/hour no-load |
| Protection category | RT III |
| Mounting support | Socket or PCB |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2) |
| Shape of pin | Flat (PCB type) |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 18.5 mm |
| Net weight | 0.0054 kg |
| Dielectric strength | 1000 V AC between contacts, 4000 V AC between coil and contact |
| Vibration resistance | +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -40…55 °C |
| Standards | CSA C22.2 No 14, UL 508, IEC 61810-1 |
| Product certifications | CSA, UL, EAC |
| Ambient air temperature for storage | -40…70 °C |
| Shock resistance | 5 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27, 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.5 cm |
| Package 1 Width | 1.5 cm |
| Package 1 Length | 2.8 cm |
| Package 1 Weight | 5 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.7 cm |
| Package 2 Width | 2.4 cm |
| Package 2 Length | 30.5 cm |
| Package 2 Weight | 69 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 500 |
| Package 3 Height | 15 cm |
| Package 3 Width | 15 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 3.835 kg |
| Warranty (in months) | 18 |
