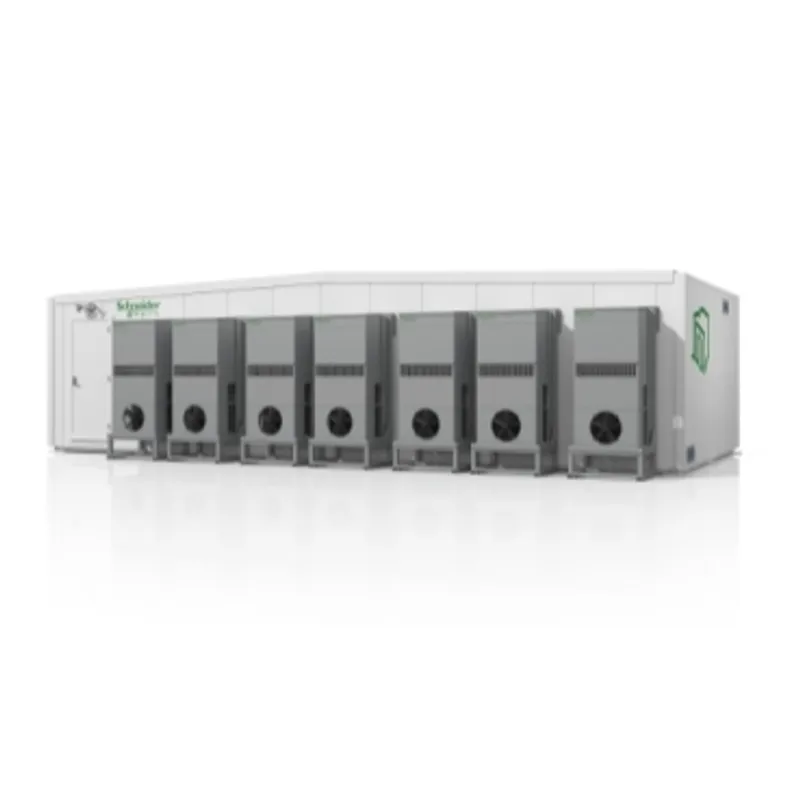

All In One Module Dual Bay160kW 30rack Wall Mount DX 480V
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | All-in-one module |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 5443.1 kg |
Shipping & availability
When can PFMIEC160W1N30C be shipped?
PFMIEC160W1N30C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PFMIEC160W1N30C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PFMIEC160W1N30C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PFMIEC160W1N30C, subject to availability and destination.
Schneider Electric All In One Module Dual Bay160kW 30rack Wall Mount DX 480V, manufacturer part number PFMIEC160W1N30C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Lead time | Special Order - Call for Quoted Lead Times |
| Main Input Voltage | 480 V 3 phases |
| Main Output Voltage | 480 V 3 phases |
| Rated power in W | 160000 W |
| Number of rack unit | 42U |
| Battery type | VRLA |
| Provided equipment | EcoStruxure IT ready (UPS) |
| Number of battery free slots | 0 |
| Number of battery filled slots | 0 |
| Battery power in VAh | 0 VAh |
| Cooling option | Air-cooled self-contained, Pumped refrigerant |
| Colour | White |
| Height | 362 cm |
| Width | 804.4 cm |
| Depth | 1371.6 cm |
| Net weight | 5443.1 kg |
| Mounting mode | Not rack-mountable |
| Number of rack free space | 1260 |
| Network frequency | 60 Hz +/- 0.5 / 1 / 2 / 4 / 6 / 8 % programmable |
| Number of input connectors | 1 hard wire 4-wire (3P + E) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | Unlimited |
| Output frequency | 60 Hz +/- 0.5 / 1 / 2 / 4 / 6 / 8 % programmable |
| Power per rack | 5.3 W |
| PDU rated current | 24 A |
| PDU type | Metered |
| Minimum configurable power in W | 160000 W |
| Wave type | Sine wave |
| Product certifications | cUL listed, UL listed |
| Ambient air temperature for operation | -25…40 °C |
| Operating altitude | 0...1500 ft |
| Warranty (in months) | 12 |
