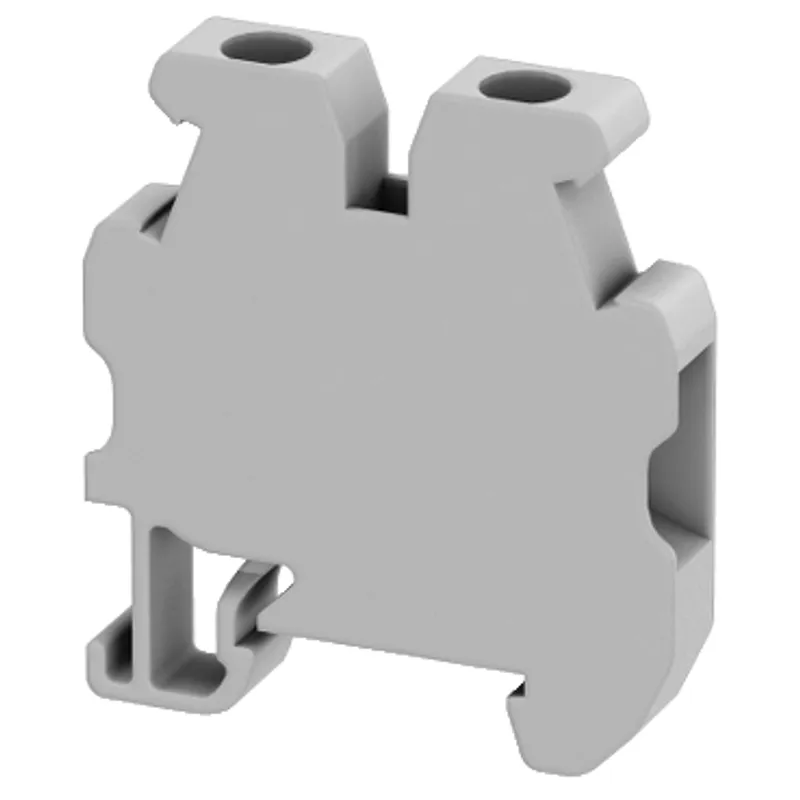

Mini terminal block, Linergy TR, screw type, feed through, 2 points, 4mm², for 15mm din rail, gray, set of 50

Name: Mini terminal block, Linergy TR, screw type, feed through, 2 points, 4mm², for 15mm din rail, gray, set of 50
Brand: Schneider Electric
SKU: NSYTRV42M

MPN: NSYTRV42M · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linergy TR terminals blocks
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	6 kg

Shipping & availability

When can NSYTRV42M be shipped?

NSYTRV42M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTRV42M in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTRV42M and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRV42M, subject to availability and destination.

Specifications

Range	Linergy
Product name	Linergy TR
Product or component type	Mini terminal block
Device short name	TRV
Accessory / separate part category	Connection accessory
Terminal block type	Passthrough
Terminal block level	1
Mounting mode	Clip-on
Nominal cross section	4 mm²
Length	30 mm
Colour	Grey
Quantity per set	Set of 50
Width	6.2 mm
Height	34 mm
Connections - terminals	1 x screw terminal: upstream (M3), 1 x screw terminal: downstream (M3)
number of connections	2
Connection position	Sideways
Number of measurement input	1
Cable cross section	0.2…4 mm², flexible cable with cable end, 0.2…6 mm², solid cable without cable end, 0.2…6 mm², flexible cable without cable end, 0.2…4 mm², solid cable with cable end
Tightening torque	0.6…0.8 N.m
Wire stripping length	8 mm
Tool type	Connection: screwdriver, Disconnection: screwdriver
[Ue] rated operational voltage	600 V CSA, 500 V conforming to EN/IEC 60947-7-1, 600 V UL
[In] rated current	32 A conforming to EN/IEC 60947-7-1, 30 A CSA, 30 A UL
Material	Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring
Dielectric loss	0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant	3.7 at 1 MHz
Resistivity	10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30
Surface resistance	1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30
Creep resistance	500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Range compatibility	PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys
Product compatibility	Spacial enclosures
Product certifications	VDE, CSA, UL
Dielectric strength	1000 V conforming to IEC 60243-1
Ambient air temperature for operation	-40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	3.750 cm
Package 1 Length	4.930 cm
Package 1 Weight	6.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	50
Package 2 Height	4.800 cm
Package 2 Width	7.400 cm
Package 2 Length	14.700 cm
Package 2 Weight	317.000 g
Unit Type of Package 3	S01
Number of Units in Package 3	300
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.108 kg
