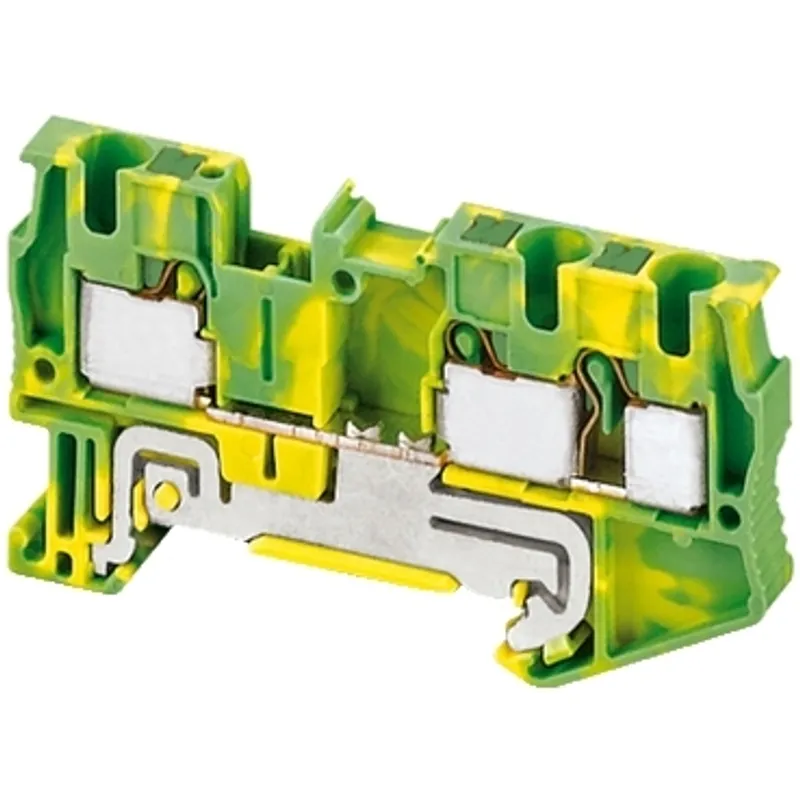

Terminal block, Linergy TR, push-in type, protective earth, 3 points, 4mm², green-yellow, set of 50
MPN: NSYTRP43PE · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Linergy TR terminals blocks |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 14.4 kg |
Shipping & availability
When can NSYTRP43PE be shipped?
NSYTRP43PE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRP43PE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRP43PE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRP43PE, subject to availability and destination.
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRP |
| Terminal block type | Protective earth |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 66.5 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 1 x push-in: upstream, 2 x push-in: downstream |
| number of connections | 3 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.08…6 mm², solid, 0.2…4 mm², flexible with cable end, 0.08…4 mm², flexible without cable end |
| Wire stripping length | 12 mm |
| Tool type | Disconnection: flat screwdriver, Connection: without tool |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 14.4 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | UL, GL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.6 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 6.7 cm |
| Package 1 Weight | 12 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 4.7 cm |
| Package 2 Width | 9.5 cm |
| Package 2 Length | 32 cm |
| Package 2 Weight | 648 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 250 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 3.568 kg |
| Warranty | 18 months |
