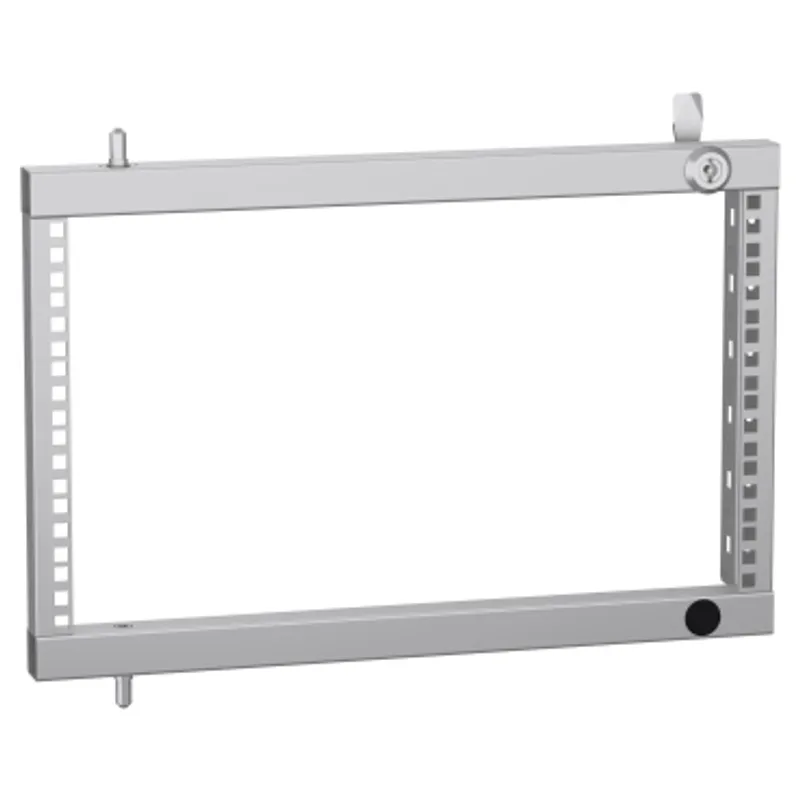

PanelSeT SF/SM partial 19" swing rack - 355 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT for IT network and server cabinets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.52 kg |
Shipping & availability
When can NSYRSWP6 be shipped?
NSYRSWP6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSWP6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSWP6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSWP6, subject to availability and destination.
Partial swing racks allow mounting rackable electronic equipment with 19" server racks in Spacial SF and Spacial SM enclosures The width is 600mm The height is 355mm The depth is 335mm Supports mounting of 6 units Depth adjustable in steps of 25mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 355 mm |
| Rack type | Swing |
| Mounting location | Front of enclosure |
| Mounting support | Partial 19" swing rack support |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 rack |
| Number of units 19" | 6 |
| Rack coverage | Partial |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Lock 5 mm double bar |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 2 kg per unit |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 355 mm |
| Width | 600 mm, 800 mm |
| Depth | 335 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 34.500 cm |
| Package 1 Length | 52.000 cm |
| Package 1 Weight | 2.522 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 75.000 kg |
| Warranty | 18 months |
