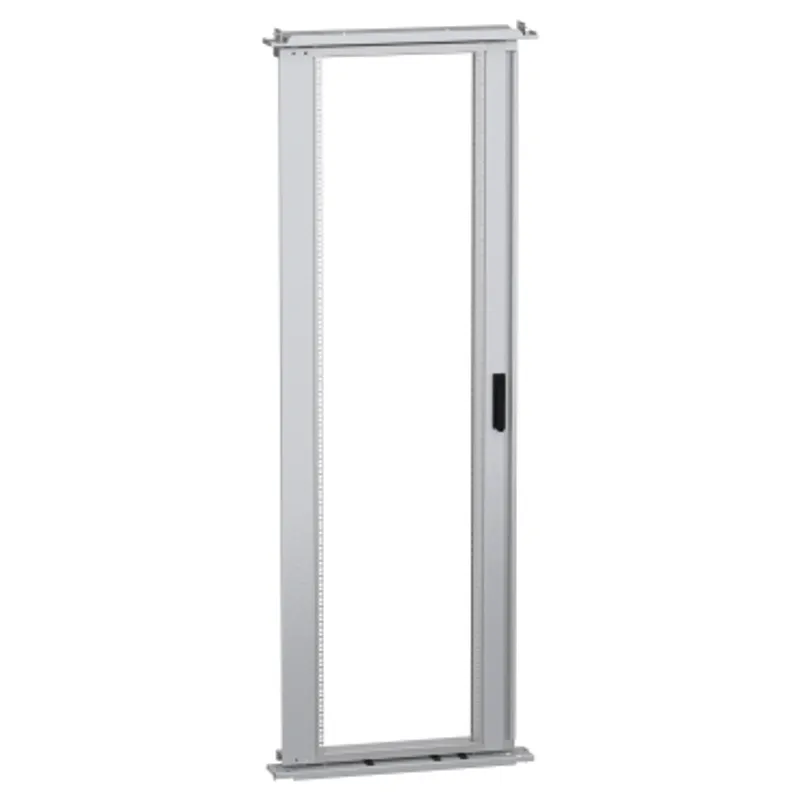

PanelSeT SF 19" swing rack - 2200x800 mm - 45 modules
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT for IT network and server cabinets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 29 kg |
Shipping & availability
When can NSYRSWC45 be shipped?
NSYRSWC45 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSWC45 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSWC45 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSWC45, subject to availability and destination.
Swing centred racks allow mounting rackable electronic equipment with 19" server racks in Spacial SF and Spacial SM enclosures The width is 800mm The height is 2200mm The depth is 2101mm Supports mounting of 45 units Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 2 800mm swing rack supports, 1 19" swing rack and 2 side plates with ball-lock handles
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 2200 mm |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 800 mm swing rack supports, 1 19" swing rack, 2 side plates with ball-lock handle |
| Quantity per set | Set of 1 |
| Number of units 19" | 45 |
| Rack coverage | Complete |
| Rack position | Centered |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Handle with ball lock |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Colour | Side plate: grey (RAL 7035) |
| Permanent permissible load | 3.75 kg per unit with a maximum of 150 kg |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 2200 mm |
| Width | 800 mm |
| Depth | 2101 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.000 cm |
| Package 1 Width | 74.000 cm |
| Package 1 Length | 212.000 cm |
| Package 1 Weight | 29.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 80.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 212.000 cm |
| Package 2 Weight | 265.000 kg |
| Warranty | 18 months |
