variable speed drive, Altivar Process ATV900, ATV950, 15kW, 400 to 480V, with braking unit, switch, IP55

Name: variable speed drive, Altivar Process ATV900, ATV950, 15kW, 400 to 480V, with braking unit, switch, IP55
Brand: Schneider Electric
SKU: ATV950D15N4E

MPN: ATV950D15N4E · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Altivar Process ATV900
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	19.6 kg

Shipping & availability

When can ATV950D15N4E be shipped?

ATV950D15N4E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ATV950D15N4E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ATV950D15N4E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATV950D15N4E, subject to availability and destination.

In the following market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater.

Specifications

Range of product	Altivar Process ATV900
Product specific application	Process for industrial
Product or component type	Variable speed drive
Variant	With braking chopper, With load break switch
Device application	Industrial application
Product destination	Synchronous motors, Asynchronous motors
Network number of phases	3 phases
Mounting mode	Wall mount
Continuous output current	31.7 A at 4 kHz for normal duty, 23.5 A at 4 kHz for heavy duty
Communication port protocol	Modbus serial, EtherNet/IP, Modbus TCP
option module	Slot A: communication module for Profibus DP V1, Slot A: communication module for PROFINET, Slot A: communication module for DeviceNet, Slot A: communication module for EtherCAT, Slot A: communication module for CANopen daisy chain RJ45, Slot A: communication module for CANopen SUB-D 9, Slot A: communication module for CANopen screw terminals, Slot A/slot B/slot C: digital and analog I/O extension module, Slot A/slot B/slot C: output relay extension module, Slot B: 5/12 V digital encoder interface module, Slot B: analog encoder interface module, Slot B: resolver encoder interface module, communication module for Ethernet Powerlink
[Us] rated supply voltage	380...480 V
Relative symmetric mains voltage tolerance	10 %
Relative symmetric network frequency tolerance	5 %
nominal output current	31.7 A
Motor power kW	15.0 kW for normal duty, 11.0 kW for heavy duty
EMC filter	Integrated, With EMC plate option
IP degree of protection	IP55
Degree of protection	UL type 1
Electrical connection	Control: screw terminal 0.5...1.5 mm², Line side: screw terminal 10...16 mm², Motor: screw terminal 10...16 mm², DC bus: screw terminal 10...16 mm²
Transmission rate	10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
Exchange mode	Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Data format	8 bits, configurable odd, even or no parity
Type of polarization	No impedance
Number of addresses	1…247
Supply	External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection, Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection
Local signalling	Local diagnostic: 3 LED (mono/dual colour), Embedded communication status: 5 LED (dual colour), Communication module status: 2 LED (dual colour), Presence of voltage: 1 LED (red)
Input compatibility	DI1...DI8: discrete input level 1 PLC conforming to IEC 61131-2, DI7, DI8: pulse input level 1 PLC conforming to IEC 65A-68, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2
Discrete input logic	Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1), Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), Positive logic (source) (DI7, DI8), < 0.6 V (state 0), > 2.5 V (state 1), Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)
Sampling duration	2 ms +/- 0.5 ms (DI1...DI8) - discrete input, 5 ms +/- 1 ms (DI7, DI8) - pulse input, 1 ms +/- 1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (AQ1, AQ2) - analog output
Accuracy	+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Linearity error	AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output
Refresh time	Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Isolation	Between power and control terminals
Discrete input number	10
Discrete input type	DI1...DI8 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm, DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V), STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm
Discrete output number	2
Discrete output type	Logic output DQ+ 0…1 kHz <= 30 V DC 100 mA, Programmable as pulse output DQ+ 0…30 kHz <= 30 V DC 20 mA, Logic output DQ- 0…1 kHz <= 30 V DC 100 mA
Analogue input number	3
Analogue input type	AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits
Analogue output number	2
Analogue output type	Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits, Software-configurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits
Relay output number	3
Relay output type	Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, Configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles, Configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles
Maximum switching current	Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC, Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC, Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 250 V AC, Relay output R2, R3 on resistive load, cos phi = 1: 5 A at 30 V DC, Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, Relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Minimum switching current	Relay output R1, R2, R3: 5 mA at 24 V DC
Physical interface	Ethernet, 2-wire RS 485
Connector type	2 RJ45, 1 RJ45
Method of access	Slave Modbus TCP
Transmission frame	RTU
4 quadrant operation possible	True
Asynchronous motor control profile	Variable torque standard, Optimized torque mode, Constant torque standard
Synchronous motor control profile	Permanent magnet motor, Synchronous reluctance motor
Maximum output frequency	599 Hz
Acceleration and deceleration ramps	Linear adjustable separately from 0.01...9999 s
Motor slip compensation	Adjustable, Not available in permanent magnet motor law, Automatic whatever the load, Can be suppressed
Switching frequency	2...16 kHz adjustable, 4...16 kHz with derating factor
Nominal switching frequency	4 kHz
Braking to standstill	By DC injection
Brake chopper integrated	True
Line current	27.0 A at 380 V (normal duty), 20.6 A at 380 V (heavy duty), 23.3 A at 480 V (normal duty), 18.1 A at 480 V (heavy duty)
Maximum input current	27.0 A
Maximum output voltage	480.0 V
Apparent power	19.4 kVA at 480 V (normal duty), 15 kVA at 480 V (heavy duty)
Maximum transient current	38 A during 60 s (normal duty), 35.3 A during 60 s (heavy duty)
Network frequency	50...60 Hz
Prospective line Isc	50 kA
Base load current at high overload	23.5 A
Base load current at low overload	31.7 A
With safety function Safely Limited Speed (SLS)	True
With safety function Safe brake management (SBC/SBT)	True
With safety function Safe Operating Stop (SOS)	False
With safety function Safe Position (SP)	False
With safety function Safe programmable logic	False
With safety function Safe Speed Monitor (SSM)	False
With safety function Safe Stop 1 (SS1)	True
With sft fct Safe Stop 2 (SS2)	False
With safety function Safe torque off (STO)	True
With safety function Safely Limited Position (SLP)	False
With safety function Safe Direction (SDI)	False
Protection type	Thermal protection: motor, Safe torque off: motor, Motor phase break: motor, Thermal protection: drive, Safe torque off: drive, Overheating: drive, Overcurrent between output phases and earth: drive, Overload of output voltage: drive, Short-circuit protection: drive, Motor phase break: drive, Overvoltages on the DC bus: drive, Line supply overvoltage: drive, Line supply undervoltage: drive, Line supply phase loss: drive, Overspeed: drive, Break on the control circuit: drive
Quantity per set	1

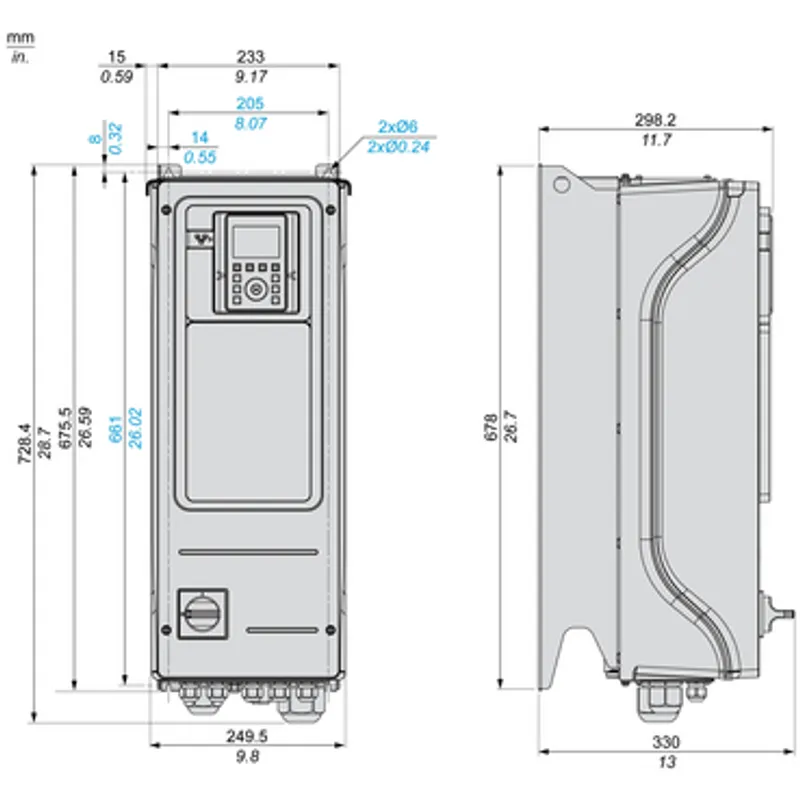

Width	264 mm
Height	678 mm
Depth	330 mm
Net weight	19.6 kg
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Noise level	53.7 dB
Vibration resistance	1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Environmental characteristic	Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
Relative humidity	5…95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for operation	-15…40 °C (without derating), 40…50 °C (with derating factor)
Operating altitude	<= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m
Operating position	Vertical +/- 10 degree
Product certifications	TÜV
Marking	CE
Standards	UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Maximum THDI	<48 % from 80...100 % of load conforming to IEC 61000-3-12
Assembly style	Enclosed
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation)	Class 3C3 according to IEC 60721-3-3, Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Permitted relative humidity (during operation)	Class 3K5 according to EN 60721-3
Overvoltage category	III
Regulation loop	Adjustable PID regulator
Pollution degree	2
Ambient air transport temperature	-40…70 °C
Ambient air temperature for storage	-40…70 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	54.0 cm
Package 1 Width	39.0 cm
Package 1 Length	80.0 cm
Package 1 Weight	29.2 kg
Warranty (in months)	18
